Why Choose SANKEN for Your Glass Silk Screen Printing Production Line?
Single-Colour and Multi-Colour Configurations
Single-colour, four-colour and five-colour line layouts are available as planning references. The number of printing stations and their arrangement are selected according to the required pattern, colour sequence and production capacity.

Servo-Controlled Printing
Servo control manages the printing squeegee and ink-return movements. PLC and touch-screen controls allow operators to manage line settings, with programmed protection functions for equipment operation.

Glass Positioning and Conveying
Glass positioning mechanisms and synchronized anti-slip conveyor belts support glass transfer and alignment through the printing process.

Screen Preparation Equipment
The supporting equipment covers mesh stretching, emulsion coating, exposure, developing and screen drying. This allows screen preparation requirements to be considered alongside the printing line.



Glass Silk Screen Printing Process

Glass Printing Workflow
Prepared Glass → Glass Positioning → Screen Printing → Drying or Curing as Required → Inspection

This is an outline for line planning. Glass preparation, ink drying or curing, and any subsequent heat treatment must be matched to the selected ink system and finished product. These stages do not imply that all equipment is included in every configuration.



Screen Preparation Workflow
Mesh Stretching & Frame Bonding → Emulsion Coating → Screen Drying → Exposure → Developing → Final Screen Drying

Screen preparation is a separate supporting process. The horizontal dryer is used after emulsion coating; the vertical dryer is used after screen cleaning and developing.




Glass Screen Printing Line Configurations
The printing line is configured around glass size, artwork, the number of colours and the required output. Multi-colour projects also require the colour sequence, alignment and drying or curing arrangements to be defined before the layout is finalized.


Single-colour configuration for a one-colour printing requirement.
Four-colour and five-colour configurations for projects requiring multiple colour stages.
PLC and touch-screen operation with servo-controlled printing movements.
Conveying and positioning equipment selected for the required glass format.



Screen Preparation and Supporting Equipment
Automatic Screen Stretching Machine
PLC and touch-screen controls manage mesh clamping and tension adjustment. After the mesh reaches the required tension, pneumatic lifting brings the screen frame into contact with the mesh for adhesive bonding.






Automatic Screen Stretching Machine



Screen Positioning Table




Automatic Screen Coating Machine
Coating settings include speed, single-sided or double-sided application and repeated passes. The described configuration allows 1–20 coating passes, with a constant-pressure system, pneumatic frame clamping and automatic stop after the preset cycle.






Automatic Screen Coating Machine



Screen Coating Machine — Additional View




Horizontal Screen Drying Oven
The horizontal drawer-type oven dries screens after photosensitive emulsion coating. Screens are placed with the printing surface facing upward. Temperature control and hot-air circulation support the drying process.






Horizontal Screen Drying Oven



Horizontal Screen Drying Oven — Additional View




Screen Exposure Machine
Horizontal and vertical exposure configurations are described in the equipment range. The control system stores exposure settings and completes vacuum, exposure and venting stages automatically. Light-controlled exposure and an oil-free vacuum pump support the process.






Vertical Screen Exposure Machine



Vertical Screen Exposure Machine — Additional View




Screen Developing Machine
The PLC and touch-screen-controlled developing machine uses front and rear spray systems to wash out the exposed screen. Features include stainless steel construction, an observation window, staggered nozzles, automatic water replenishment and a blower drying device.






Screen Developing Machine



Screen Developing Machine — Additional View





Screen Developing Machine — Equipment View





Vertical Screen Drying Oven
The vertical oven dries screens after cleaning and developing. Its vertical loading arrangement is intended to save floor space. Stainless steel internal panels and heaters, hot-air circulation and an insulated enclosure support screen drying.






Vertical Screen Drying Oven



Vertical Screen Drying Oven — Additional View






Glass Screen Printing Production Line Layouts
These drawings show single-colour, four-colour and five-colour arrangements. Final layouts are planned around glass dimensions, colour requirements, production flow and available factory space.


Single-Colour Glass Screen Printing Line

Reference layout; equipment dimensions and station arrangement are confirmed for each project.



Four-Colour Glass Screen Printing Line

Reference layout; equipment dimensions and station arrangement are confirmed for each project.



Five-Colour Glass Screen Printing Line

Reference layout; equipment dimensions and station arrangement are confirmed for each project.



Five-Colour Printing Line — Additional Layout

Reference layout; equipment dimensions and station arrangement are confirmed for each project.




Screen-Printed Glass Applications
Glass screen printing can be configured for architectural and office glass, kitchen and furniture glass, appliance panels, decorative glass and automotive windshields. Suitability depends on the glass specifications, artwork, ink system and subsequent processing requirements.






Screen-Printed Glass — Example 1



Screen-Printed Glass — Example 2





Screen-Printed Glass — Example 3



Screen-Printed Glass — Example 4






Glass Screen Printing Line Planning & Project Support

SANKEN has been exporting glass-processing machinery since 2002. For glass screen printing projects, we support equipment configuration, production-line planning, factory layout, equipment manufacturing, pre-shipment inspection, installation, commissioning, operator training and after-sales technical support.

To discuss a suitable configuration, provide your glass dimensions and thickness, print area, artwork, number of colours, ink system, required output, existing screen preparation equipment and factory dimensions. Drying, curing and any downstream heat-treatment requirements should also be confirmed during planning.

Why Choose SANKEN for Your Automotive Glass Production Line?
SANKEN provides automotive glass production line solutions for windshields, side windows and rear windows. Equipment options include automatic glass pre-processing, windshield bending, curved glass washing, vacuum pre-lamination and bending tempering, with configurations planned around your glass products, production capacity and factory layout.

Equipment for Different Automotive Glass Products
Select equipment for laminated windshield production or bent tempered side and rear window glass. The equipment combination depends on the glass product and its processing requirements.

Automatic Pre-processing and Process Control
Automatic loading, CNC cutting, breaking, edging and drilling can be combined in a pre-processing line. PLC, touch-screen and servo controls support the functions of individual machines, according to the selected configuration.

Production-Line Planning and Project Support
SANKEN supports equipment configuration and factory layout planning, followed by installation, commissioning, operator training and after-sales technical support.




Automotive Glass Production Process
The equipment below serves different production routes. Windshield bending and vacuum pre-lamination belong to the laminated windshield route, while bending tempering is used for the tempered side and rear window products described here. These are main process stages; the final sequence and any additional equipment are defined for each project.


Laminated Windshield Glass
Glass pre-processing → Windshield bending → Curved glass washing and drying → Glass and interlayer assembly → Vacuum pre-lamination → Autoclave processing

Vacuum pre-lamination prepares the assembled glass for subsequent autoclave processing. Autoclave capacity and compatibility with the windshield process should be confirmed as part of the equipment configuration.



Bent Tempered Side and Rear Window Glass
Glass pre-processing → Washing and drying → Bending and tempering → Finished glass inspection

Drilling and other product-specific operations are included where required by the glass design. The production route should be confirmed against the intended finished product.





Automatic Automotive Glass Pre-processing Line
The shuttle-type pre-processing line combines an automatic loading table, positioning table, CNC cutting and automatic breaking machine, CNC edging machine, automatic drilling machine, conveying tables and a shuttle transfer system.


Servo-controlled cutting, breaking, edging, drilling and shuttle movements.
Automatic transfer between the configured processing stations.
Connection to a glass washing machine or other downstream equipment, according to the line arrangement.






Automatic automotive glass pre-processing line — 1



Automatic automotive glass pre-processing line — 2





Automatic automotive glass pre-processing line — 3



Automatic automotive glass pre-processing line — 4





Automatic automotive glass pre-processing line — 5



Automatic automotive glass pre-processing line — 6







Automotive Windshield Glass Bending Furnace
The windshield bending furnace uses PLC and computer control, with an operating display for process monitoring and fault records for troubleshooting. Mould positioning on each trolley helps maintain alignment during transfer.


Controlled heating and a continuous cooling and annealing section.
Variable-frequency blowers for cooling airflow adjustment.
Fault alarms, fault recording and multiple limit protections.
A circulating trolley conveying system with upper-level entry and lower-level exit.

The original equipment configuration uses 24 trolleys. Confirm the trolley arrangement and furnace configuration for the intended windshield size and production capacity.






Automotive windshield glass bending furnace — 1



Automotive windshield glass bending furnace — 2





Automotive windshield glass bending furnace — 3



Automotive windshield glass bending furnace — 4







Automotive Curved Glass Washing Machine
The curved glass washing machine is designed for automotive windshields, side windows, rear windows and roof glass. It combines pre-spraying, heated high-pressure washing, pure-water rinsing and air-knife drying, with PLC and touch-screen control.


Stainless steel covers and water tank.
Variable-frequency blower control, adjusted according to glass detection.
Glass detection to switch pure-water spraying on and off.
Automatic pump shutdown after an extended period without incoming glass.
Water and air filter blockage alarms, plus motor fault detection and shutdown.
Automatic water refilling and water heating control.






Automotive curved glass washing machine — 1



Automotive curved glass washing machine — 2





Automotive curved glass washing machine — 3








Automotive Vacuum Pre-lamination Line
The vacuum pre-lamination line includes conveying equipment for the clean assembly room, a vacuum pre-lamination furnace, an unloading conveyor and a vacuum-ring return conveyor. PLC and touch-screen controls manage line operation.

This is a preparation stage before autoclave processing in laminated windshield production. The assembly area, vacuum system and downstream autoclave requirements should be considered together during line planning.






Automotive vacuum pre-lamination line — 1



Automotive vacuum pre-lamination line — 2





Automotive vacuum pre-lamination line — 3



Automotive vacuum pre-lamination line — 4





Automotive vacuum pre-lamination line — 5



Automotive vacuum pre-lamination line — 6





Automotive vacuum pre-lamination line — 7








Automotive Glass Bending and Tempering Furnace
The bending and tempering equipment described here is intended for automotive side window and rear window glass. Its controls include variable-frequency blower control, temperature control and servo-controlled movements in the bending section.

Side Window Glass
Upper and lower conveying rollers use synchronized forming movements, with computer adjustment of the bending curve.

Rear Window Glass
Heated glass is formed using a shaping mould and an upper pressing die with a lifting mechanism. Transmission and lifting movements in the forming section use servo control.

The forming arrangement is selected according to the product geometry and process requirements.






Automotive glass bending and tempering furnace — 1



Automotive glass bending and tempering furnace — 2





Automotive glass bending and tempering furnace — 3








Finished Automotive Glass
The following images show the finished glass examples supplied with this solution. Discuss the required glass shape, dimensions and construction with SANKEN when selecting the processing equipment.






Finished automotive glass example — 1



Finished automotive glass example — 2





Finished automotive glass example — 3



Finished automotive glass example — 4





Finished automotive glass example — 5



Finished automotive glass example — 6







Automotive Glass Production Line Planning & Project Support

SANKEN has been exporting glass-processing machinery since 2002. Project support covers equipment configuration, production-line planning, factory layout, manufacturing, pre-shipment inspection, installation, commissioning, operator training and after-sales technical support.

Information for Your Equipment Proposal

Glass product: windshield, side window or rear window.
Glass dimensions, thickness, shape and required construction.
Target production capacity and preferred level of automation.
Available factory space, utilities and existing equipment.

Send your product drawings and production requirements to SANKEN to discuss a suitable equipment configuration and line arrangement.

At the test site, the technicians started the joint production line. After the original glass was processed by the high-precision edge grinding machine, it was seamlessly connected to the high-pressure air cleaning machine through the intelligent conveyor belt, without any manual intervention.



1.Pioneered positioning mode: Non touch glass after positioning probe switch. Longer life, more convenient operation and maintenance;

2.Patent structure, processing glass thickness 3~12mm;

3.All imported servo electronic, to make the equipment more stable and reliable;

4.Transmission using a toothed chain transmission, more stable, more static;

5.Opening & Closing using rack drive, speed up to 40 meters per minute, more accurate, more durable;

6.Hemline grinding function.

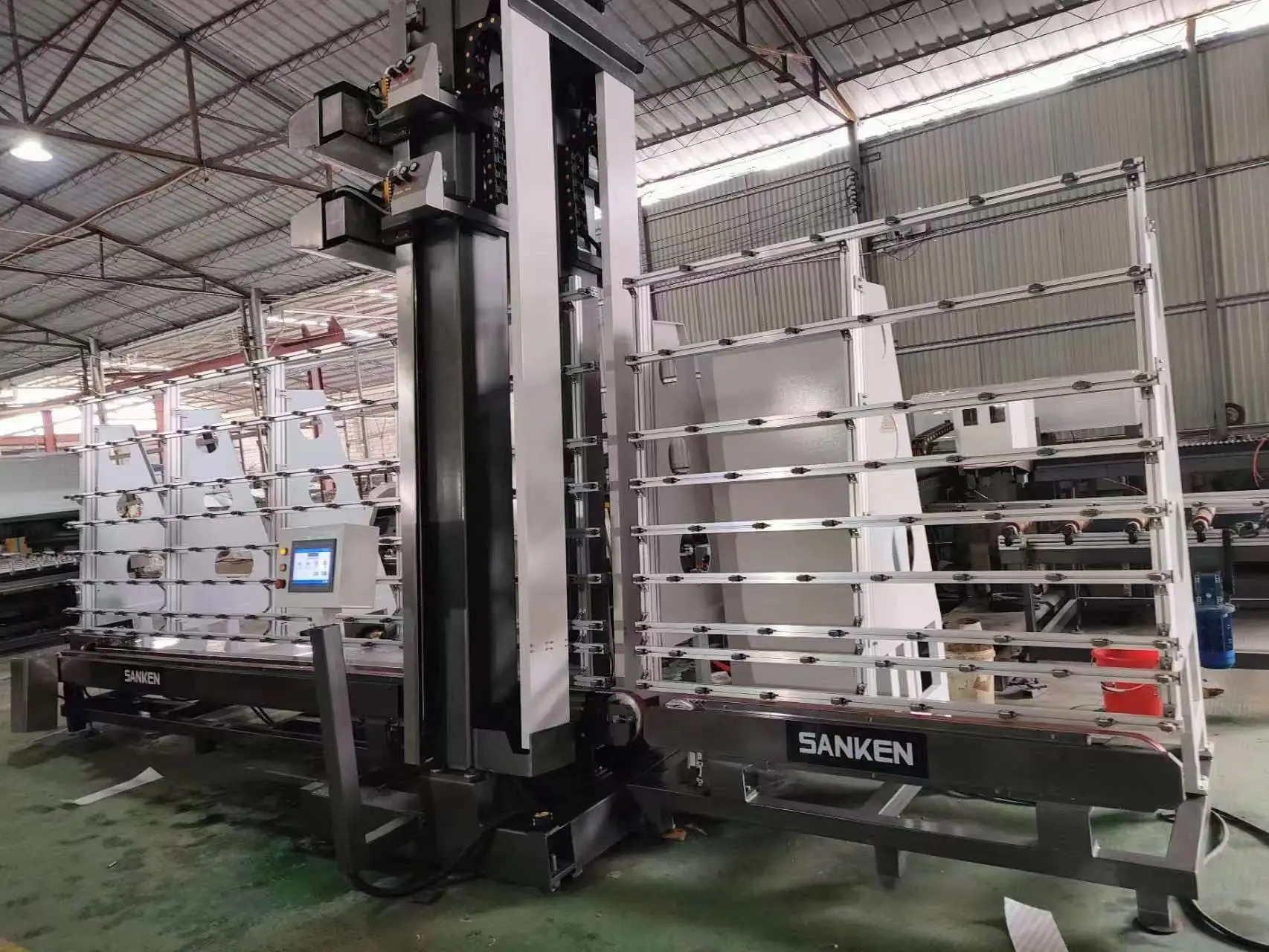

Glass Automatic Four Sides Edger is designed for glass chamfering with features of economy, efficiency and automatic identification of glass size and thickness. This machine is suitable for processing the construction glass, insulating glass of window and door and other different size flat glass with a large quantity. Being connected with other machines, the production efficiency can be improved deeply.



1.Adopt the servo-driven, annular timing belt and rubber roller for conveying and polyurethane wheel for press which ensures the stable glass transmission, accurate positioning and excellent grinding performance.

2.The automatic opening and closing mechanism of grinding motor and lateral pressing wheel are adopted the gear reducer and servo driver. Assembling with the ball screw rod, liner guide rail, pinion and rack, the mechanism can be accuracy.

3.The motor rotation system adopts the gear reducer and servo driver that make it position precisely.

4.Adopt limit switch probe positioning instead of touch glass that avoid the distress of parameters resetting due to the replacement of probe. This novel design greatly improves the life of the limit switch probe and makes the operation and maintenance more convenient.

5.Adopt human interface and PLC control system, easy operate.



Highly intelligent high-speed four-side grinding is widely used in the fine edge grinding of door and window glass. For developed countries, they need it very much, and for developing countries, which do not have high requirements for edge grinding quality, it will also be completely suitable for them. Use seaming machine to grind the edge to achieve the requirements of tempered edge grinding.

Introduction
In 2025, the demand for advanced glass machinery continues to rise. Choosing the right glass machinery suppliers is no longer just about price — it's about finding a partner who can deliver consistent quality, timely delivery, and technical support that keeps your production running smoothly.




1. Evaluate Product Quality and Technology


Inspect the supplier's manufacturing process and quality control standards.



Look for custom glass processing equipment that meets international certifications (CE, ISO).



Ask for sample projects or client references.








3. After-Sales Service and Technical Support


Check if they provide installation, training, and 24/7 customer service.



Ensure there are clear warranty terms and spare part availability.




4. Pricing vs. Long-Term Value


A lower initial quote might cost more in downtime later.



Calculate ROI based on machine efficiency, energy consumption, and maintenance costs.





Conclusion + Call to Action
Finding reliable glass machinery suppliers is about building a long-term, trust-based partnership. If you are looking for tailored CNC cutting, washing, or tempering solutions, 👉 Contact SANKEN today for a consultation and free production line assessment.

#module-S5VfCriCphOxI {padding-top: 4vw; padding-bottom: 4vw;}


#module-B8cxhEM2sAQMb {padding-top:4vw;padding-bottom: 4vw}



#module-i1yQV1w2jWN93 {padding-top:4vw;padding-bottom: 4vw}


#grid-BDY4y0MRx7oLYve{padding-right:var(--default-paddingRight);padding-left:var(--default-paddingLeft);}


#unit-fcxPVv6grtlXduR .ce-image_inner{justify-content:center;}#unit-fcxPVv6grtlXduR .ce-image_item{--svg-color:rgba(21, 132, 199,1);}#unit-fcxPVv6grtlXduR .ce-image{--image-effect:1;}












#cell-NUwb1hgbluppa0r{display: flex; flex-direction: column; justify-content: center;}


#unit-iOCw6FUmll4S08n {padding-left:2vw;padding-right:2vw;}
@media(max-width:1199px){#unit-iOCw6FUmll4S08n {padding-top:2vw;}}


Project Background




#unit-g8rnVOmNtsgCl0m {padding-left:2vw;padding-right:2vw; padding-top:1vw;padding-bottom: 2vw;}

The Kazakhstan tempered glass project marks a significant milestone in our company’s global expansion strategy. With the rapid growth of construction and infrastructure in Central Asia, demand for high-quality tempered glass has been rising steadily. By establishing a local production line, we are not only meeting this demand but also introducing advanced automation and glass processing expertise to the region. This initiative strengthens our ability to provide timely service, reduce logistics costs, and deliver world-class products, while also contributing to the modernization and sustainable development of the glass industry in Kazakhstan.







#grid-N4FbfWTgrX9pbjW{padding-right:var(--default-paddingRight);padding-left:var(--default-paddingLeft);}
@media(max-width:1199px){#grid-N4FbfWTgrX9pbjW {flex-direction: column-reverse;}}


#cell-78QCDTaHt1yyy0l{display: flex; flex-direction: column; justify-content: center;}


#unit-HwY5ztOXALw9yYM {padding-left:2vw;padding-right:2vw;}
@media(max-width:1199px){#unit-HwY5ztOXALw9yYM {padding-top:2vw;}}


Installation and Commissioning




#unit-nsZ0hEzOL2lQahZ {padding-left:2vw;padding-right:2vw; padding-top:1vw;padding-bottom: 2vw;}

From September 15 to 26, our technical team worked on the installation and commissioning of the tempered glass production line in Kazakhstan. The process included equipment assembly, calibration, and multiple rounds of testing to ensure stable operation and product quality. Despite a tight schedule and cross-cultural challenges, the project was completed on time through close collaboration with local partners, reflecting the professionalism and dedication of our team.





#unit-woKccV0D36fsn1i .ce-image_inner{justify-content:center;}#unit-woKccV0D36fsn1i .ce-image_item{--svg-color:rgba(21, 132, 199,1);}#unit-woKccV0D36fsn1i .ce-image{--image-effect:1;}













#module-7nlfT7QZSsZ9Y {padding-top:4vw;padding-bottom: 4vw}


#grid-1cqgLp5fFMRPg2d{padding-right:var(--default-paddingRight);padding-left:var(--default-paddingLeft);}


#unit-QsiChrkMJ62H0oP .ce-image_inner{justify-content:center;}#unit-QsiChrkMJ62H0oP .ce-image{--image-effect:1;}@media(max-width:1199px){#unit-QsiChrkMJ62H0oP .ce-image_item{--svg-color:rgba(21, 132, 199,1);}}












#cell-9uZ50wd0nCKFgj8{display: flex; flex-direction: column; justify-content: center;}


#unit-MiyPpbedOHQDN1F {padding-left:2vw;padding-right:2vw;}
@media(max-width:1199px){#unit-MiyPpbedOHQDN1F {padding-top:2vw;}}


Advanced Technology and Automation




#unit-G1fOwok1zrfPFcI {padding-left:2vw;padding-right:2vw; padding-top:1vw;padding-bottom: 2vw;}

The production line is equipped with cutting-edge automation systems, ensuring consistent product quality, high efficiency, and optimized energy consumption. The intelligent control panel allows operators to monitor and adjust parameters in real time, further enhancing operational stability and safety. This integration of advanced technology reflects our company’s ongoing commitment to innovation and sustainable development.







#grid-MGwHV3FWKjEntCS{padding-right:var(--default-paddingRight);padding-left:var(--default-paddingLeft);}
@media(max-width:1199px){#grid-MGwHV3FWKjEntCS {flex-direction: column-reverse;}}


#cell-yhywmSll8henJSD{display: flex; flex-direction: column; justify-content: center;}


#unit-uaq9KixMCJFeuEj {padding-left:2vw;padding-right:2vw;}
@media(max-width:1199px){#unit-uaq9KixMCJFeuEj {padding-top:2vw;}}


Successful Launch and Future Outlook




#unit-I6WYixtBQ8pMIUP {padding-left:2vw;padding-right:2vw; padding-top:1vw;padding-bottom: 2vw;}

On September 27, the production line was officially put into operation, and the first batch of tempered glass successfully rolled off the line. The successful commissioning not only highlights our company’s technical expertise but also underscores our ability to deliver reliable solutions to global partners.
Looking ahead, we will continue to expand our international footprint, provide innovative glass processing technologies, and build long-term partnerships across regions. This milestone in Kazakhstan is just the beginning of our broader vision to bring world-class glass manufacturing solutions to markets worldwide.





#unit-lHv6Z8MeMrBybCK .ce-image_inner{justify-content:center;}#unit-lHv6Z8MeMrBybCK .ce-image{--image-effect:1;}#unit-lHv6Z8MeMrBybCK .ce-image_item{--svg-color:rgba(21, 132, 199,1);}
