CNC Automatic Glass Cutting Production Line
SANKEN SKCL series combines automatic glass loading, CNC cutting and glass breaking into a coordinated production line. Four configurations are available for glass sizes from 2600 × 2000 mm up to 6100 × 3300 mm, allowing model selection according to glass dimensions, production requirements and factory layout.
CNC Automatic Glass Cutting Production Line
The SANKEN SKCL series CNC Automatic Glass Cutting Production Line combines automatic glass loading, CNC cutting and glass breaking into one coordinated production process. It is designed for flat-glass factories that require automated material handling, programmed cutting and an organized workflow from raw glass loading to breaking.
The line supports automatic glass transfer, positioning, cutting optimization and CNC cutting. Four SKCL configurations are available for different glass sizes and factory requirements, with maximum processing dimensions ranging from 2600 × 2000 mm to 6100 × 3300 mm.
SKCL Series CNC Automatic Glass Cutting Production Line
Production Line Components

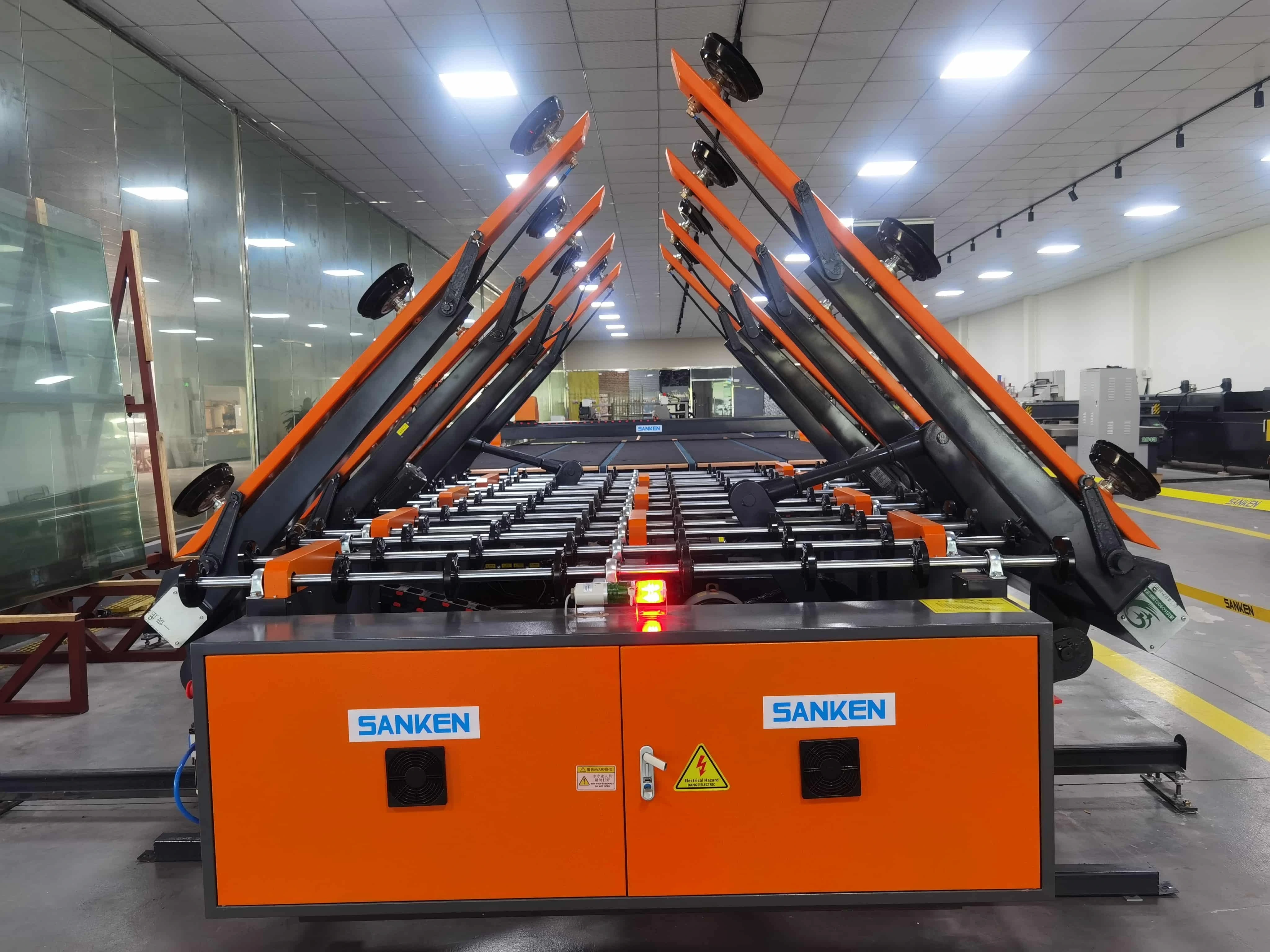

Automatic Glass Loading
The loading section picks up raw glass sheets and transfers them to the CNC cutting table, reducing repeated manual handling before the cutting process.
Automatic Glass Positioning
Glass is transferred and positioned on the cutting table according to the programmed production task before cutting begins.
Cutting Optimization
The CNC control system works with cutting optimization software to arrange cutting layouts according to glass dimensions and production requirements.
CNC Glass Cutting
The cutting section performs programmed flat-glass cutting with adjustable cutting speed for different glass sizes and processing requirements.
Glass Breaking
After cutting, the glass is transferred to the breaking section for separation along the cutting lines, completing the main glass cutting workflow.
Working Sequence
Raw glass is loaded onto the line and transferred to the cutting section. After positioning and cutting-layout preparation, the CNC system performs the programmed cutting operation. The processed glass is then transferred to the breaking section to complete the cutting cycle.
Machine and Line Details
Production-line views and equipment details of the SANKEN automatic glass cutting system.
Technical Specifications
The SKCL series is available in four catalogue configurations. Model selection should be based on maximum glass dimensions, production requirements and available factory space.
| Model | SKCL-2620A | SKCL-3725A | SKCL-5033A | SKCL-6033A |
|---|---|---|---|---|
| Max. Processing Size | 2600 × 2000 mm | 4200 × 2800 mm | 5000 × 3300 mm | 6100 × 3300 mm |
| Processing Thickness | 3–19 mm | 3–19 mm | 3–19 mm | 3–19 mm |
| Cutting Speed | 1–180 m/min | 1–180 m/min | 1–180 m/min | 1–180 m/min |
| Accuracy | ±0.2 mm/m | ±0.2 mm/m | ±0.2 mm/m | ±0.2 mm/m |
| Working Height | 900 ± 20 mm | 900 ± 20 mm | 900 ± 20 mm | 900 ± 20 mm |
| Air Pressure | 0.6–0.8 MPa | 0.6–0.8 MPa | 0.6–0.8 MPa | 0.6–0.8 MPa |
| Total Power | 12.0 kW | 18.5 kW | 25.5 kW | 25.5 kW |
| Machine Size | 9300 × 2900 × 1450 mm | 14200 × 5700 × 1450 mm | 17000 × 7600 × 1450 mm | 19700 × 7600 × 1450 mm |
| Weight | 4800 kg | 7000 kg | 9000 kg | 10500 kg |
Choosing the Right SKCL Model
SKCL-2620A
For factories mainly processing glass up to 2600 × 2000 mm and requiring a relatively compact automatic cutting line.
SKCL-3725A
For glass up to 4200 × 2800 mm and factories requiring a larger processing area for standard flat-glass production.
SKCL-5033A
For larger sheets up to 5000 × 3300 mm where a wider cutting area is required.
SKCL-6033A
For large-format glass up to 6100 × 3300 mm and production layouts designed for jumbo glass processing.
Applications
The SKCL series is suitable for flat-glass cutting in architectural glass, automotive glass, home appliance glass, furniture glass, solar glass, decorative glass, bathroom glass, mirror and other glass deep-processing applications.
It is intended for factories that require coordinated glass loading, CNC cutting and breaking rather than separate manual handling between each process.
Frequently Asked Questions
What equipment is included in the CNC automatic glass cutting production line?
The production line consists of automatic glass loading equipment, a CNC glass cutting section and glass breaking equipment working as a coordinated cutting system.
What is the difference between the SKC and SKCL series?
The SKC series combines loading, CNC cutting and breaking functions in one compact machine. The SKCL series uses coordinated loading, CNC cutting and breaking equipment to form a complete automatic production line with larger processing-size options.
What is the maximum glass size available?
The largest catalogue model, SKCL-6033A, supports glass up to 6100 × 3300 mm.
What glass thickness can the line process?
The SKCL series is specified for glass thicknesses from 3 to 19 mm.
How should I choose an SKCL model?
Model selection should consider the maximum glass dimensions, required production capacity, available factory space and the planned loading and breaking arrangement.
Can the production-line layout be configured for my factory?
Yes. The equipment arrangement can be reviewed according to factory space, glass dimensions, production flow and connection requirements.
Equipment Selection and Line Planning
For production-line selection, provide your maximum glass dimensions, thickness range, expected cutting capacity and factory floor plan. SANKEN can review the suitable SKCL model and equipment arrangement according to the planned glass cutting process.
