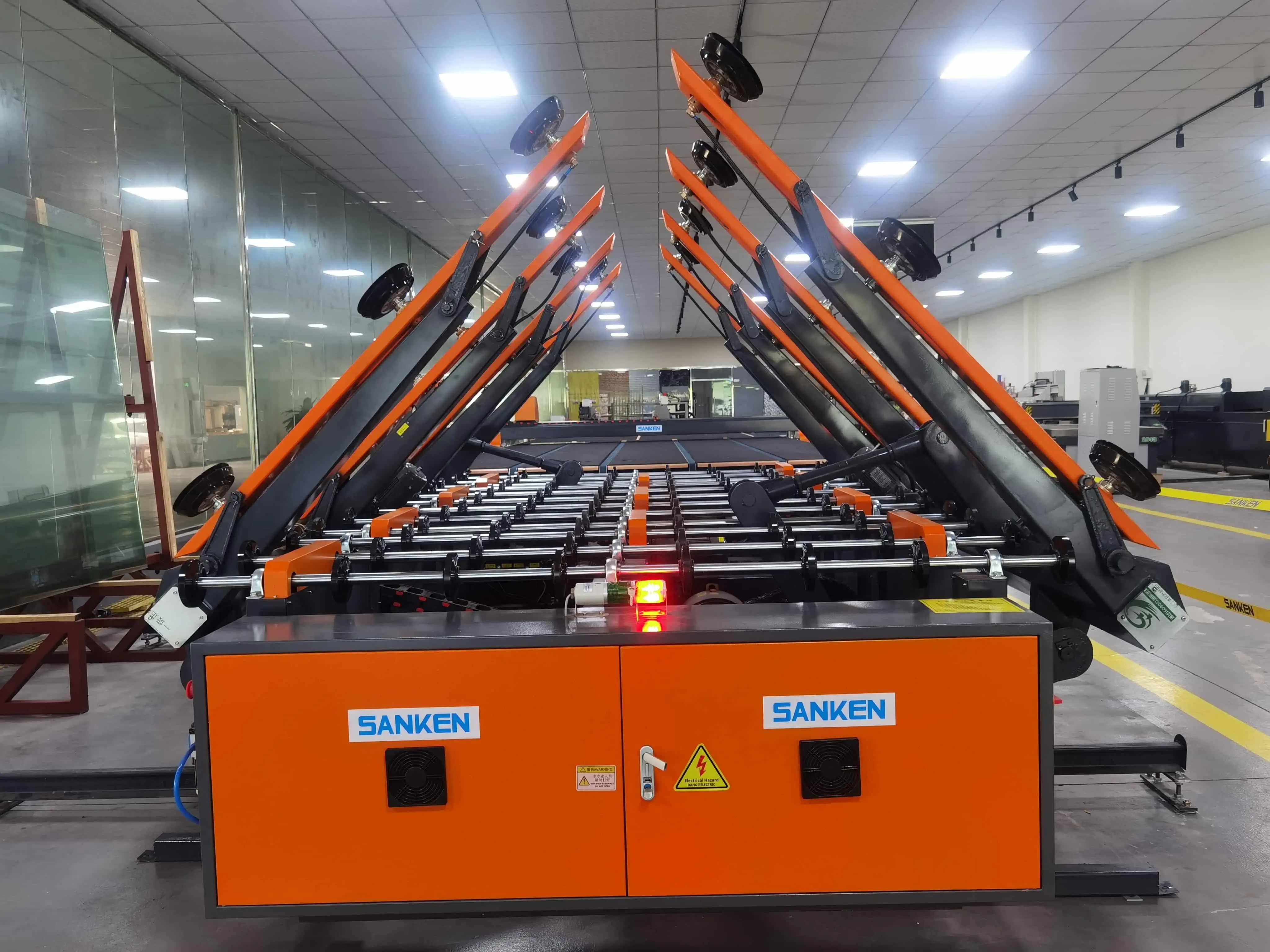

خط إنتاج قطع الزجاج الأوتوماتيكي باستخدام الحاسب الآلي 1
خط إنتاج قطع الزجاج الأوتوماتيكي باستخدام الحاسب الآلي 2
خط إنتاج قطع الزجاج الأوتوماتيكي باستخدام الحاسب الآلي 3
خط إنتاج قطع الزجاج الأوتوماتيكي باستخدام الحاسب الآلي 4
خط إنتاج قطع الزجاج الأوتوماتيكي باستخدام الحاسب الآلي 5
خط إنتاج قطع الزجاج الأوتوماتيكي باستخدام الحاسب الآلي 6
خط إنتاج قطع الزجاج الأوتوماتيكي باستخدام الحاسب الآلي 1
خط إنتاج قطع الزجاج الأوتوماتيكي باستخدام الحاسب الآلي 2
خط إنتاج قطع الزجاج الأوتوماتيكي باستخدام الحاسب الآلي 3
خط إنتاج قطع الزجاج الأوتوماتيكي باستخدام الحاسب الآلي 4
خط إنتاج قطع الزجاج الأوتوماتيكي باستخدام الحاسب الآلي 5
خط إنتاج قطع الزجاج الأوتوماتيكي باستخدام الحاسب الآلي 6

خط إنتاج قطع الزجاج الأوتوماتيكي باستخدام الحاسب الآلي

خط قطع الزجاج CNC بالكامل بما في ذلك:

تحميل الزجاج تلقائيًا / قطع الزجاج باستخدام الحاسب الآلي / كسر الزجاج



MAIN SPECIFICATION:

رقم الموديل.:  SKCL-3725A

الأعلى. حجم المعالجة: mm4200 x 2800

سمك القطع: 3-19 ملم

سرعة القطع: 1-180 متر / دقيقة (قابلة للتعديل)

دقة القطع المستقيمة: ±0.2 مم/م

ارتفاع العمل: mm900 ± mm20

ضغط الهواء: 0.6~0.8 ميجا باسكال

إجمالي الطاقة: 18.5 كيلو وات، 380 فولت / 50 هرتز

مقاس: mm14200x 5700 x 920

وزن: 7000 KGS

تحسين البرمجيات: " "اوبتيما" ايطاليا

مع وضعين لأذرع التحميل (باستثناء الرفوف)

يمكن لمجموعة متنوعة من الأحجام تلبية احتياجات المعالجة المختلفة للعملاء، يرجى الاتصال بنا للحصول على التفاصيل.

    وجه الفتاة...!

    لا توجد بيانات المنتج.

    الذهاب إلى الصفحة الرئيسية
    微信图片_20200804163632 (2)

    معلومات المنتج

    SANKEN CNC automatic glass cutting line is composed of auto glass loading table, CNC glass cutting machine and pneumatic glass breaking table. The advanced mechanical structure cooperates with Italy control system and cutting optimization software to create an international high-end automatic glass cutting line which realizing the operations of automatic glass loading / automatic glass transmission / automatic glass positioning / automatic glass optimization / automatic glass cutting / pneumatic glass breaking. It greatly improves the glass cutting quality and cutting speed. SANKEN CNC glass cutting line is suitable for cutting architectural glass, automobile glass, home appliance glass, furniture glass, solar glass, handicraft glass, bathroom glass, mirror etc,. It has been widely recognized by users at home and abroad because it is with higher security, higher optimization rate, better stability, faster speed, more accurate, more complete functions, easier operation and less labor-cost

    Specification Drawing

    微信图片_20200804163606 (3)
    微信图片_20200804163606 (3)
    微信图片_20200804163627
    微信图片_20200804163627
    微信图片_20200804163640
    微信图片_20200804163640
    微信图片_20200804163645
    微信图片_20200804163645
    微信图片_20200804163717 (2) (3)
    微信图片_20200804163717 (2) (3)
    微信图片_20200804163722
    微信图片_20200804163722
    行程开关-作用是玻璃停止
    行程开关-作用是玻璃停止

    Advantage

    CNC automatic glass cutting line is composed of auto glass loading machine, CNC glass cutting machine and pneumatical glass separating table. The three machines are controlled by one central controller, and compose an automatic glass cutting line in high efficiency and precision.

    خط إنتاج قطع الزجاج الأوتوماتيكي باستخدام الحاسب الآلي 15
    Station loading
    Load the cutting machine by rack, suitable for economical batch operation, single station or multi-station can be selected
    خط إنتاج قطع الزجاج الأوتوماتيكي باستخدام الحاسب الآلي 16
    Loading table
    can be divided into one-way or two-way, can also be composed of multi-station loading, can choose automatic loading or manual loading
    خط إنتاج قطع الزجاج الأوتوماتيكي باستخدام الحاسب الآلي 17
    Cutting table
    can achieve high-precision dynamic special-shaped cutting (can also achieve cutting and upper and lower integrated)
    خط إنتاج قطع الزجاج الأوتوماتيكي باستخدام الحاسب الآلي 18
    Unloading table
    The glass shelf has a built-in tilt angle, a scientific and safe design
    微信图片_20200804163717 (2) (3)
    Accuracy guarantee
    low-power servo motor + acceleration and deceleration curve control + reasonable reduction ratio selection
    行程开关-作用是玻璃停止
    Reliability guarantee
    load-bearing machine + lightweight beam + independent side beam + dual motor drive

    APPLICATION

    SANKEN CNC Automatic Glass Cutting Machine has the functions of automatic loading, straight line cutting and shaped cutting, manual glass breaking. The CNC glass cutting table is equipped with air float, which is convenient for moving glass. SANKEN CNC cutting table is suitable for cutting architectural glass, automotive glass, home appliance glass, furniture glass, solar glass, handicraft glass, bathroom glass, lens and so on.

    FAQ

    1
    About voltaje
    Voltage can be customized
    2
    GUARANTEE / WARRANTY
    The quality guarantee period for one year, any damages on the electric parts during the quality gaurantee period can be maintained or replaced free, (Except in the course of usage, damage due to human errors), and after guarantee period, SANKEN will continuously give good support and best after-sales service to customer.
    3
    About delivery time
    30 WORKING DAYS AFTER RECEIVING 30% ADVANCE PAYMENT.
    4
    About payment terms
    30% SHALL BE PAID BY T/T AS DOWN PAYMENT IN ADVANCE;
    70% BALANCE SHALL BE PAID OFF BY T/T BEFORE SHIPMENT.
