Multi-functional CNC Glass Cutting Machine

Integrated Glass Loading, CNC Cutting and Breaking in One Machine

SANKEN SKC series combines glass loading, CNC cutting and breaking functions in one compact machine. Available in SKC-2620AM and SKC-3725AM configurations, it supports 2–19 mm glass and straight-line or shaped cutting for different flat-glass processing requirements.

5.0
design customization

    oops...!

    no product data.

    Go to homepage

    Multi-functional CNC Glass Cutting Machine

    The SANKEN SKC series Multi-functional CNC Glass Cutting Machine integrates glass loading, CNC cutting and breaking functions in one compact machine. It is designed to simplify the flat-glass cutting process while reducing the floor space required for separate loading, cutting and breaking equipment.

    The machine supports straight-line and shaped glass cutting and is equipped with an air-float worktable to assist glass movement during processing. Two models, SKC-2620AM and SKC-3725AM, are available for different glass sizes and production requirements.

    SANKEN SKC Multi-functional CNC Glass Cutting Machine

    SKC Series Multi-functional CNC Glass Cutting Machine

    Key Functions

    Integrated Glass Loading

    The loading mechanism picks up and transfers glass onto the cutting table, combining material handling with the cutting process in a single machine.

    CNC Straight and Shaped Cutting

    The CNC cutting system can perform straight-line and shaped cutting according to programmed cutting requirements for different flat-glass products.

    Integrated Breaking Function

    The machine combines the cutting and breaking stages within the same equipment platform, reducing the need for separate machines and material transfer between stations.

    Air-Float Worktable

    The cutting table is equipped with an air-float function to reduce resistance when moving glass across the work surface and assist positioning during production.

    Compact Production Layout

    By combining loading, cutting and breaking functions, the SKC series provides a compact configuration for factories that want to reduce equipment footprint and simplify the glass cutting workflow.

    Working Sequence

    Glass loading → Glass positioning → CNC cutting → Breaking operation

    Glass is loaded onto the processing table and positioned for the programmed cutting task. The CNC system then performs the required straight or shaped cutting before the glass moves to the breaking stage within the integrated machine workflow.

    Machine Details

    Product views and structural details of the SKC series CNC glass cutting machine.

    SANKEN Multi-functional CNC Glass Cutting Machine detail view 1
    SANKEN Multi-functional CNC Glass Cutting Machine detail view 2
    SKC CNC Glass Cutting Machine detail view 3
    SKC CNC Glass Cutting Machine detail view 4
    SKC Multi-functional Glass Cutting Machine detail view 5
    SKC Multi-functional Glass Cutting Machine detail view 6

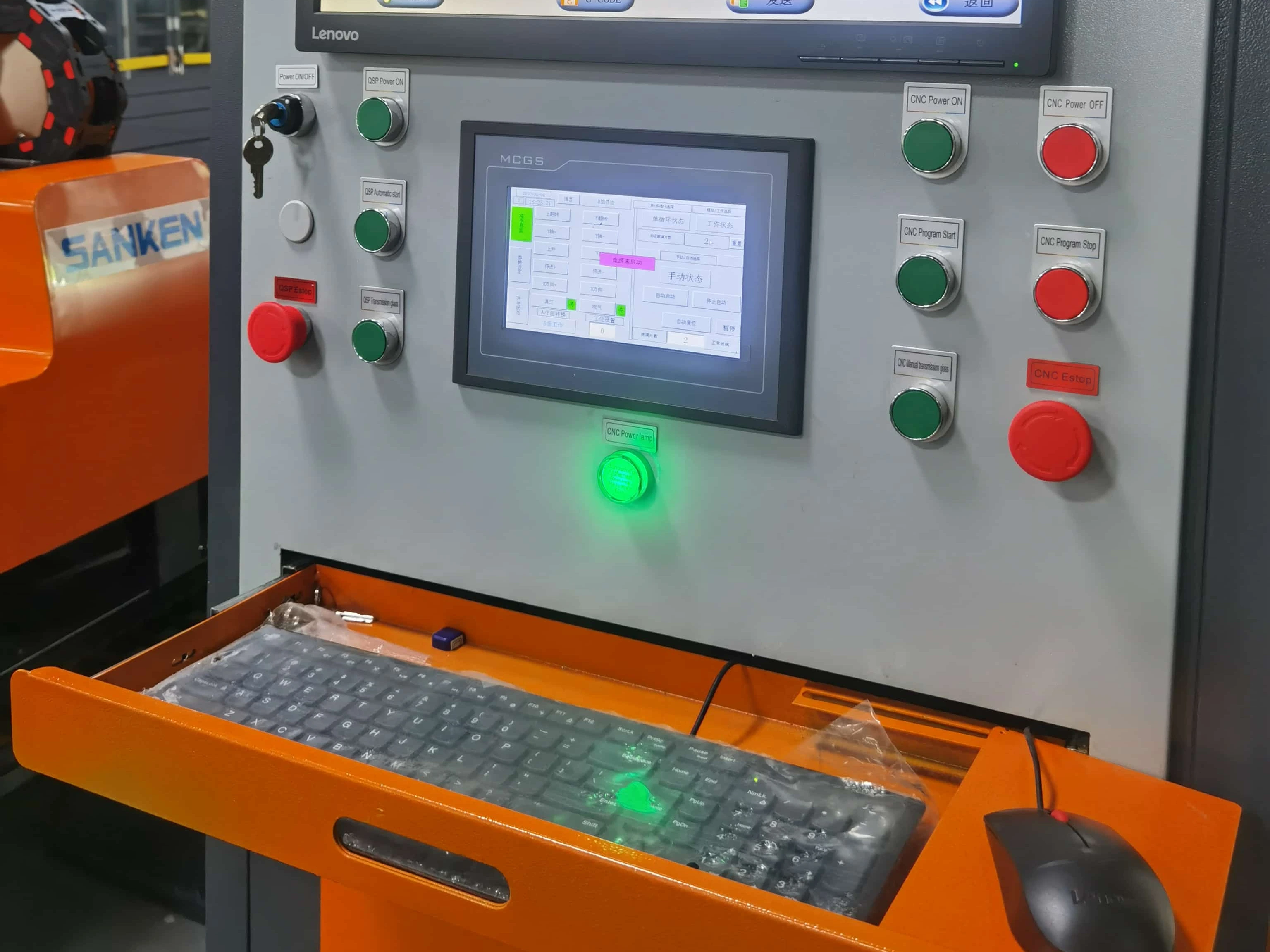

    SANKEN CNC Glass Cutting Machine component detail
    SANKEN CNC Glass Cutting Machine working detail
    SANKEN SKC Glass Cutting Machine production detail

    Technical Specifications

    The SKC series is available in two catalogue configurations. Final model selection should be based on glass dimensions, factory space and production requirements.

    Model SKC-2620AM SKC-3725AM
    Max. Processing Size 2600 × 2000 mm 3700 × 2500 mm
    Min. Processing Size 1500 × 1000 mm 1800 × 1000 mm
    Processing Thickness 2–19 mm 2–19 mm
    Suction Depth 900 mm 900 mm
    Transmission Speed 5–25 m/min 5–25 m/min
    Cutting Speed 0–200 m/min 0–200 m/min
    Air Pressure 0.6–0.8 MPa 0.6–0.8 MPa
    Total Power 12 kW 14 kW
    Machine Size 3300 × 2300 × 1300 mm 4200 × 3000 × 1300 mm
    Weight 2.5 tons 3.5 tons

    Choosing Between SKC-2620AM and SKC-3725AM

    SKC-2620AM

    Suitable for factories processing glass up to 2600 × 2000 mm and requiring a more compact machine footprint.

    SKC-3725AM

    Suitable for larger glass sheets up to 3700 × 2500 mm and applications that require a larger processing area.

    Applications

    The SKC series is used for flat-glass cutting in architectural glass, insulating glass, furniture glass, cabinet glass, home appliance glass, decorative glass and other glass deep-processing applications.

    Its integrated configuration is particularly suitable for factories that want to combine loading, CNC cutting and breaking functions while reducing the floor space required by separate equipment.

    Frequently Asked Questions

    What functions are integrated into the SKC series?

    The SKC series combines glass loading, CNC cutting and breaking functions in one machine, reducing the need for separate equipment for each stage.

    What is the difference between SKC-2620AM and SKC-3725AM?

    The main difference is the processing size. SKC-2620AM processes glass up to 2600 × 2000 mm, while SKC-3725AM supports glass up to 3700 × 2500 mm. The larger model also has higher total power and a larger machine footprint.

    What glass thickness can the machine process?

    Both catalogue models are specified for glass thicknesses from 2 to 19 mm.

    Can the machine cut shaped glass?

    Yes. The CNC cutting system supports straight-line and shaped cutting according to the programmed glass cutting requirements.

    What information is needed before selecting a model?

    Please provide the maximum glass size, glass thickness range, expected production requirements and available factory space. These details help determine whether SKC-2620AM or SKC-3725AM is the more suitable configuration.

    Equipment Selection and Technical Support

    For equipment selection, provide your glass dimensions, thickness range, production requirements and factory layout. SANKEN can review the required machine size and configuration according to the planned glass cutting process.
