Sanken Glass Straight Line Double Edging Line

SANKEN Glass Straight Line Double Edging machine SKDE-6022AL

Fully Automatic 6000mm Glass Double Edging Line (44 Motors)

Jumbo Fully Automatic Glass Double Edging Line (SKDE-6022AL)

The SANKEN SKDE-6022AL Double Edging Line is the ultimate high-capacity solution for the professional batch processing of oversized rectangular glass. Designed to handle massive architectural glass sheets, this production line seamlessly connects two robust 22-motor double edgers via an automatic transit table.

Jumbo Processing Capacity: Expertly handles extra-large glass dimensions up to 6000x3300mm with a thickness range of 3~25mm.
44-Motor Configuration: Equipped with a total of 44 grinding motors (22x2) to deliver exceptional edge quality and high polishing brightness in a single pass.
Exceptional Precision: Adopts a high-precision transmission structure featuring double linear guides and double ball screws, ensuring perfectly uniform diagonals.
Flexible Layout: It can be configured as a linear production line or an L-shaped production line to perfectly accommodate the specific layout of your plant.
Massive Labor Savings: Fully automated operation drastically reduces manual intervention, boosting safety and saving up to 15 laborers on the factory floor.

Main Technical Specifications:

Model: SKDE-6022AL

Max. Processing Size: 6000*3300mm

Min. Processing Size: 500*300mm

Processing Thickness: 3~25mm

Processing Speed: 0~18m/min

Quantity of Motors: 22*2

Total Power: 148KW

Weight: 17.8 Tons

Machine Size: 15500*8400*1800mm

Inquiry

Write a Review

Product Information

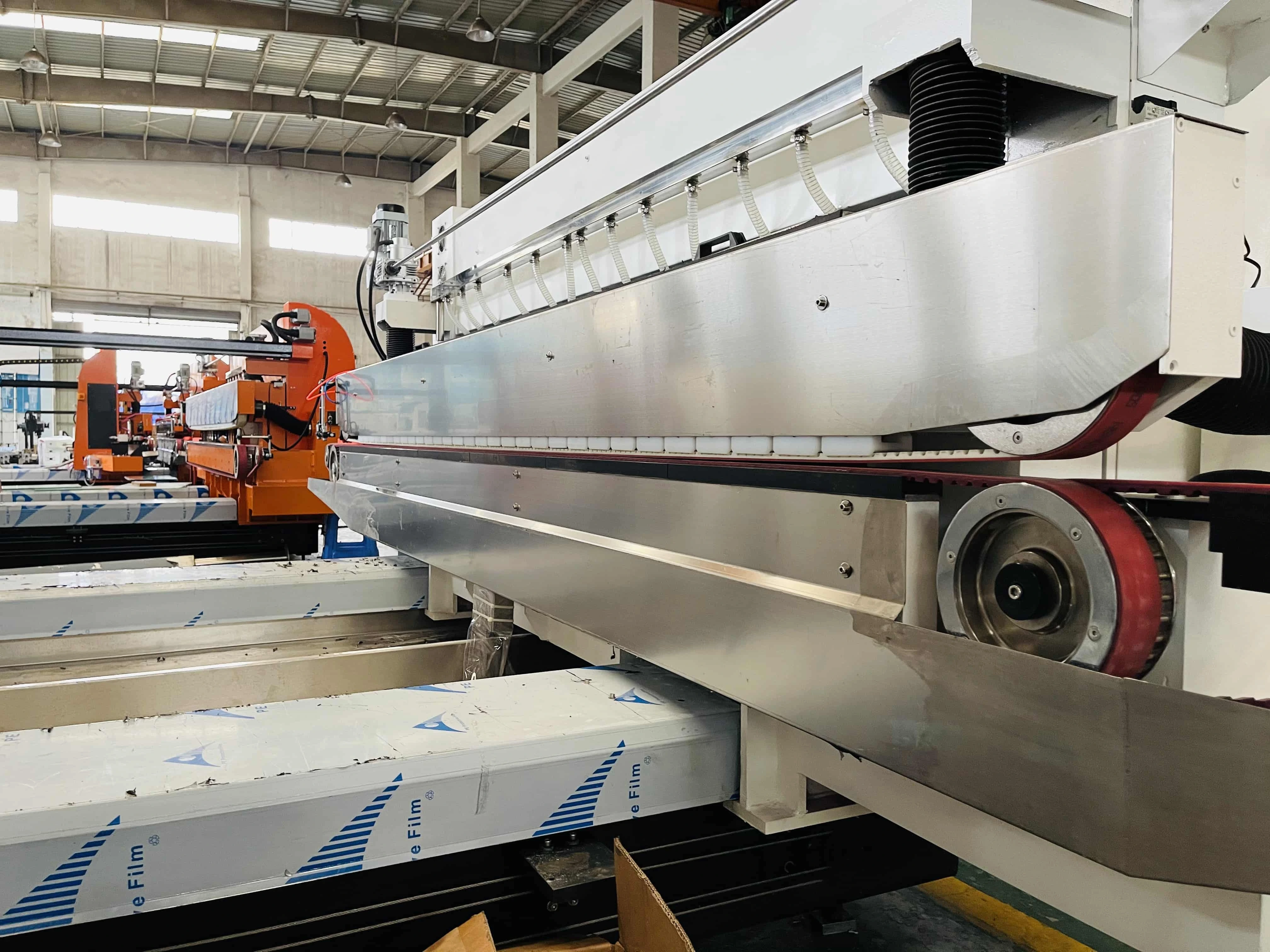

The SANKEN SKDE-6022AL Glass Double Edging Production Line is a heavy-duty processing powerhouse. Composed of two powerful double edgers and an automatic transit table, it is expertly designed to process jumbo rectangular glass up to 6000x3300mm. It flawlessly completes four-sided rough grinding, chamfering, and high-brightness polishing all at once. Driven by a high-precision structure with double linear guides and double ball screws, it guarantees stable transmission, perfectly uniform diagonals, and flawless accuracy. With a total of 44 motors and a highly intelligent touch screen system, it is your top choice for efficient, labor-saving large-scale glass production.

Specification Drawing

微信图片_20210810150535

微信图片_20210810150453

高速双边机生产线

Glass Straight Line Double Edging machine

Sanken Glass Straight Line Double Edging Line -2

Sanken Glass Straight Line Double Edging Line -3

Advantage

SANKEN Glass Straight Line Double Edging machine SKDE-6022AL 13

Jumbo Batch Processing

Expertly processes extra-large rectangular glass up to 6000x3300mm, utilizing an ultra-powerful 44-motor configuration (22x2).

SANKEN Glass Straight Line Double Edging machine SKDE-6022AL 14

One-Pass 4-Sided Edging

Completes horizontal glass feeding, rough grinding, chamfering, fine grinding, and polishing on all four sides simultaneously.

SANKEN Glass Straight Line Double Edging machine SKDE-6022AL 15

High-Precision Transmission

Adopts an advanced transmission structure with double linear guides and double ball screws to ensure maximum stability and uniform diagonals.

SANKEN Glass Straight Line Double Edging machine SKDE-6022AL 16

Flexible Line Layout

Can be seamlessly configured as either a linear production line or an L-shaped production line to fit the customer's exact plant layout.

APPLICATION

This heavy-duty line is widely suitable for processing oversized architectural glass, home appliance glass, furniture glass, solar glass, and bathroom glass, providing a high-efficiency edge-processing solution for global manufacturers.

FAQ

About voltaje

Voltage can be customized

GUARANTEE / WARRANTY

The quality guarantee period for one year, any damages on the electric parts during the quality gaurantee period can be maintained or replaced free, (Except in the course of usage, damage due to human errors), and after guarantee period, SANKEN will continuously give good support and best after-sales service to customer.

About delivery time

30 WORKING DAYS AFTER RECEIVING 30% ADVANCE PAYMENT.

About payment terms

30% SHALL BE PAID BY T/T AS DOWN PAYMENT IN ADVANCE;
70% BALANCE SHALL BE PAID OFF BY T/T BEFORE SHIPMENT.
