Horizontal Glass Drilling Machine
The SANKEN SKD-02 Horizontal Glass Drilling Machine is used for drilling holes in flat glass for furniture, architectural and other glass-processing applications.
The machine uses pneumatic clamping to hold the glass and infrared positioning to assist with hole alignment. Upper and lower drilling heads operate in sequence during the drilling process.
Semi-automatic and automatic operating modes are available to suit different working requirements.
The SKD-02 supports glass thicknesses of 3–25 mm and drilling diameters of 5–140 mm. Its total installed power is 4 kW.
Horizontal Glass Drilling Machine
The SANKEN SKD-02 Horizontal Glass Drilling Machine is designed for drilling holes in flat glass. It combines pneumatic glass clamping, infrared positioning and sequential upper and lower drilling for semi-automatic and automatic operation.
The machine supports drilling diameters from 5 to 140 mm and glass thicknesses from 3 to 25 mm. It can be used for furniture glass, architectural glass and other flat-glass products requiring drilled holes.
The SKD-02 is equipped with a glass support table and additional supporting racks. Operators can select the operating mode according to the drilling task and production requirements.

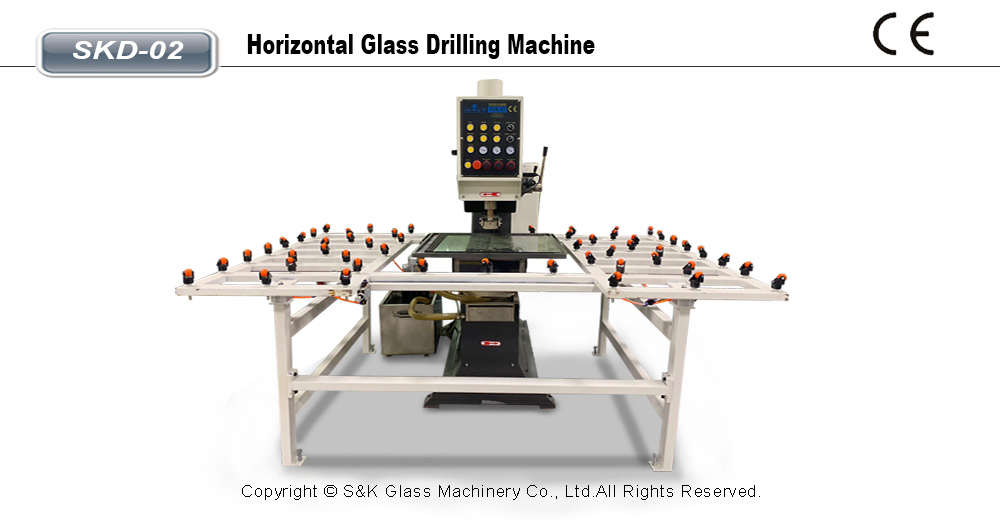

SANKEN SKD-02 Horizontal Glass Drilling Machine
Glass Drilling Functions
Sequential Upper and Lower Drilling
The SKD-02 uses upper and lower drilling heads that operate in sequence. This drilling method processes the glass from both sides rather than relying on a single drilling direction.
Drilling tools and operating settings should be selected according to the glass thickness and required hole diameter.
Pneumatic Glass Clamping
The machine uses pneumatic clamping to hold the glass during drilling. The workpiece is positioned and secured before the drilling operation begins.
Infrared Positioning
Infrared positioning assists the operator in aligning the required drilling location. Hole positions are established according to the workpiece dimensions and processing requirements.
Semi-Automatic and Automatic Operation
The SKD-02 combines semi-automatic and automatic control functions. Operators can select the appropriate operating mode for the drilling task.
Drilling Diameters from 5 to 140 mm
The machine supports drilling diameters from 5 to 140 mm. The appropriate drill bit and operating conditions depend on the required hole diameter and glass thickness.
Machine Structure
Horizontal Glass Support Table
The horizontal working table supports the glass during positioning and drilling. Additional supporting racks provide a wider area for handling larger workpieces.

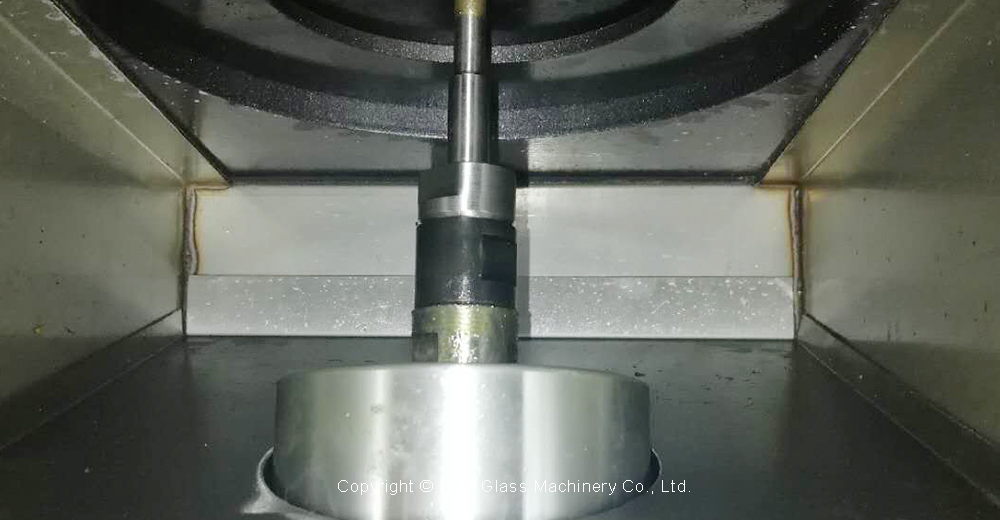

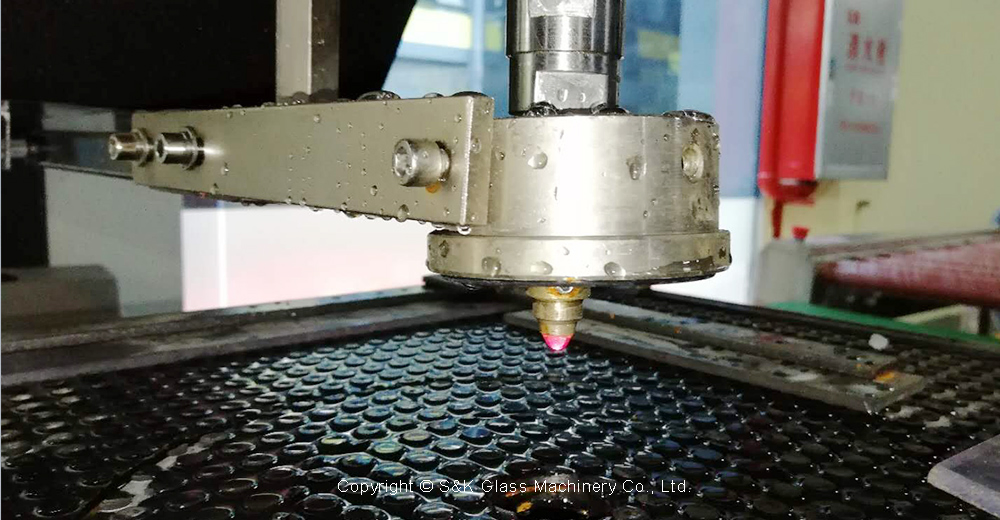

Upper and Lower Drilling Heads
The machine uses upper and lower drilling heads for successive drilling operations. The drilling sequence is controlled according to the selected operating mode.
Pneumatic Clamping System
The pneumatic system secures the glass at the drilling position. Correct clamping and glass support are important during the drilling process.
Machine Control
The control system supports semi-automatic and automatic operation. Drilling settings and operation procedures should be selected according to the workpiece requirements.
Working Process
The operator places the glass on the supporting table and aligns the required hole position. The pneumatic clamping system then secures the glass for drilling.
The upper and lower drilling heads operate successively according to the selected drilling settings. After the drilling operation is completed, the glass can be released and removed from the machine.
The operating sequence and drilling conditions depend on the glass thickness, hole diameter and selected control mode.
Machine Details

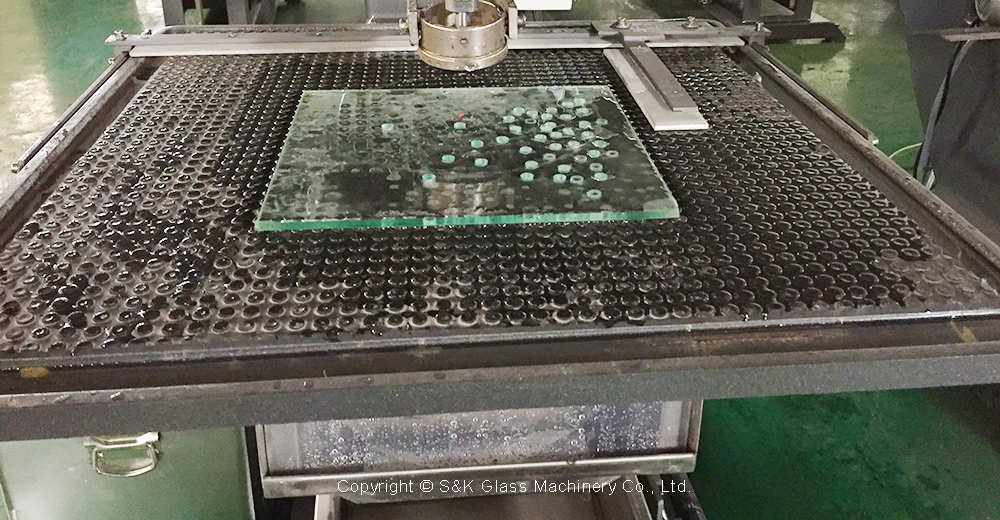

Equipment views of the SKD-02 Horizontal Glass Drilling Machine.
Technical Specifications
| Parameter | SKD-02 |
|---|---|
| Machine Type | Horizontal Glass Drilling Machine |
| Operating Mode | Semi-Automatic / Automatic |
| Drilling Diameter | 5–140 mm |
| Glass Thickness | 3–25 mm |
| Glass Positioning | Infrared Positioning |
| Glass Clamping | Pneumatic Clamping |
| Drilling Arrangement | Sequential Upper and Lower Drilling |
| Total Power | 4 kW |
| Equipment Dimensions (L × W × H) | 2500 × 2000 × 2200 mm |
| Machine Weight | 1000 kg |
The appropriate drilling tools and operating settings depend on the glass thickness and required hole diameter.
SKD-02 and CNC Glass Drilling Machines
The SKD-02 is a horizontal drilling machine with infrared positioning, pneumatic clamping and semi-automatic or automatic operating modes. It is suitable for standalone glass drilling tasks.
For applications requiring servo-controlled CNC hole positioning, SANKEN also offers the SKD-CNC201 and SKD-CNC202 horizontal CNC glass drilling machines.
See the CNC Horizontal Glass Drilling Machine (Off-line) for CNC-controlled drilling applications.

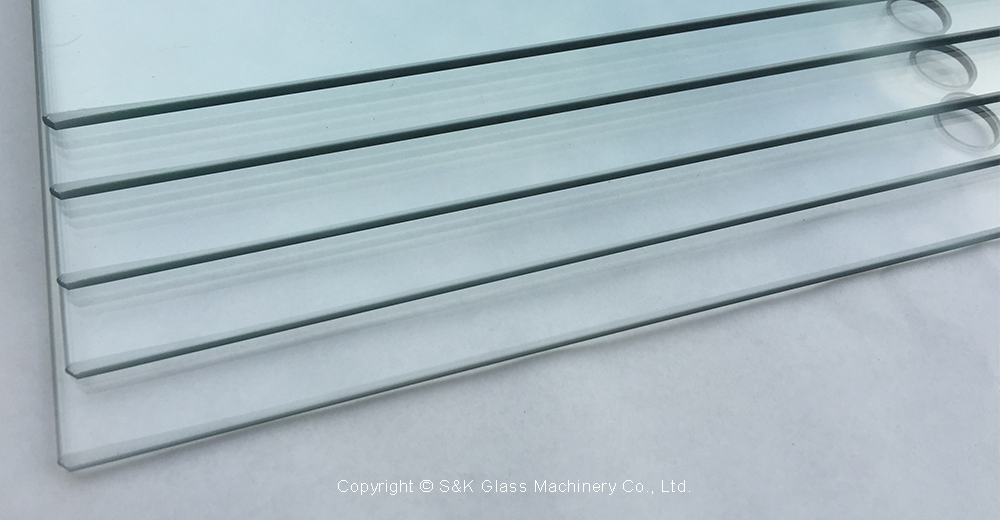

Applications
The SKD-02 can be used for drilling flat glass in architectural glass, furniture glass and other glass-processing applications.
It is suitable for glass products requiring holes for fittings, assembly or other processing requirements within the supported thickness and drilling-diameter ranges.
The required drilling tools and glass support arrangement should be selected according to the workpiece dimensions and hole positions.
Frequently Asked Questions
What is the SKD-02 glass drilling machine used for?
The SKD-02 is used for drilling holes in flat glass. It supports glass thicknesses from 3 to 25 mm and drilling diameters from 5 to 140 mm.
Is the SKD-02 a CNC glass drilling machine?
The SKD-02 is a semi-automatic and automatic horizontal glass drilling machine using infrared positioning and pneumatic clamping. For servo-controlled CNC coordinate positioning, the SKD-CNC Series is available.
What drilling diameters can the machine process?
The supported drilling diameter range is 5–140 mm.
What glass thickness can the SKD-02 process?
The machine supports glass thicknesses from 3 to 25 mm.
How is the glass positioned?
The SKD-02 uses infrared positioning to assist with drilling alignment. Pneumatic clamping holds the glass during processing.
Does the machine drill from both sides of the glass?
Yes. The upper and lower drilling heads operate successively to process the glass from both sides.
Can the SKD-02 operate in semi-automatic and automatic modes?
Yes. The machine has both operating modes, allowing the operator to select the appropriate control method for the drilling task.
What is the difference between SKD-02 and SKD-CNC201?
The SKD-02 uses infrared positioning and supports drilling diameters from 5 to 140 mm. The SKD-CNC201 uses servo-controlled CNC positioning and supports drilling diameters from 5 to 35 mm. The appropriate machine depends on the hole dimensions and required positioning method.
Equipment Selection
For SKD-02 equipment selection, please provide the glass dimensions, thickness, required drilling diameters and hole positions. Glass drawings can help confirm the drilling tools and suitable operating arrangement.
