CNC Horizontal Glass Drilling Machine (On-line)
The SANKEN SKD-CNC Series CNC Horizontal Glass Drilling Machine is designed for automated glass drilling within a connected production line.
Its servo-driven X, Y and Z axes are controlled by a CNC system for programmed hole positioning and drilling. The machine can be connected with double edging machines, glass washers and compatible loading or unloading equipment.
Six models are available: SKD-CNC151A, SKD-CNC152A, SKD-CNC201A, SKD-CNC202A, SKD-CNC251A and SKD-CNC252A.
The series supports glass thicknesses of 4–19 mm, drilling diameters of 4–50 mm and maximum processing widths from 1500 to 2500 mm. One-group and two-group spindle configurations are available.
CNC Horizontal Glass Drilling Machine (On-line)
The SANKEN SKD-CNC Series CNC Horizontal Glass Drilling Machine is designed for automated hole drilling in flat glass within a connected glass-processing production line. It can operate between compatible upstream and downstream equipment, allowing drilling to be included in a continuous production workflow.
The X, Y and Z axes are driven by servo motors and controlled by a CNC system for programmed drilling positions. The machine is available with one or two groups of drilling spindles to suit different processing requirements.
Six models cover maximum glass widths of 1500 mm, 2000 mm and 2500 mm. All models support glass thicknesses of 4–19 mm and drilling diameters from 4 to 50 mm.

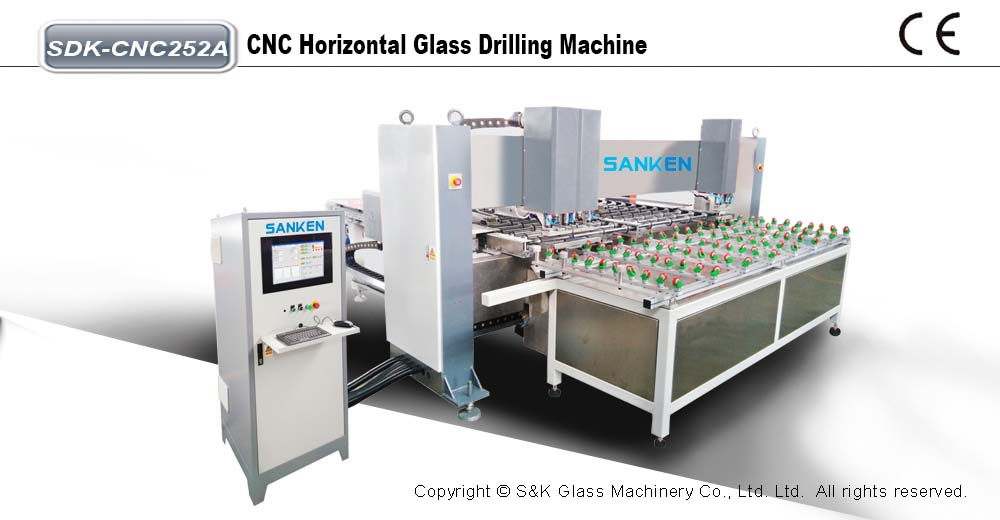

SANKEN SKD-CNC252A CNC Horizontal Glass Drilling Machine
Glass Drilling Functions
CNC-Controlled Hole Positioning
The servo-driven X, Y and Z axes control the movement and positioning required for drilling. Hole locations are programmed according to the glass-processing requirements.
Drilling Diameters from 4 to 50 mm
The SKD-CNC Series supports drilling diameters from 4 to 50 mm. Suitable drilling tools and processing settings are selected according to the required hole size and glass thickness.
One-Group and Two-Group Spindle Configurations
One-group models are available as SKD-CNC151A, SKD-CNC201A and SKD-CNC251A. Two-group models are available as SKD-CNC152A, SKD-CNC202A and SKD-CNC252A.
The spindle configuration can be selected according to the glass sizes, drilling requirements and production arrangement.
Online Glass Processing
The machine is designed for integration with compatible glass-processing equipment, including double edging lines and washing machines. Connected equipment can exchange operating signals to coordinate the glass transfer and processing sequence.
Production Line Integration
The SKD-CNC Series can be included in an automated glass-processing line where glass moves through edging, drilling, washing and unloading operations.
After edging, glass can be transferred to the CNC drilling station for hole processing. The drilled glass can then move to a connected washing machine before unloading.
The drilling machine can exchange control signals with compatible loading, unloading and processing equipment. The communication interface and transfer sequence must be reviewed for each production line.
For installations using equipment from different manufacturers, compatibility should be confirmed before finalizing the line layout and control system.
Machine Configuration
Servo-Driven Axes
The X, Y and Z axes use servo motor control for programmed movement during glass drilling.
CNC Control System
The CNC system coordinates glass positioning and drilling operations according to the selected processing program.
Drilling Spindle Groups
The series offers one-group and two-group spindle configurations. This allows the machine arrangement to be selected according to the required drilling process.
Glass Transfer Interface
The machine can be connected to compatible glass transfer and production equipment. Conveyor alignment, communication signals and machine operating sequences are considered during line integration.
Typical Working Sequence
Glass enters the drilling station from the upstream equipment. The CNC system controls the required drilling positions and operates the configured spindle group or groups.
After drilling, the glass is transferred to the next connected station. Additional washing or unloading operations are carried out by the relevant equipment in the production line.
Machine Details

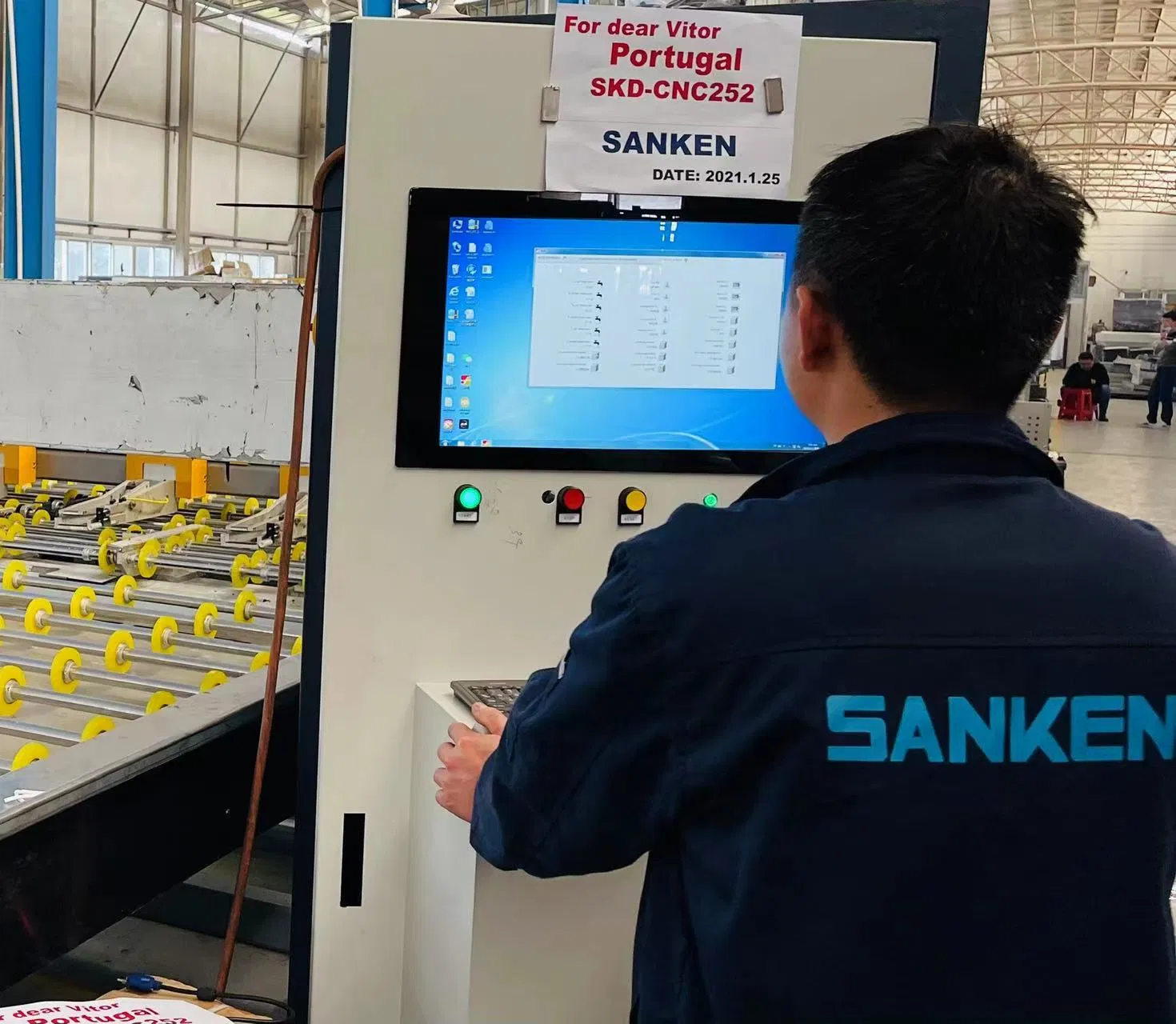

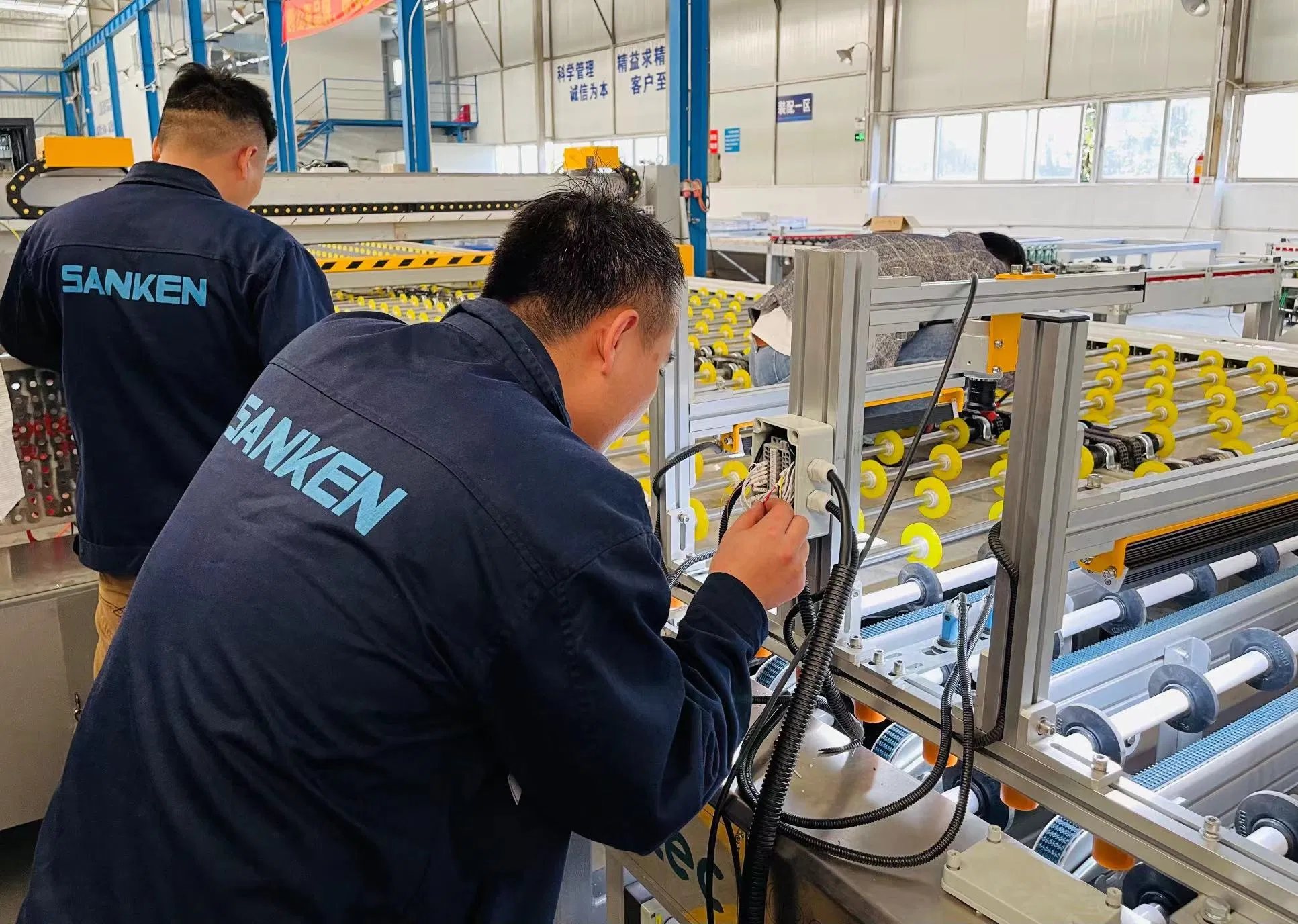

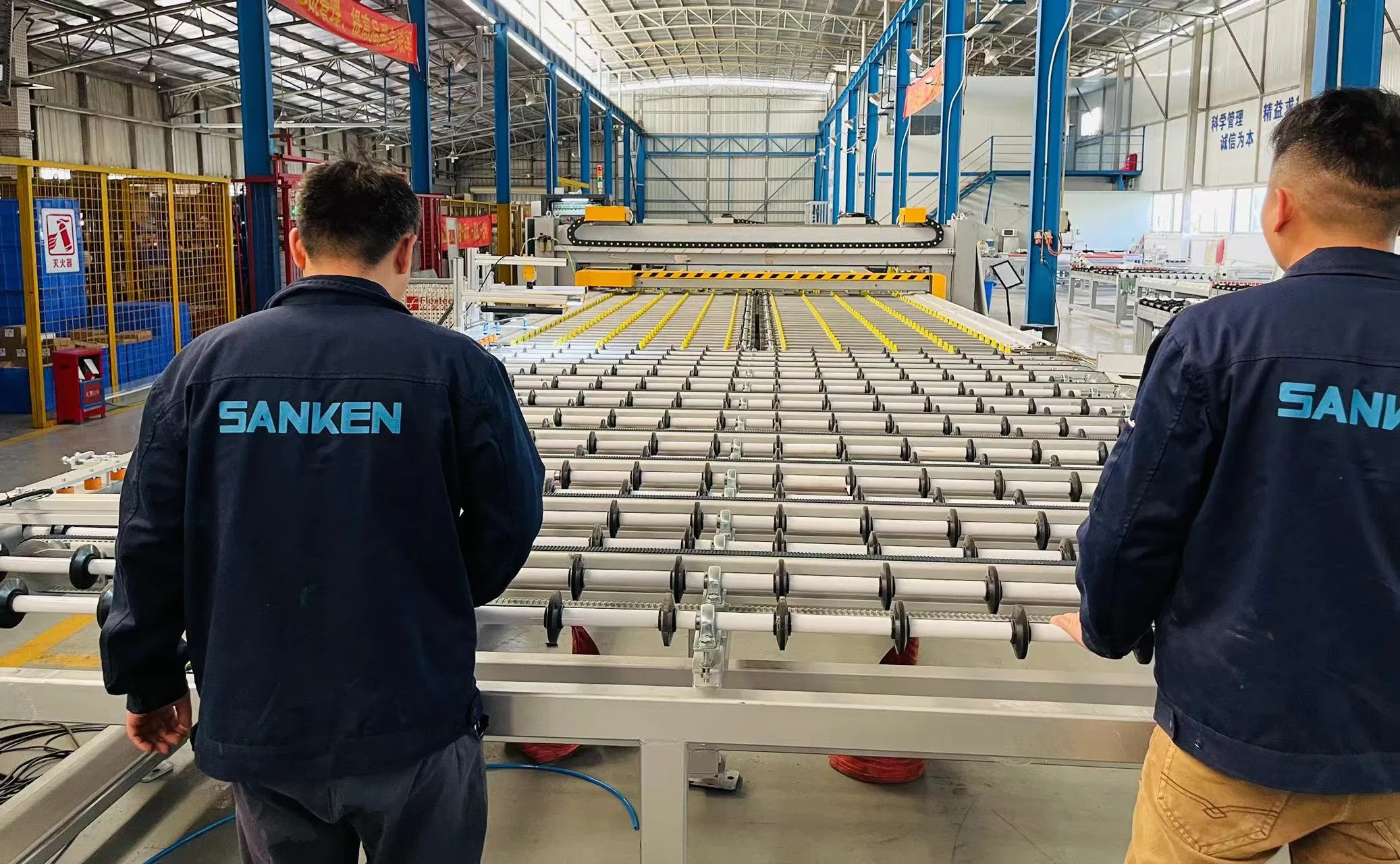

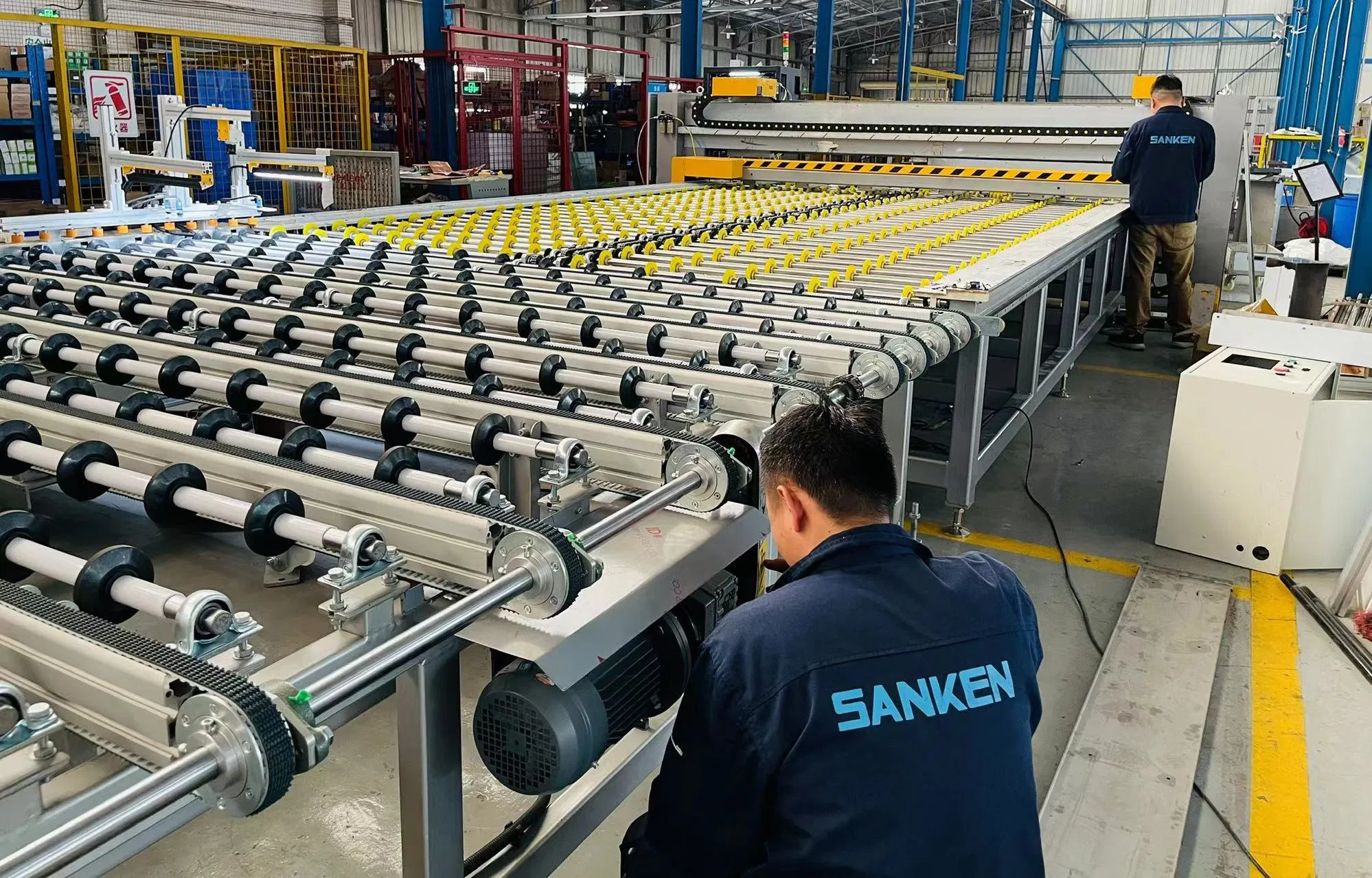

Equipment views of the SKD-CNC252A horizontal glass drilling machine.
Technical Specifications
Six models are available in three processing-width configurations, with either one or two drilling spindle groups.
| Model | Max. Glass Width | Min. Glass Size | Glass Thickness | Drilling Diameter | Spindle Groups | Machine Footprint (L × W) | Weight |
|---|---|---|---|---|---|---|---|
| SKD-CNC151A | 1500 mm | 300 × 800 mm | 4–19 mm | 4–50 mm | 1 | 6500 × 3500 mm | 3000 kg |
| SKD-CNC152A | 1500 mm | 300 × 800 mm | 4–19 mm | 4–50 mm | 2 | 6500 × 3500 mm | 3500 kg |
| SKD-CNC201A | 2000 mm | 300 × 800 mm | 4–19 mm | 4–50 mm | 1 | 6500 × 4000 mm | 3300 kg |
| SKD-CNC202A | 2000 mm | 300 × 800 mm | 4–19 mm | 4–50 mm | 2 | 6500 × 4000 mm | 3600 kg |
| SKD-CNC251A | 2500 mm | 300 × 800 mm | 4–19 mm | 4–50 mm | 1 | 6500 × 4500 mm | 3800 kg |
| SKD-CNC252A | 2500 mm | 300 × 800 mm | 4–19 mm | 4–50 mm | 2 | 6500 × 4500 mm | 4100 kg |
Common Technical Parameters
| Parameter | Specification |
|---|---|
| Glass Thickness | 4–19 mm |
| Drilling Diameter | 4–50 mm |
| Drilling Speed | 0–0.2 m/min |
| Hole Position Deviation | 0.5 mm |
| Total Power | 20 kW |
| Power Supply | 380 V / 50 Hz |
Machine layout, integration interfaces and final specifications should be confirmed for the selected configuration.
Choosing the Right SKD-CNC Model
Model selection depends mainly on the glass processing width and the number of drilling spindle groups required.
1500 mm Processing Width
SKD-CNC151A and SKD-CNC152A support glass widths up to 1500 mm. The 151A uses one spindle group, while the 152A uses two groups.
2000 mm Processing Width
SKD-CNC201A and SKD-CNC202A support glass widths up to 2000 mm. Both models share the same published drilling diameter and thickness ranges, with different spindle-group configurations.
2500 mm Processing Width
SKD-CNC251A and SKD-CNC252A accommodate glass widths up to 2500 mm. The 251A has one spindle group, while the 252A has two.
The drilling pattern, required production cycle and available space should be reviewed together with the selected model.
Applications
The SKD-CNC Series is suitable for drilling flat glass within automated processing lines, particularly where edging, drilling and washing are arranged in sequence.
The machine can be considered for architectural glass, furniture glass and other flat-glass products requiring drilled holes before subsequent processing.
The equipment and drilling tools should be selected according to the glass thickness, required hole dimensions and production-line arrangement.
Frequently Asked Questions
What is an online CNC horizontal glass drilling machine?
It is a CNC drilling machine designed to process glass as part of a connected production line. The SKD-CNC Series can be integrated with compatible edging, transfer and washing equipment.
Which SKD-CNC online models are available?
Six models are available: SKD-CNC151A, SKD-CNC152A, SKD-CNC201A, SKD-CNC202A, SKD-CNC251A and SKD-CNC252A.
What is the difference between the 251A and 252A?
Both models support glass widths up to 2500 mm and drilling diameters of 4–50 mm. The SKD-CNC251A has one spindle group, while the SKD-CNC252A has two spindle groups.
What glass thickness can the machine process?
All six models support glass thicknesses from 4 to 19 mm.
What drilling diameters are supported?
The supported drilling diameter range is 4–50 mm.
Can this machine connect to an existing glass edging line?
Integration may be possible with compatible edging lines and transfer equipment. The mechanical interfaces, glass transfer height and control signals must be checked before installation.
Does the drilling machine wash glass?
Glass washing is performed by a separate washing machine when one is included in the production line. The SKD-CNC drilling machine performs the drilling operation.
What is the hole position deviation?
The specified hole position deviation is 0.5 mm. The applicable drilling requirements should be confirmed for the selected glass size and processing conditions.
How do I choose between one and two spindle groups?
Selection depends on the drilling pattern, hole quantity, required processing sequence and planned production cycle. SANKEN can review the suitable arrangement based on the glass drawings and line layout.
Machine Selection and Line Planning
For SKD-CNC equipment selection, please provide the maximum glass width, thickness range, drilling diameter, hole layout and required production cycle.
For line integration projects, the existing machine layout, conveyor height and equipment communication requirements should also be provided.
