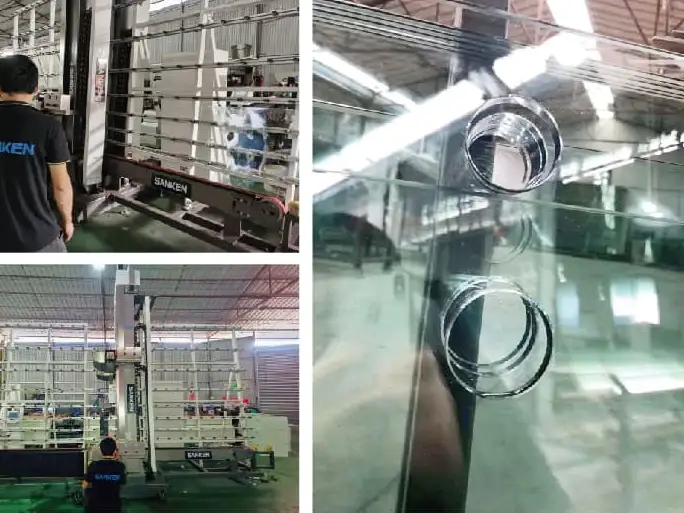

Vertical CNC Glass Drilling Machine 1
Vertical CNC Glass Drilling Machine 2
Vertical CNC Glass Drilling Machine 3
Vertical CNC Glass Drilling Machine 4
Vertical CNC Glass Drilling Machine 5
Vertical CNC Glass Drilling Machine 6
Vertical CNC Glass Drilling Machine 7
Vertical CNC Glass Drilling Machine 8
Vertical CNC Glass Drilling Machine 1
Vertical CNC Glass Drilling Machine 2
Vertical CNC Glass Drilling Machine 3
Vertical CNC Glass Drilling Machine 4
Vertical CNC Glass Drilling Machine 5
Vertical CNC Glass Drilling Machine 6
Vertical CNC Glass Drilling Machine 7
Vertical CNC Glass Drilling Machine 8

Vertical CNC Glass Drilling Machine

SANKEN SKD-V2 Series for Automatic Vertical Glass Drilling

The SANKEN SKD-V2 Series Vertical CNC Glass Drilling Machine is designed for automatic hole drilling in flat glass.

Operators enter the required hole coordinates and drilling parameters through the control interface. The machine then positions the glass and carries out the drilling operation automatically.

Two models are available: SKD-2000V2 and SKD-2500V2, with maximum processing sizes of 2000 × 2000 mm and 2000 × 2500 mm respectively.

Both models support glass thicknesses of 4–19 mm and drilling diameters of 4–50 mm. The vertical conveyor arrangement is suitable for architectural and furniture glass processing.

5.0
design customization

    oops...!

    no product data.

    Go to homepage

    Vertical CNC Glass Drilling Machine

    The SANKEN SKD-V2 Series Vertical CNC Glass Drilling Machine is designed for automatic drilling of flat glass. It combines numerical control, PLC operation and vertical glass conveying to complete programmed hole positioning and drilling.

    After the glass is placed on the conveyor, the operator enters the required X and Y coordinates and drilling parameters. The machine then positions the glass and performs the drilling operation according to the selected settings.

    Two models are available: SKD-2000V2 and SKD-2500V2. Both process glass thicknesses from 4 to 19 mm and drilling diameters from 4 to 50 mm. The maximum glass size is 2000 × 2000 mm for the SKD-2000V2 and 2000 × 2500 mm for the SKD-2500V2.

    SANKEN SKD-V2 Vertical CNC Glass Drilling Machine

    SANKEN SKD-V2 Series Vertical Glass Drilling Machine

    Machine Features

    Automatic Hole Positioning

    Hole coordinates are entered through the control interface. The CNC system controls the positioning and drilling sequence according to the programmed locations.

    PLC Control System

    The human-machine interface works with PLC automatic control to manage glass positioning and drilling operations. Processing parameters can be set before the machine starts.

    Vertical Glass Conveying

    Glass sheets are supported in a vertical position and moved through the machine by the conveyor system. The transmission speed is adjustable from 0 to 12 m/min.

    Servo-Controlled Movement

    The machine uses servo-controlled movement for positioning along the required processing axes. The vertical moving speed is adjustable from 0 to 15 m/min.

    Multiple Hole Processing

    Different hole coordinates can be entered for a glass sheet. The machine can process the programmed drilling positions without requiring the operator to manually locate every hole.

    Two Processing Sizes

    The SKD-2000V2 and SKD-2500V2 provide different maximum processing heights and machine dimensions. Both models share the same glass thickness and drilling diameter ranges.

    Working Process

    Glass Loading → Coordinate Input → Automatic Positioning → CNC Drilling → Glass Discharge

    The operator places the glass on the vertical conveyor and enters the required hole positions and processing parameters through the control interface.

    After the program starts, the machine positions the glass and carries out the drilling operations. The drilling sequence is completed according to the programmed coordinates.

    The machine stops automatically after the programmed work is completed. The glass can then be removed or transferred to the next processing stage.

    Machine Details

    Equipment views of the SANKEN Vertical CNC Glass Drilling Machine.

    SANKEN vertical CNC glass drilling machine equipment view
    SANKEN SKD-V2 vertical glass drilling machine structure
    SANKEN vertical glass drilling machine installation view

    Technical Specifications

    The SKD-V2 Series is available in two processing sizes. Both models support the same glass thickness, drilling diameter and movement speed ranges.

    Parameter SKD-2000V2 SKD-2500V2
    Max. Processing Size 2000 × 2000 mm 2000 × 2500 mm
    Min. Processing Size 680 × 200 mm 680 × 200 mm
    Glass Thickness 4–19 mm 4–19 mm
    Drilling Time 8–15 s/hole 8–15 s/hole
    Drilling Diameter Ø4–50 mm Ø4–50 mm
    Up/Down Moving Speed 0–15 m/min 0–15 m/min
    Transmission Speed 0–12 m/min 0–12 m/min
    Total Power 12 kW 14 kW
    Machine Dimensions 6600 × 1900 × 3600 mm 6600 × 1900 × 4100 mm
    Machine Weight 2600 kg 2900 kg

    Drilling time depends on the hole diameter, glass thickness and selected processing settings.

    SKD-2000V2 and SKD-2500V2

    SKD-2000V2

    The SKD-2000V2 supports a maximum glass size of 2000 × 2000 mm. It has a total power rating of 12 kW, overall machine dimensions of 6600 × 1900 × 3600 mm and a weight of 2600 kg.

    SKD-2500V2

    The SKD-2500V2 supports glass up to 2000 × 2500 mm. It has a total power rating of 14 kW, machine dimensions of 6600 × 1900 × 4100 mm and a weight of 2900 kg.

    Both models support drilling diameters of 4–50 mm and glass thicknesses of 4–19 mm. Model selection should be based on maximum glass dimensions, required hole positions and available factory space.

    Vertical and Horizontal Glass Drilling

    The SKD-V2 Series supports glass in a vertical position and uses an automatic conveyor for glass movement and CNC-controlled drilling.

    Horizontal drilling machines use a horizontal working arrangement. The appropriate machine depends on glass dimensions, the required handling method and the existing production workflow.

    For standalone horizontal CNC drilling, see the CNC Horizontal Glass Drilling Machine (Off-line) .

    Applications

    The SKD-V2 Series is suitable for drilling flat glass used in architectural and furniture applications.

    Typical workpieces include glass doors, partitions, furniture panels and other flat-glass components requiring holes for fittings or assembly.

    The drilling layout should be checked against the glass dimensions, thickness and required hole diameters before processing.

    Frequently Asked Questions

    What is a vertical CNC glass drilling machine?

    A vertical CNC glass drilling machine holds and conveys glass in a vertical position while using numerical control to position and drill holes. The SKD-V2 Series combines CNC positioning with PLC automatic control.

    Which SKD-V2 models are available?

    Two models are available: SKD-2000V2 and SKD-2500V2.

    What is the maximum glass size?

    The SKD-2000V2 supports glass up to 2000 × 2000 mm. The SKD-2500V2 supports glass up to 2000 × 2500 mm.

    What glass thickness can the machine process?

    Both models support glass thicknesses from 4 to 19 mm.

    What drilling diameters are supported?

    The supported drilling diameter range is 4–50 mm.

    How are hole positions entered?

    The operator enters the required X and Y coordinates and drilling parameters through the control interface. The machine then completes the programmed positioning and drilling operations.

    Can the machine drill multiple holes on one glass sheet?

    Yes. Multiple hole positions can be programmed for a glass sheet, allowing the machine to complete the required drilling sequence.

    What is the drilling time per hole?

    The specified drilling time is 8–15 seconds per hole. Actual drilling time depends on the glass thickness, hole diameter and processing settings.

    What is the difference between SKD-2000V2 and SKD-2500V2?

    The main differences are maximum glass size, installed power, machine height and weight. Both share the same specified glass thickness and drilling diameter ranges.

    Equipment Selection

    For SKD-V2 machine selection, please provide the maximum glass dimensions, thickness range, required hole diameters and drilling positions. Glass drawings and factory layout information can help determine the suitable model and installation arrangement.
