SANKEN Glass Straight Line Four Sides Edging Machine
SANKEN SKFE-F Series Glass Straight Line Four Sides Edging Machine is designed for automatic rough edging and seaming of rectangular flat glass. Four groups of grinding spindle mechanisms process the glass edges, with a processing speed of 1–40 m/min.
Glass conveying and spindle opening/closing are servo driven. The machine also features automatic glass length and width detection, CNC-controlled processing settings and an optional Low-E coating deletion function. Three models are available for maximum glass sizes from 2500 × 1800 mm to 5000 × 2800 mm.

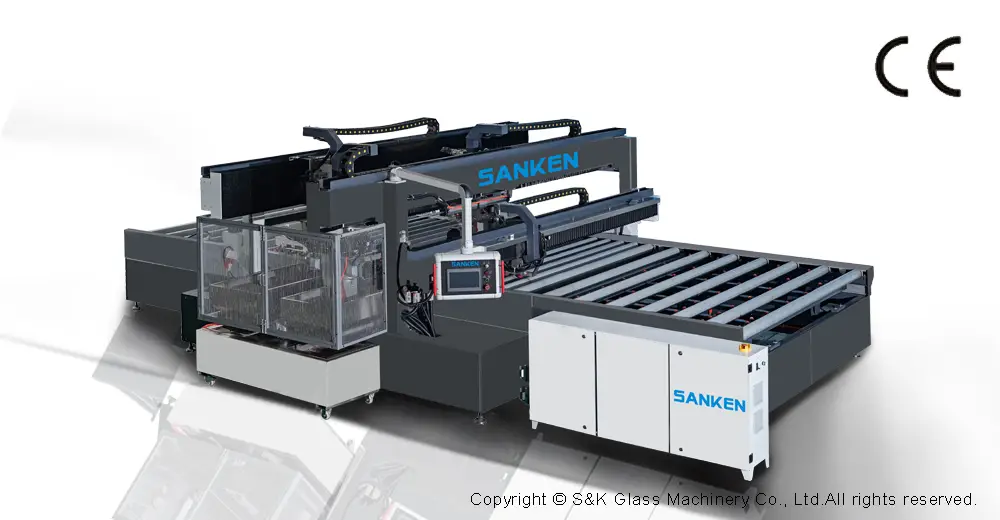

Glass Straight Line Four Sides Edging Machine
The SANKEN SKFE-F Series Glass Straight Line Four Sides Edging Machine is designed for automatic rough edging and seaming of rectangular flat glass.
The machine uses four groups of grinding spindle mechanisms and provides a processing speed of 1–40 m/min. Glass conveying is driven by servo motors for controlled transmission and positioning during the edging process.
Automatic glass length and width detection, servo-controlled spindle adjustment and CNC-controlled processing settings help simplify operation when processing different glass sizes. A Low-E coating deletion function is available as an optional configuration.
SANKEN SKFE-F Series Glass Four Sides Edging Machine
Key Processing Functions
Four-Side Rough Edging and Seaming
Four groups of grinding spindle mechanisms are used for flat-glass rough edging and seaming, allowing the machine to process the four sides of rectangular glass in an automatic production cycle.
Servo-Driven Glass Conveying
Glass conveying is driven by servo motors to support controlled glass transmission and positioning during processing.
Automatic Spindle Adjustment
The opening and closing movement of the grinding spindle groups is servo driven, supporting repeated positioning when different glass sizes are processed.
Automatic Glass Size Detection
The machine automatically detects glass length and width. Processing parameters for different glass thicknesses can be preset through the CNC control system.
Optional Low-E Coating Deletion
A Low-E coating deletion function can be configured as an optional feature according to the production requirement.
Working Sequence
After the glass enters the machine, its dimensions are detected and the grinding spindle positions are adjusted automatically. The glass then passes through the edging process before being discharged from the machine.
Machine Details
Machine structure and processing details of the SANKEN SKFE-F Series Glass Four Sides Edging Machine.
Technical Specifications
| Model | Max. Processing Size | Min. Processing Size | Thickness | Speed | Chamfer Width | Air Pressure | Power | Machine Size | Weight |
|---|---|---|---|---|---|---|---|---|---|
| SKFE-2518F | 2500 × 1800 mm | 750 × 350 mm | 4–12 mm | 1–40 m/min | 0.5–2 mm | 0.6–0.8 MPa | 20 kW, 380 V / 50 Hz | 7300 × 3800 × 2100 mm | 6000 kg |
| SKFE-3725F | 3700 × 2500 mm | 750 × 350 mm | 4–12 mm | 1–40 m/min | 0.5–2 mm | 0.6–0.8 MPa | 20 kW, 380 V / 50 Hz | 7600 × 4800 × 2100 mm | 7000 kg |
| SKFE-5028F | 5000 × 2800 mm | 750 × 350 mm | 4–12 mm | 1–40 m/min | 0.5–2 mm | 0.6–0.8 MPa | 20 kW, 380 V / 50 Hz | 13000 × 4900 × 2100 mm | 8000 kg |
Specifications above are based on the SANKEN product catalogue. Final machine configuration should be confirmed according to the selected model and production requirements.
Choosing the Right SKFE-F Model
SKFE-2518F
For glass up to 2500 × 1800 mm, with the smallest machine footprint among the three catalogue models.
SKFE-3725F
Supports glass up to 3700 × 2500 mm and provides the same 1–40 m/min processing-speed range and 4–12 mm thickness range as the other SKFE-F models.
SKFE-5028F
The largest model listed in the catalogue, designed for glass up to 5000 × 2800 mm.
Common Processing Range
Glass Thickness: 4–12 mm
Processing Speed: 1–40 m/min
Chamfer Width: 0.5–2 mm
Air Pressure: 0.6–0.8 MPa
Total Power: 20 kW, 380 V / 50 Hz
Typical Processing Requirements
The SKFE-F Series is intended for automatic four-side rough edging and seaming of rectangular flat glass where consistent edge preparation and high conveying speed are required.
The appropriate model should be selected according to maximum glass dimensions, production throughput, factory layout and whether the optional Low-E coating deletion function is required.
Frequently Asked Questions
What is the SKFE-F Series used for?
The SKFE-F Series is designed for automatic four-side rough edging and seaming of rectangular flat glass.
What is the maximum processing speed?
All three catalogue models have a specified processing-speed range of 1–40 m/min.
What glass thickness can the machine process?
The catalogue specifies a glass thickness range of 4–12 mm for SKFE-2518F, SKFE-3725F and SKFE-5028F.
What is the chamfer width?
The specified chamfer width is 0.5–2 mm.
Does the machine detect the glass size automatically?
Yes. The catalogue states that the machine has automatic glass length and width detection.
Is Low-E coating deletion available?
Yes. Low-E coating deletion is listed as an optional function.
How do I choose between SKFE-2518F, SKFE-3725F and SKFE-5028F?
The main selection factor is maximum glass size. The three models support maximum sizes of 2500 × 1800 mm, 3700 × 2500 mm and 5000 × 2800 mm respectively.
Equipment Selection
For SKFE-F model selection, provide the maximum and minimum glass dimensions, glass thickness, expected production speed, factory layout and whether Low-E coating deletion is required.
