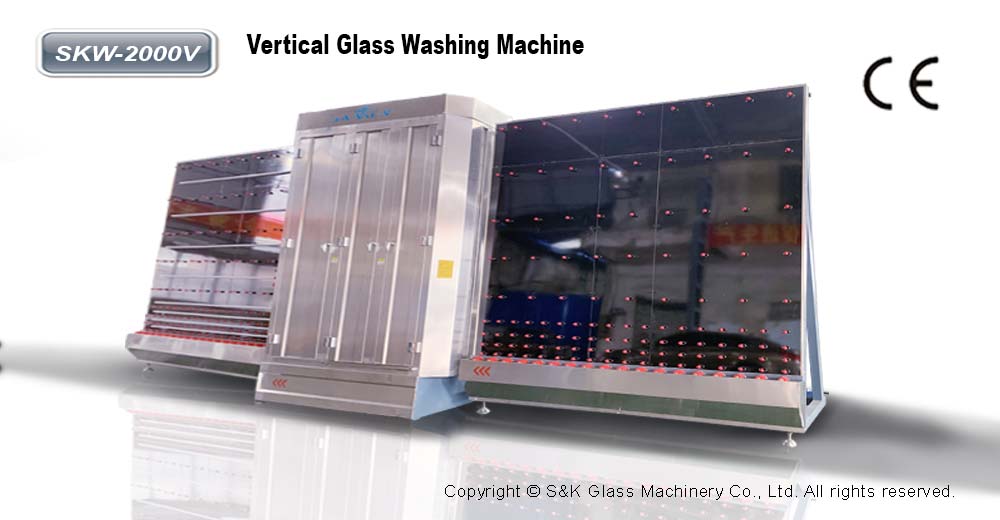

Vertical Glass Washing Machine | Low-E Vertical Glass Washer - SKW-2000V

Vertical Glass Washing Machine | Low-E Vertical Glass Washer - SKW-2000V

The SANKEN SKW-2000V is a highly efficient vertical glass washing machine perfectly suited for insulating glass lines or independent vertical glass processing

. Designed with a space-saving footprint, it is highly suitable for factories with limited area

. Its protective cover and structure framework are constructed from stainless steel and specially treated materials

. Featuring three (3) groups of cleaning brushes and a high-pressure air knife system, this machine is specially designed for washing Low-E glass, coated glass, and common float glass, delivering flawless cleaning and drying results

Inquiry

Write a Review

Vertical Glass Washing Machine | Low-E Vertical Glass Washer - SKW-2500V-1

Why Choose the SANKEN SKW-2000V Vertical Washer?

When factory floor space is limited, or when you need to connect a washer to vertical CNC centers, vertical drilling machines, vertical sand blasting machines, or vertical edging machines, the SKW-2000V is your ultimate solution. It maximizes space utilization while providing industrial-grade cleaning performance through its intelligent mechanical stepless speed regulation.

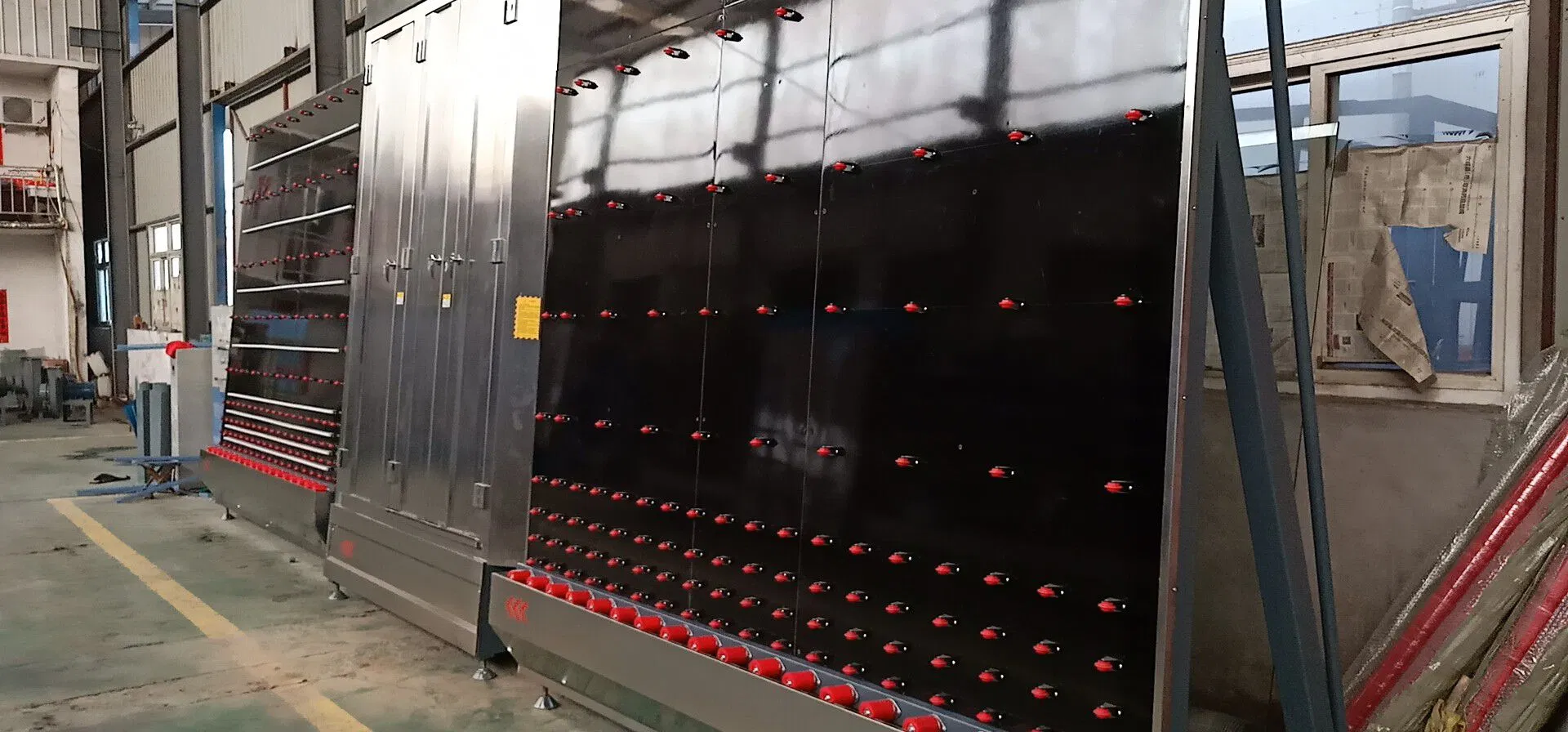

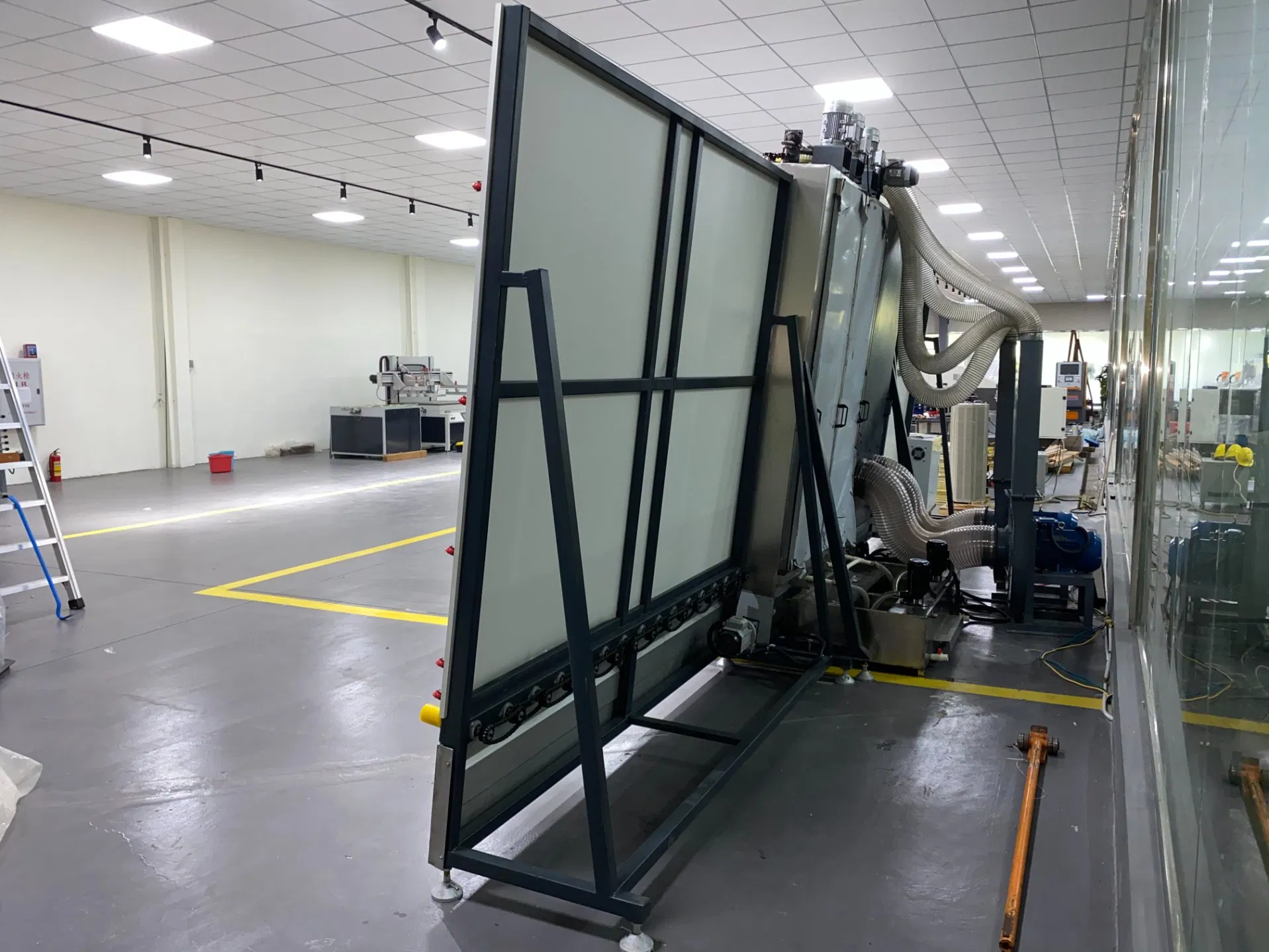

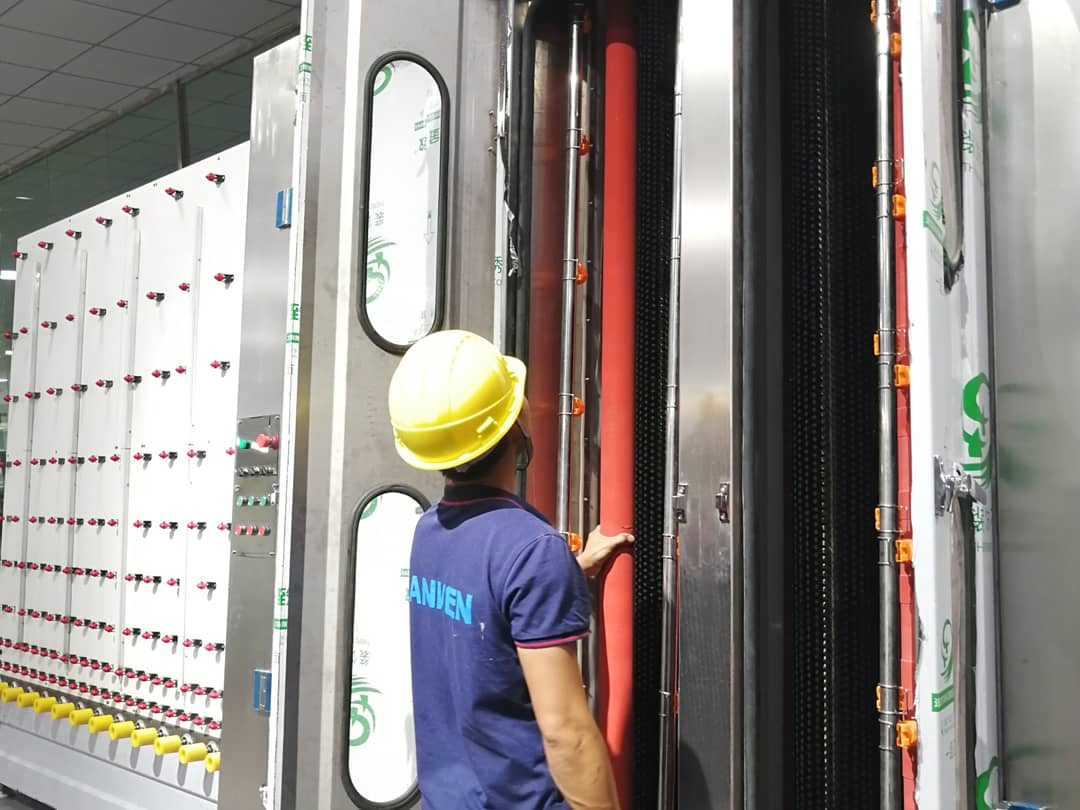

Details & Real Shots

Vertical Glass Washing Machine | Low-E Vertical Glass Washer - SKW-2500V-1

Vertical Glass Washing Machine | Low-E Vertical Glass Washer - SKW-2500V-2

Vertical Glass Washing Machine | Low-E Vertical Glass Washer - SKW-2500V-3

Core Advantages

Vertical Glass Washing Machine | Low-E Vertical Glass Washer - SKW-2000V 12

Space-Saving & Versatile Integration

Its vertical design is highly suitable for factories with limited area. It can be used for insulating glass lines or seamlessly connected with various vertical glass processing equipment for automated continuous production.

Vertical Glass Washing Machine | Low-E Vertical Glass Washer - SKW-2000V 13

Low-E Glass Compatible

Features a special design specifically for LOW-E glass washing. It is equipped with three (3) groups of cleaning brushes to ensure sensitive coatings are thoroughly cleaned and perfectly protected.

Vertical Glass Washing Machine | Low-E Vertical Glass Washer - SKW-2000V 14

High-Pressure Air Knife Drying

Adopts a specially designed high-pressure air knives system and a unique drying design to guarantee perfect, watermark-free drying for all specifications of glass.

Vertical Glass Washing Machine | Low-E Vertical Glass Washer - SKW-2000V 15

High Durability & Stability

The protective cover and structure framework are installed with stainless steel or other special treatment steel for supreme corrosion resistance. The transmission system uses intelligent mechanical stepless speed regulation to achieve high stability and efficiency.

Model	Max.Processing Size	MIn.Processing Size	Processing Thickness	Cleaning Speed	Total Power	Size	Weight
SKW-1800V	1800*3000mm	400*400mm	3~19mm	5~10m/min	20KW	760025002800mm	2.8 Tons
SKW-2000V	*20003000mm**	*400400mm**	3~19mm	5~10m/min	20KW	*760025003050mm*	2.8 Tons
SKW-2500V	2500*3000mm	400*400mm	3~19mm	5~10m/min	26KW	850025003300mm	3.0 Tons

🎁 Planning your automated line? 👉 [Click Here to Request the CAD Footprint Layout for SKW-2500V]

FAQ

About Voltage

Yes, the voltage can be customized (e.g., 220V/380V/415V/480V, 50/60Hz) to perfectly match your local factory's electrical standards.

Guarantee & Warranty

We offer a standard 1-year guarantee. SANKEN provides lifelong online technical support and can dispatch experienced engineers overseas for installation and training.

About Delivery Time

Generally 30 to 45 working days after receiving the advance payment, depending on your specific customization requirements.

About Payment Terms

30% shall be paid by T/T as down payment in advance; 70% balance shall be paid off by T/T before shipment.

Is this vertical washing machine suitable for cleaning Low-E glass?

Yes, absolutely. The SKW-2000V features a special design tailored for LOW-E glass washing. It is equipped with three (3) groups of specialized cleaning brushes to safely and perfectly clean coated and Low-E glass without damaging the sensitive surface.

Can this machine be connected with other vertical processing equipment?

Yes. It can be directly used for an insulating glass line or seamlessly connected with vertical glass processing equipment, such as vertical CNC processing centers, vertical drilling machines, vertical sand blasting machines, and vertical edging machines. It is highly suitable for factories with limited floor space.

How is the machine's rust and corrosion resistance?

Extremely excellent. The protective cover and structure framework are constructed with stainless steel or other special treatment steel, ensuring long-lasting durability and preventing rust even in a constantly wet washing environment.
