Why Choose SANKEN for Your Insulating Glass Production Line?
SANKEN configures insulating glass production lines according to your glass size, IGU structure, required production capacity, factory layout and automation requirements. Depending on the selected configuration, the line can integrate Low-E coating deletion, glass washing and drying, spacer preparation, insulating glass assembly, gas filling, pressing, sealing, and automatic glass loading and unloading.

Integrated Automatic Production
The production line can connect glass loading, Low-E coating deletion, washing and drying, insulating glass assembly, gas filling, pressing, sealing and unloading into a continuous production process, reducing manual handling between processing stages.

PLC and Touch-Screen Control
The line uses PLC and touch-screen control for centralized operation and production adjustment. Frequency-controlled conveying allows processing speed to be adjusted according to glass specifications and production requirements.

Low-E Glass Processing
For Low-E glass production, the line can be equipped with automatic coating deletion and coating-side identification. The washing section is designed to clean glass while protecting the coated surface during processing.

Automatic Assembly, Gas Filling and Pressing
Automatic glass size detection, IGU assembly, gas filling and pressing can be integrated into the production line to improve process consistency and reduce manual operation.

Automatic Two-Component Sealing
The insulating glass line can be connected with an automatic two-component sealing system for secondary sealing. Servo and CNC control support stable sealant application for different insulating glass sizes and configurations.

Automatic Loading and Unloading
Servo-controlled glass loading and unloading equipment can be added according to the required automation level, helping reduce manual glass handling and connect the insulating glass line with upstream or downstream processes.




Automatic Insulating Glass Production Process

Glass Loading → Low-E Coating Deletion → Washing & Drying → Spacer Preparation → IGU Assembly → Gas Filling & Pressing → Secondary Sealing → Glass Unloading

The exact production process and equipment configuration can be adjusted according to the customer's insulating glass specifications, spacer system, Low-E processing requirements, required capacity and available factory space.





Auxiliary Equipment for Insulating Glass Production
SANKEN can configure auxiliary equipment according to the required IGU production process, spacer system, sealing method and automation level.






Automatic Aluminum Spacer Bending Machine



Automatic Desiccant Filling Machine






Butyl Extruder



Two-Component Sealant Extruder






Sealing Table



Spacer Frame Conveyor






Hydraulic Lifting Platform



Inert Gas Filling Machine







Insulating Glass Production Line Layout Examples
SANKEN plans insulating glass production lines according to factory dimensions, production flow, required capacity and automation requirements. The following drawings show examples of standalone and integrated production-line layouts.



Automatic IG Production Line

Example layout for an automatic insulating glass production line, arranged according to production flow and available factory space.




Tempering + IG + PVB Lamination

Integrated factory layout combining glass tempering, insulating glass processing and PVB laminated glass production.




Tempering + IG Production Line

Example factory arrangement integrating a glass tempering line with an insulating glass production line.





Insulating Glass Structure and Applications
Insulating glass units typically consist of two or more glass panes separated by a spacer system, with a sealed cavity that can be filled with inert gas depending on the required configuration. IGUs are widely used in architectural windows, curtain walls, commercial buildings and other applications requiring improved thermal and acoustic performance.






IGU Structure



Commercial Building Applications





Architectural Glass Applications



Finished Insulating Glass Units







Insulating Glass Production Line Planning & Project Support

SANKEN has been exporting glass-processing machinery since 2002. For insulating glass production projects, we can support customers with equipment configuration, production-line planning, factory layout, equipment manufacturing, pre-shipment inspection, installation, commissioning, operator training and after-sales technical support.

To configure a suitable insulating glass production line, customers can provide the required glass dimensions, glass thickness, IGU structure, spacer type, target production capacity, Low-E processing requirements, factory dimensions and preferred automation level.

At the test site, the technicians started the joint production line. After the original glass was processed by the high-precision edge grinding machine, it was seamlessly connected to the high-pressure air cleaning machine through the intelligent conveyor belt, without any manual intervention.



1.Pioneered positioning mode: Non touch glass after positioning probe switch. Longer life, more convenient operation and maintenance;

2.Patent structure, processing glass thickness 3~12mm;

3.All imported servo electronic, to make the equipment more stable and reliable;

4.Transmission using a toothed chain transmission, more stable, more static;

5.Opening & Closing using rack drive, speed up to 40 meters per minute, more accurate, more durable;

6.Hemline grinding function.



Glass Automatic Four Sides Edger is designed for glass chamfering with features of economy, efficiency and automatic identification of glass size and thickness. This machine is suitable for processing the construction glass, insulating glass of window and door and other different size flat glass with a large quantity. Being connected with other machines, the production efficiency can be improved deeply.



1.Adopt the servo-driven, annular timing belt and rubber roller for conveying and polyurethane wheel for press which ensures the stable glass transmission, accurate positioning and excellent grinding performance.

2.The automatic opening and closing mechanism of grinding motor and lateral pressing wheel are adopted the gear reducer and servo driver. Assembling with the ball screw rod, liner guide rail, pinion and rack, the mechanism can be accuracy.

3.The motor rotation system adopts the gear reducer and servo driver that make it position precisely.

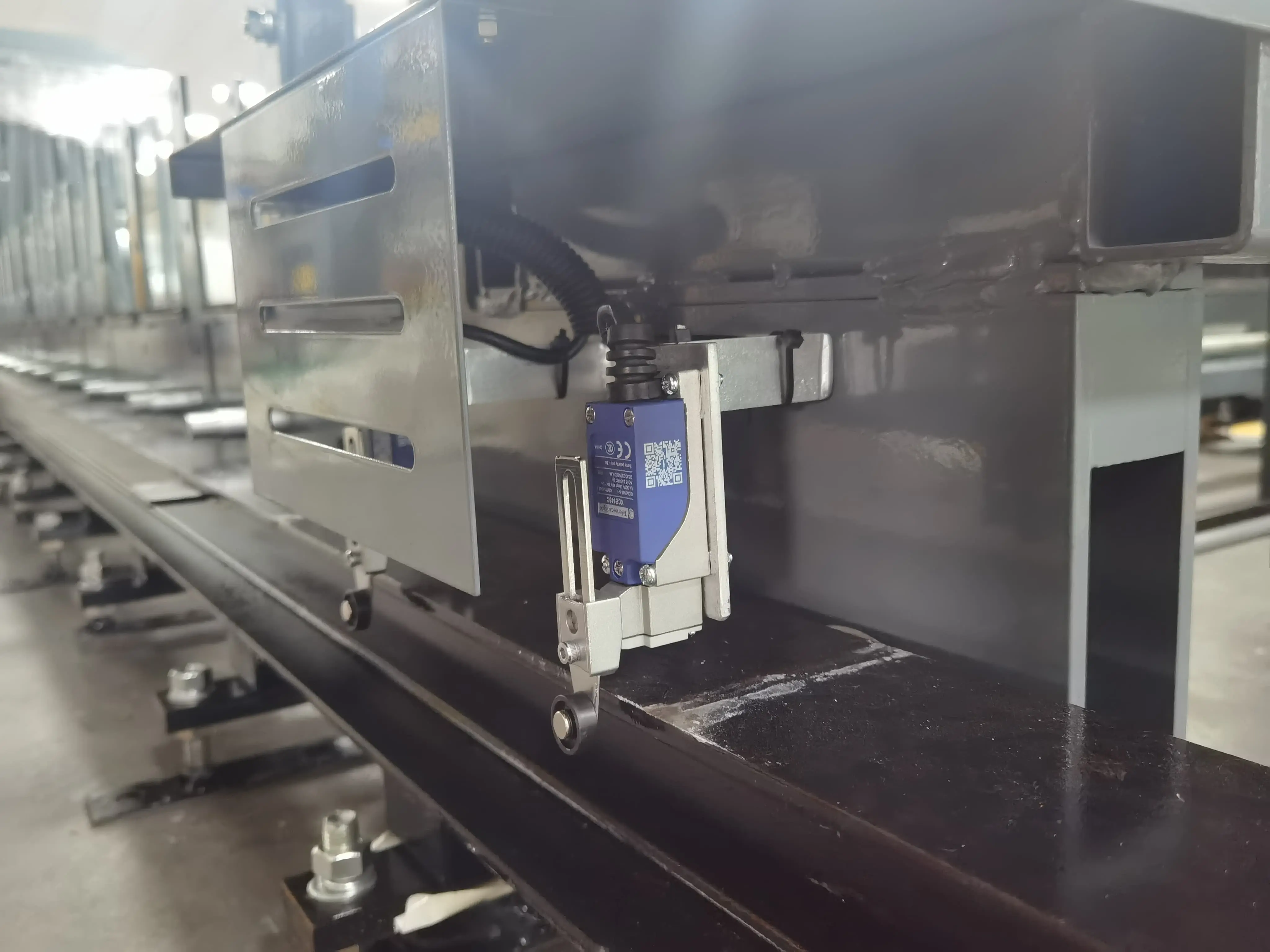

4.Adopt limit switch probe positioning instead of touch glass that avoid the distress of parameters resetting due to the replacement of probe. This novel design greatly improves the life of the limit switch probe and makes the operation and maintenance more convenient.

5.Adopt human interface and PLC control system, easy operate.



Highly intelligent high-speed four-side grinding is widely used in the fine edge grinding of door and window glass. For developed countries, they need it very much, and for developing countries, which do not have high requirements for edge grinding quality, it will also be completely suitable for them. Use seaming machine to grind the edge to achieve the requirements of tempered edge grinding.

Recently, SANKEN successfully completed the delivery of the autoclave, marking a new level of the company's technical strength and market recognition in the field of high-end equipment manufacturing. The shipped products will be used in the production line of a well-known company in the Middle East, helping customers achieve green, safe and efficient production transformation. As an industry-leading industrial equipment supplier, SANKEN always takes safety as the core and customer needs as the guide, and continues to promote the technological innovation and scenario-based application of autoclaves to create long-term value for global customers.

1. Strictly control safety standards and create a full-cycle safety assurance system
As the core reaction equipment in high temperature and high pressure environments, the safety of autoclaves directly affects production stability and personnel safety. SANKEN's new generation of autoclaves adopts a four-fold safety protection design
1. Intelligent monitoring system: integrated real-time sensors such as pressure, temperature, and liquid level to trigger automatic shutdown;
2. Redundant structure design: double insurance pressure relief valve and multi-layer composite material autoclave body (compressive strength up to 50MPa), passed ASME, CE and other international certifications;
3. Stable operation: reduce the risk of unplanned downtime;
4. Full life cycle service*: provide customized safety solutions from installation and commissioning to regular maintenance, and customers have fast fault response time

The key role and technical advantages of autoclaves in laminated glass production**

Laminated glass (also known as laminated glass) is a safety material widely used in construction, automobiles, photovoltaics and other fields. Its core production process cannot be separated from the key support of autoclaves. Through high temperature and high pressure environment, the autoclave can achieve efficient bonding between glass and interlayers (such as PVB, EVA, SGP, etc.), ensuring that the product has impact resistance, explosion-proof, sound insulation and other characteristics. The following are the specific applications and technical highlights of autoclaves in laminated glass production:

I. The core process of autoclaves in laminated glass production

1. Pre-pressing and exhausting stage

- After the glass and the interlayer are initially overlapped, the air needs to be exhausted through the pre-pressing equipment to prevent bubbles from being generated during the high pressure process.
2. High temperature and high pressure bonding

- The pre-pressed glass is sent into the autoclave, and continuously heated and pressurized for 2-4 hours under **120-150℃, 1.1-1.5MPa** environment to completely melt the interlayer and tightly bond it to the glass.
3. Gradient cooling and shaping

- Slowly cool down through the precise temperature control system to avoid deformation or debonding of the glass due to temperature difference stress.

As the core equipment of the laminated glass industry chain, the technological innovation of the autoclave has directly promoted the breakthrough of downstream product performance and application scenarios. SANKEN will continue to deepen its high-pressure forming field, and enable customers to upgrade their competitiveness in the fields of safety glass, new energy, and smart buildings with more precise pressure control technology, more efficient energy utilization, and more intelligent operation and maintenance system.

Introduction
In 2025, the demand for advanced glass machinery continues to rise. Choosing the right glass machinery suppliers is no longer just about price — it's about finding a partner who can deliver consistent quality, timely delivery, and technical support that keeps your production running smoothly.




1. Evaluate Product Quality and Technology


Inspect the supplier's manufacturing process and quality control standards.



Look for custom glass processing equipment that meets international certifications (CE, ISO).



Ask for sample projects or client references.








3. After-Sales Service and Technical Support


Check if they provide installation, training, and 24/7 customer service.



Ensure there are clear warranty terms and spare part availability.




4. Pricing vs. Long-Term Value


A lower initial quote might cost more in downtime later.



Calculate ROI based on machine efficiency, energy consumption, and maintenance costs.





Conclusion + Call to Action
Finding reliable glass machinery suppliers is about building a long-term, trust-based partnership. If you are looking for tailored CNC cutting, washing, or tempering solutions, 👉 Contact SANKEN today for a consultation and free production line assessment.

#module-S5VfCriCphOxI {padding-top: 4vw; padding-bottom: 4vw;}


#module-B8cxhEM2sAQMb {padding-top:4vw;padding-bottom: 4vw}



#module-i1yQV1w2jWN93 {padding-top:4vw;padding-bottom: 4vw}


#grid-BDY4y0MRx7oLYve{padding-right:var(--default-paddingRight);padding-left:var(--default-paddingLeft);}


#unit-fcxPVv6grtlXduR .ce-image_inner{justify-content:center;}#unit-fcxPVv6grtlXduR .ce-image_item{--svg-color:rgba(21, 132, 199,1);}#unit-fcxPVv6grtlXduR .ce-image{--image-effect:1;}












#cell-NUwb1hgbluppa0r{display: flex; flex-direction: column; justify-content: center;}


#unit-iOCw6FUmll4S08n {padding-left:2vw;padding-right:2vw;}
@media(max-width:1199px){#unit-iOCw6FUmll4S08n {padding-top:2vw;}}


Project Background




#unit-g8rnVOmNtsgCl0m {padding-left:2vw;padding-right:2vw; padding-top:1vw;padding-bottom: 2vw;}

The Kazakhstan tempered glass project marks a significant milestone in our company’s global expansion strategy. With the rapid growth of construction and infrastructure in Central Asia, demand for high-quality tempered glass has been rising steadily. By establishing a local production line, we are not only meeting this demand but also introducing advanced automation and glass processing expertise to the region. This initiative strengthens our ability to provide timely service, reduce logistics costs, and deliver world-class products, while also contributing to the modernization and sustainable development of the glass industry in Kazakhstan.







#grid-N4FbfWTgrX9pbjW{padding-right:var(--default-paddingRight);padding-left:var(--default-paddingLeft);}
@media(max-width:1199px){#grid-N4FbfWTgrX9pbjW {flex-direction: column-reverse;}}


#cell-78QCDTaHt1yyy0l{display: flex; flex-direction: column; justify-content: center;}


#unit-HwY5ztOXALw9yYM {padding-left:2vw;padding-right:2vw;}
@media(max-width:1199px){#unit-HwY5ztOXALw9yYM {padding-top:2vw;}}


Installation and Commissioning




#unit-nsZ0hEzOL2lQahZ {padding-left:2vw;padding-right:2vw; padding-top:1vw;padding-bottom: 2vw;}

From September 15 to 26, our technical team worked on the installation and commissioning of the tempered glass production line in Kazakhstan. The process included equipment assembly, calibration, and multiple rounds of testing to ensure stable operation and product quality. Despite a tight schedule and cross-cultural challenges, the project was completed on time through close collaboration with local partners, reflecting the professionalism and dedication of our team.





#unit-woKccV0D36fsn1i .ce-image_inner{justify-content:center;}#unit-woKccV0D36fsn1i .ce-image_item{--svg-color:rgba(21, 132, 199,1);}#unit-woKccV0D36fsn1i .ce-image{--image-effect:1;}













#module-7nlfT7QZSsZ9Y {padding-top:4vw;padding-bottom: 4vw}


#grid-1cqgLp5fFMRPg2d{padding-right:var(--default-paddingRight);padding-left:var(--default-paddingLeft);}


#unit-QsiChrkMJ62H0oP .ce-image_inner{justify-content:center;}#unit-QsiChrkMJ62H0oP .ce-image{--image-effect:1;}@media(max-width:1199px){#unit-QsiChrkMJ62H0oP .ce-image_item{--svg-color:rgba(21, 132, 199,1);}}












#cell-9uZ50wd0nCKFgj8{display: flex; flex-direction: column; justify-content: center;}


#unit-MiyPpbedOHQDN1F {padding-left:2vw;padding-right:2vw;}
@media(max-width:1199px){#unit-MiyPpbedOHQDN1F {padding-top:2vw;}}


Advanced Technology and Automation




#unit-G1fOwok1zrfPFcI {padding-left:2vw;padding-right:2vw; padding-top:1vw;padding-bottom: 2vw;}

The production line is equipped with cutting-edge automation systems, ensuring consistent product quality, high efficiency, and optimized energy consumption. The intelligent control panel allows operators to monitor and adjust parameters in real time, further enhancing operational stability and safety. This integration of advanced technology reflects our company’s ongoing commitment to innovation and sustainable development.







#grid-MGwHV3FWKjEntCS{padding-right:var(--default-paddingRight);padding-left:var(--default-paddingLeft);}
@media(max-width:1199px){#grid-MGwHV3FWKjEntCS {flex-direction: column-reverse;}}


#cell-yhywmSll8henJSD{display: flex; flex-direction: column; justify-content: center;}


#unit-uaq9KixMCJFeuEj {padding-left:2vw;padding-right:2vw;}
@media(max-width:1199px){#unit-uaq9KixMCJFeuEj {padding-top:2vw;}}


Successful Launch and Future Outlook




#unit-I6WYixtBQ8pMIUP {padding-left:2vw;padding-right:2vw; padding-top:1vw;padding-bottom: 2vw;}

On September 27, the production line was officially put into operation, and the first batch of tempered glass successfully rolled off the line. The successful commissioning not only highlights our company’s technical expertise but also underscores our ability to deliver reliable solutions to global partners.
Looking ahead, we will continue to expand our international footprint, provide innovative glass processing technologies, and build long-term partnerships across regions. This milestone in Kazakhstan is just the beginning of our broader vision to bring world-class glass manufacturing solutions to markets worldwide.
