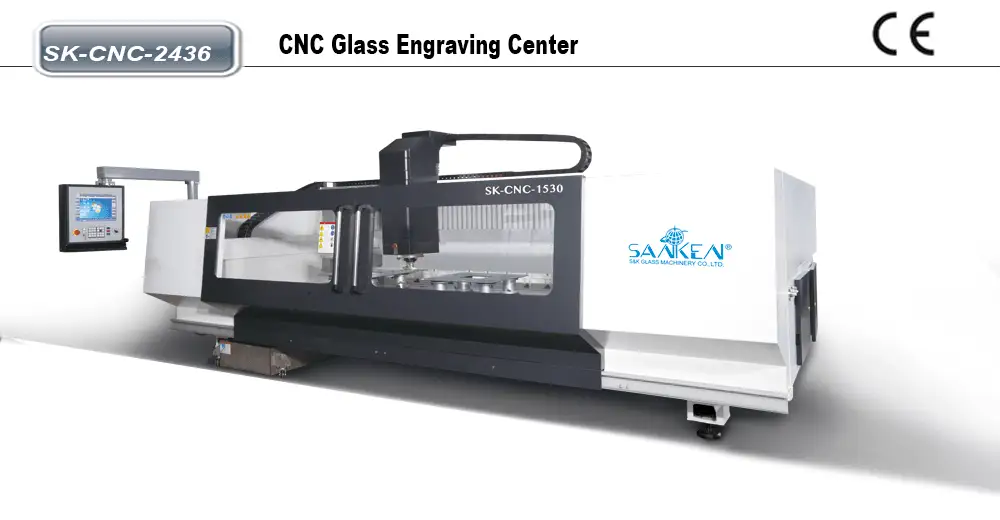

SANKEN CNC Glass Engraving Center
The SANKEN SKE-CNC Series CNC Glass Engraving Center is designed for decorative patterns and groove processing on flat glass and mirror surfaces.
CAD graphics can be imported into the control software to generate CNC machining paths. Different engraving tools can be selected according to the required pattern and groove finish.
Three models are available: SKE-CNC-1630, SKE-CNC-2030 and SKE-CNC-2436.
The series supports glass thicknesses of 3–40 mm, spindle speeds of 135–6000 rpm and processing sizes up to 3600 × 2400 mm, depending on the model.
CNC Glass Engraving Center
The SANKEN SKE-CNC Series CNC Glass Engraving Center is designed for decorative engraving and groove processing on flat glass and mirror surfaces. It is suitable for producing patterns, lines and decorative details using programmed CNC tool movements.
CAD drawings can be imported into the CAD/CAM software to generate machining paths. The CNC system controls the spindle and tool movements during processing, allowing different decorative designs to be produced according to the selected program.
The series includes SKE-CNC-1630, SKE-CNC-2030 and SKE-CNC-2436. All three models process glass thicknesses from 3 to 40 mm, with spindle speeds from 135 to 6000 rpm. The largest configuration accommodates glass up to 3600 × 2400 mm.
SANKEN SKE-CNC Glass Engraving Center
Glass Engraving Capabilities
Decorative Glass Surface Engraving
The machine can engrave decorative patterns on flat glass surfaces. Tool movements follow the programmed design, allowing straight lines, curved patterns and other graphics to be processed.
Groove Processing
Grooves can be machined into the glass surface using suitable engraving tools. The groove shape and finish depend on the tool profile, processing depth and machining settings.
Glass and Mirror Decoration
The SKE-CNC Series can be used for decorative work on flat glass and mirror surfaces. Processing tools and parameters should be selected according to the glass construction and required design.
Groove Finishing
Suitable finishing tools can be used to refine the machined grooves. The required surface finish should be considered when selecting the tooling arrangement.
CAD/CAM Programming and CNC Control
CAD Drawing Input
Glass engraving patterns can be prepared as CAD graphics and imported for processing. This allows decorative designs to be prepared before machining.
Automatic Tool Path Generation
The CAD/CAM software generates CNC machining paths from the imported graphics. The operator can prepare the processing program according to the design and selected tools.
CNC-Controlled Engraving
The CNC system controls spindle movement during engraving. Programmed machining paths help maintain consistent processing positions for repeated decorative designs.

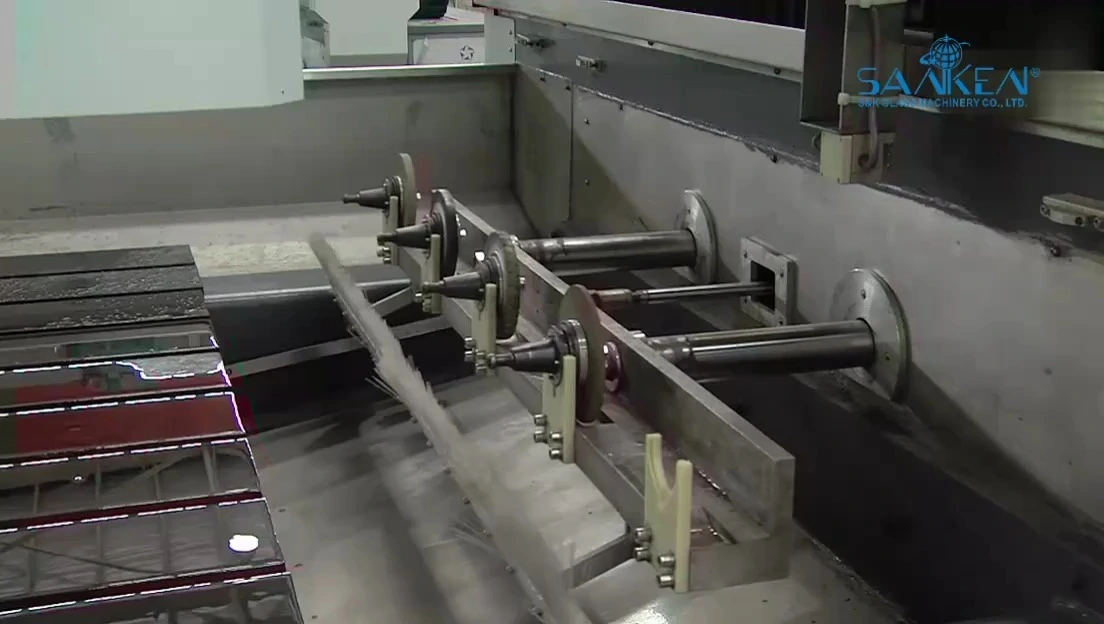

Multiple Tool Configurations
The SKE-CNC-1630 has a tool library configuration of 2–4, while SKE-CNC-2030 and SKE-CNC-2436 have configurations of 2–5. The final tool arrangement should match the required engraving and finishing operations.
Typical Engraving Workflow
The decorative pattern is prepared in CAD software and converted into a machining program. After the glass is positioned on the machine, the CNC system follows the programmed path to perform the engraving operation.
Engraving tools, machining depth and processing settings are selected according to the required pattern and surface finish.

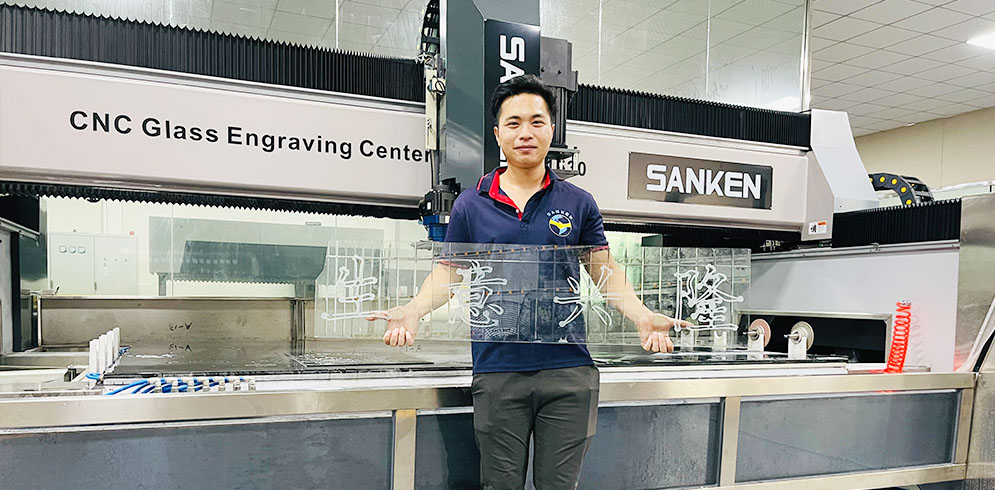

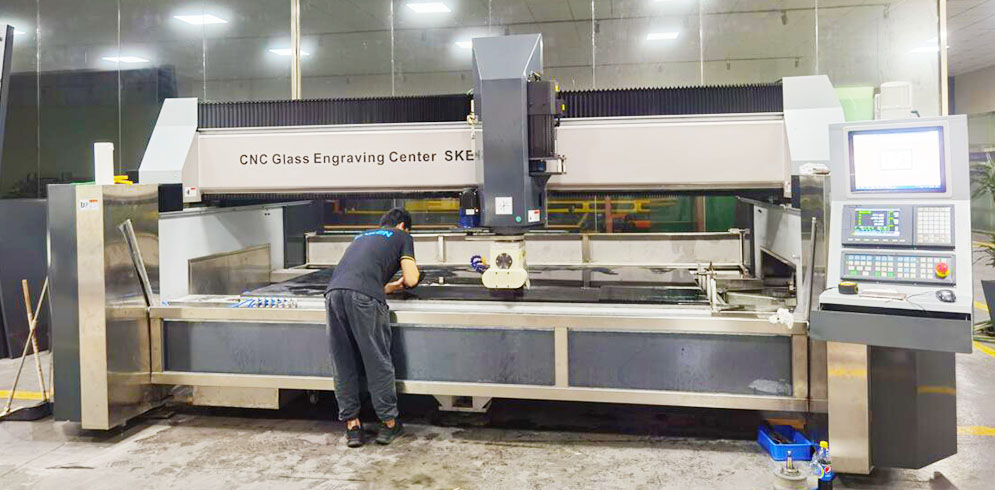

Machine Details and Engraving Examples
Equipment views and decorative glass processing examples from the SKE-CNC Series.
Technical Specifications
The SKE-CNC Series is available in three processing sizes. All models use a 7.5 kW spindle and support glass thicknesses from 3 to 40 mm.
| Parameter | SKE-CNC-1630 | SKE-CNC-2030 | SKE-CNC-2436 |
|---|---|---|---|
| Max. Processing Size | 1600 × 3000 mm | 3000 × 2000 mm | 3600 × 2400 mm |
| Min. Processing Size | 200 × 200 mm | 200 × 200 mm | 200 × 200 mm |
| Glass Thickness | 3–40 mm | 3–40 mm | 3–40 mm |
| Spindle Speed | 135–6000 rpm | 135–6000 rpm | 135–6000 rpm |
| Tool Library | 2–4 | 2–5 | 2–5 |
| Spindle Power | 7.5 kW | 7.5 kW | 7.5 kW |
| Total Power | 17 kW | 17 kW | 17 kW |
| Voltage | 380 V / 50 Hz | 380 V / 50 Hz | 380 V / 50 Hz |
| Machine Dimensions | 5600 × 3200 × 2600 mm | 5600 × 3600 × 2600 mm | 6200 × 3400 × 2600 mm |
| Weight | 6000 kg | 6500 kg | 8000 kg |
Final tooling, machine configuration and processing settings should be confirmed according to the required glass design.
Choosing the Right SKE-CNC Model
SKE-CNC-1630
The SKE-CNC-1630 supports a maximum glass size of 1600 × 3000 mm. It has a tool library configuration of 2–4 and machine dimensions of 5600 × 3200 × 2600 mm.
SKE-CNC-2030
The SKE-CNC-2030 provides a maximum processing area of 3000 × 2000 mm, with a tool library configuration of 2–5. It has a machine weight of 6500 kg.
SKE-CNC-2436
The SKE-CNC-2436 accommodates glass up to 3600 × 2400 mm. It is the largest processing-size configuration in the series, with overall dimensions of 6200 × 3400 × 2600 mm and a machine weight of 8000 kg.
The appropriate model should be selected according to glass dimensions, required engraving patterns, tooling requirements and available factory space.
Applications
The SKE-CNC Series is suitable for decorative patterns and groove machining on flat glass and mirror surfaces.
Applications include decorative furniture glass, architectural interior glass, art glass and glass components requiring customized surface patterns.
The engraving process should be planned according to the glass type, thickness, pattern design and required surface finish.
Glass Engraving Center vs. Glass Processing Center
The SKE-CNC Series is intended mainly for decorative surface engraving and groove processing on flat glass.
For glass edge grinding, chamfering, shaped-edge processing and polishing, SANKEN also offers the SK-CNC Series CNC Glass Processing Center.
See the CNC Glass Processing Center for edge and contour machining applications.
Frequently Asked Questions
What is a CNC glass engraving center used for?
A CNC glass engraving center is used to machine decorative patterns and grooves into flat glass surfaces using programmed tool paths.
Which SKE-CNC models are available?
Three models are available: SKE-CNC-1630, SKE-CNC-2030 and SKE-CNC-2436.
What is the maximum processing size?
The largest model, SKE-CNC-2436, supports glass up to 3600 × 2400 mm.
What glass thickness can the machine process?
All three models support glass thicknesses from 3 to 40 mm.
Can CAD drawings be used for engraving?
Yes. CAD graphics can be imported and processed through the CAD/CAM software to generate CNC machining paths.
What is the spindle speed range?
The spindle speed range is 135–6000 rpm for all three models.
Can the machine process decorative grooves?
Yes. Grooves can be machined into the glass surface using suitable tools. The groove shape and finish depend on the tooling and processing settings.
What is the difference between SKE-CNC-2030 and SKE-CNC-2436?
SKE-CNC-2030 supports glass up to 3000 × 2000 mm, while SKE-CNC-2436 supports glass up to 3600 × 2400 mm. Both have the same spindle speed range and rated power, but their machine dimensions and weights differ.
How should I select the correct SKE-CNC model?
Model selection depends on maximum glass dimensions, glass thickness, pattern design, engraving-tool requirements and available installation space.
Equipment Selection and Technical Support
For SKE-CNC equipment selection, please provide the glass dimensions, thickness, engraving patterns and required groove finish. CAD drawings or sample images can help determine the suitable model and tooling configuration.
