SANKEN Vertical 5-Axis CNC Glass Drilling & Milling Center
The SANKEN SKDM-CNC-V Series is a vertical 5-axis CNC glass drilling and milling center designed for processing flat glass with programmed drilling, milling and chamfering operations.
Its vertical machine layout supports glass sheets during processing, while the CNC system controls tool movement across five axes. A tool-changing system with 2–6 tool positions supports different machining operations.
Five models are available: SKDM-CNC-2030V, SKDM-CNC-2436V, SKDM-CNC-2442V, SKDM-CNC-2550V and SKDM-CNC-3060V.
The series supports glass thicknesses of 5–19 mm and processing sizes up to 3000 × 6000 mm, depending on the selected model.
Vertical 5-Axis CNC Glass Drilling & Milling Center
The SANKEN SKDM-CNC-V Series is designed for drilling, milling and chamfering flat glass in a vertical processing arrangement. Its five-axis CNC system controls tool movement for programmed machining operations on glass sheets of different sizes.
The machine can process holes, milled features and chamfered sections according to the workpiece design and selected tooling. A tool-changing system allows different machining tools to be used within the configured processing sequence.
Five models are available: SKDM-CNC-2030V, SKDM-CNC-2436V, SKDM-CNC-2442V, SKDM-CNC-2550V and SKDM-CNC-3060V. The series supports glass thicknesses from 5 to 19 mm and maximum processing sizes ranging from 2000 × 3000 mm to 3000 × 6000 mm.
SANKEN SKDM-CNC-V Series Vertical CNC Glass Drilling & Milling Center
Glass Processing Capabilities
CNC Glass Drilling
The machine performs drilling operations at programmed positions on flat glass sheets. Hole positions and machining requirements are established according to the workpiece drawing and selected drilling tools.
Glass Milling
CNC milling is used to machine designated glass features according to the required dimensions and machining path. Suitable milling tools are selected for the glass thickness and feature geometry.
Glass Chamfering
Chamfering operations can be incorporated into the processing sequence for workpieces requiring angled or finished sections around machined features.
Programmed Multi-Operation Processing
Drilling, milling and chamfering can be arranged within the CNC machining program. The required operations, tool arrangement and processing sequence are determined by the glass design.
Vertical Machine Structure and CNC Control
Vertical Glass Support
The vertical layout provides a dedicated arrangement for supporting and positioning large glass sheets during machining. Machine installation and glass handling should be planned according to the selected processing size.
Five-Axis CNC System
The five-axis numerical control system coordinates machine movements during drilling, milling and chamfering. Machining positions and movement paths are controlled according to the selected processing program.
Tool-Changing System
The machine supports a tool-changing configuration with 2–6 tool positions. Different tools can be arranged to suit the required drilling, milling and chamfering operations.
Spindle Speed Control
The spindle speed range is 0–12,000 rpm across all five models. Operating speed is selected according to the machining tool, glass thickness and required operation.
Typical Working Sequence
The glass is positioned in the vertical machine before the machining program starts. The CNC system controls the spindle and machine axes to complete the configured processing operations.
The actual sequence depends on the workpiece drawing, machining tools and production requirements.
Machine Details

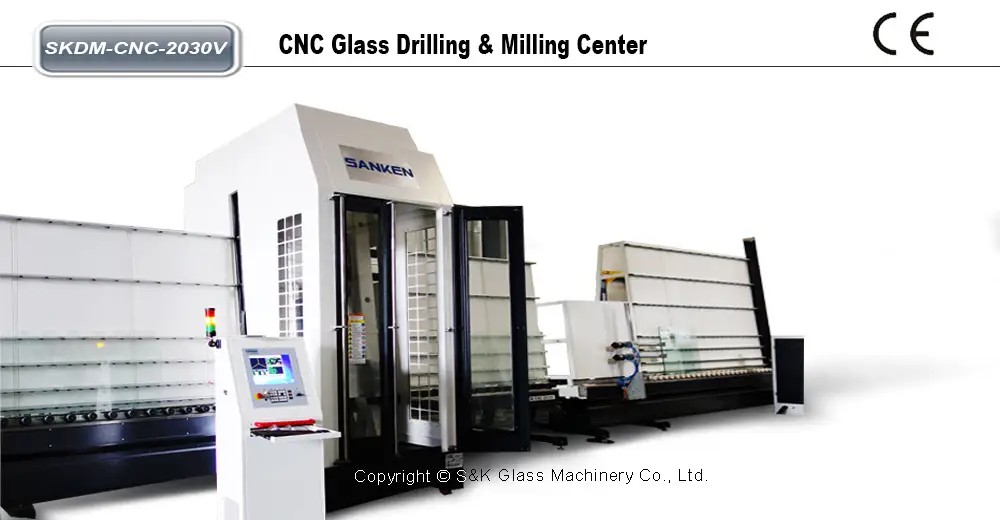

Equipment views of the SANKEN Vertical 5-Axis CNC Glass Drilling & Milling Center.
Technical Specifications
The SKDM-CNC-V Series is available in five processing sizes. All models feature five-axis control, a spindle speed range of 0–12,000 rpm and a total power rating of 22 kW.
| Model | Max. Processing Size | Machine Dimensions | Weight |
|---|---|---|---|
| SKDM-CNC-2030V | 2000 × 3000 mm | 9300 × 2500 × 3700 mm | 5 t |
| SKDM-CNC-2436V | 2440 × 3660 mm | 9400 × 2500 × 4100 mm | 7 t |
| SKDM-CNC-2442V | 2440 × 4200 mm | 9000 × 2500 × 4100 mm | 8 t |
| SKDM-CNC-2550V | 2500 × 5000 mm | 11700 × 2500 × 4200 mm | 9 t |
| SKDM-CNC-3060V | 3000 × 6000 mm | 15800 × 2500 × 4700 mm | 10 t |
Common Technical Parameters
| Parameter | Specification |
|---|---|
| Minimum Processing Size | 200 × 500 mm |
| Glass Thickness | 5–19 mm |
| Spindle Speed | 0–12,000 rpm |
| Number of Axes | 5 |
| Tool Changer Capacity | 2–6 tools |
| Air Pressure | 0.7 MPa |
| Total Power | 22 kW |
Final equipment configuration, machining tools and installation requirements should be confirmed for the selected model.
Choosing the Right SKDM-CNC-V Model
All five models have the same specified glass thickness range, spindle speed, axis configuration and total power. Model selection mainly depends on the maximum glass dimensions and the available installation space.
SKDM-CNC-2030V
The SKDM-CNC-2030V supports glass up to 2000 × 3000 mm. It is the smallest processing-size configuration in the series, with overall machine dimensions of 9300 × 2500 × 3700 mm.
SKDM-CNC-2436V
The SKDM-CNC-2436V accommodates glass up to 2440 × 3660 mm. Its overall dimensions are 9400 × 2500 × 4100 mm.
SKDM-CNC-2442V
The SKDM-CNC-2442V extends the maximum glass length to 4200 mm while maintaining a maximum processing width of 2440 mm.
SKDM-CNC-2550V
The SKDM-CNC-2550V supports glass up to 2500 × 5000 mm and has overall machine dimensions of 11700 × 2500 × 4200 mm.
SKDM-CNC-3060V
The SKDM-CNC-3060V supports glass up to 3000 × 6000 mm. It is the largest processing-size model in the series, with machine dimensions of 15800 × 2500 × 4700 mm.
Applications
The SKDM-CNC-V Series is suitable for flat-glass products requiring programmed drilling, milling and chamfering operations.
Typical applications include frameless glass doors, shower enclosure glass and architectural glass components requiring machined holes or other specified features.
Processing requirements should be reviewed against the glass dimensions, thickness and workpiece drawings before selecting the machine and tooling.
Frequently Asked Questions
What is a vertical 5-axis CNC glass drilling and milling center?
It is a CNC machine designed to perform programmed drilling, milling and chamfering operations on flat glass in a vertical processing arrangement.
Which SKDM-CNC-V models are available?
Five models are available: SKDM-CNC-2030V, SKDM-CNC-2436V, SKDM-CNC-2442V, SKDM-CNC-2550V and SKDM-CNC-3060V.
What is the maximum glass size?
The SKDM-CNC-3060V supports glass up to 3000 × 6000 mm. The other models provide smaller processing sizes.
What glass thickness can the machine process?
All five models support glass thicknesses from 5 to 19 mm.
Can the machine perform drilling and milling in one machining program?
Yes. Drilling and milling operations can be programmed within the CNC processing sequence, subject to the required tools and workpiece design.
Does the machine have an automatic tool changer?
The SKDM-CNC-V Series is equipped with a tool-changing system supporting 2–6 tools. The specific arrangement should be confirmed according to the required operations.
Can it process glass for shower door fittings?
The machine can be considered for drilling and milling features required by shower enclosure glass. The hole and cutout geometry should be checked against the machine's tooling and processing capabilities.
What is the difference between the 2030V and 3060V models?
The 2030V supports glass up to 2000 × 3000 mm, while the 3060V supports glass up to 3000 × 6000 mm. Both have the same specified thickness range, spindle speed and total power, but their machine dimensions and weights differ.
How should I select the correct model?
Selection depends on glass dimensions, thickness, drilling and milling requirements, machining drawings, required tools and available factory space.
Equipment Selection and Technical Support
For SKDM-CNC-V equipment selection, please provide the maximum glass dimensions, thickness range, required drilling and milling features, machining drawings and factory layout. These details can be used to review the suitable machine model and tooling arrangement.
