Automatic Automotive Glass Pre-Processing Line – SKAL Series
The SANKEN SKAL series prepares flat automotive glass through coordinated processing stations and shuttle transfer. Servo-controlled movements connect loading and positioning with the operations included in each model. ED, CE and CED configurations allow the line to match different cutting, edging and drilling requirements.
- Models: SKAL-1308ED, SKAL-1308CED, SKAL-1913CE, SKAL-1913CED, SKAL-2413CE and SKAL-2413CED.
- Maximum glass sizes: 1300 × 800 mm, 1900 × 1300 mm or 2400 × 1300 mm.
- Minimum glass sizes: 400 × 400 mm or 500 × 500 mm, depending on the model.
- Glass thickness: 2–6 mm.
- Production efficiency: 2 pieces/minute, subject to processing requirements.
- Processing accuracy: ±0.15 mm.
- ED configuration: Automatic loading, edging and drilling.
- CE configuration: Automatic loading, CNC cutting, automatic breaking and edging.
- CED configuration: Automatic loading, CNC cutting, automatic breaking, edging and drilling.
- Line connection: Can connect with glass washing or other downstream equipment.
Automatic Automotive Glass Pre-Processing Line
SANKEN SKAL series prepares flat automotive glass through a shuttle-type arrangement of loading, positioning, cutting, breaking, edging and drilling stations, depending on the selected model. Servo-controlled movements coordinate the processing and transfer stages.
Six models cover maximum glass sizes of 1300 × 800 mm, 1900 × 1300 mm and 2400 × 1300 mm. All models process glass 2–6 mm thick, with a production efficiency of 2 pieces/minute and processing accuracy of ±0.15 mm. Select the model according to the glass format and operations required.
Processing Configurations
ED: Loading, Edging and Drilling
SKAL-1308ED includes automatic loading, edging and drilling. It receives glass prepared by upstream cutting and breaking equipment.
CE: Loading, Cutting, Breaking and Edging
SKAL-1913CE and SKAL-2413CE include automatic loading, CNC cutting, automatic breaking and edging. Select the corresponding CED model when drilling is also required.
CED: Loading, Cutting, Breaking, Edging and Drilling
SKAL-1308CED, SKAL-1913CED and SKAL-2413CED combine all five processing functions in the shuttle-type line.

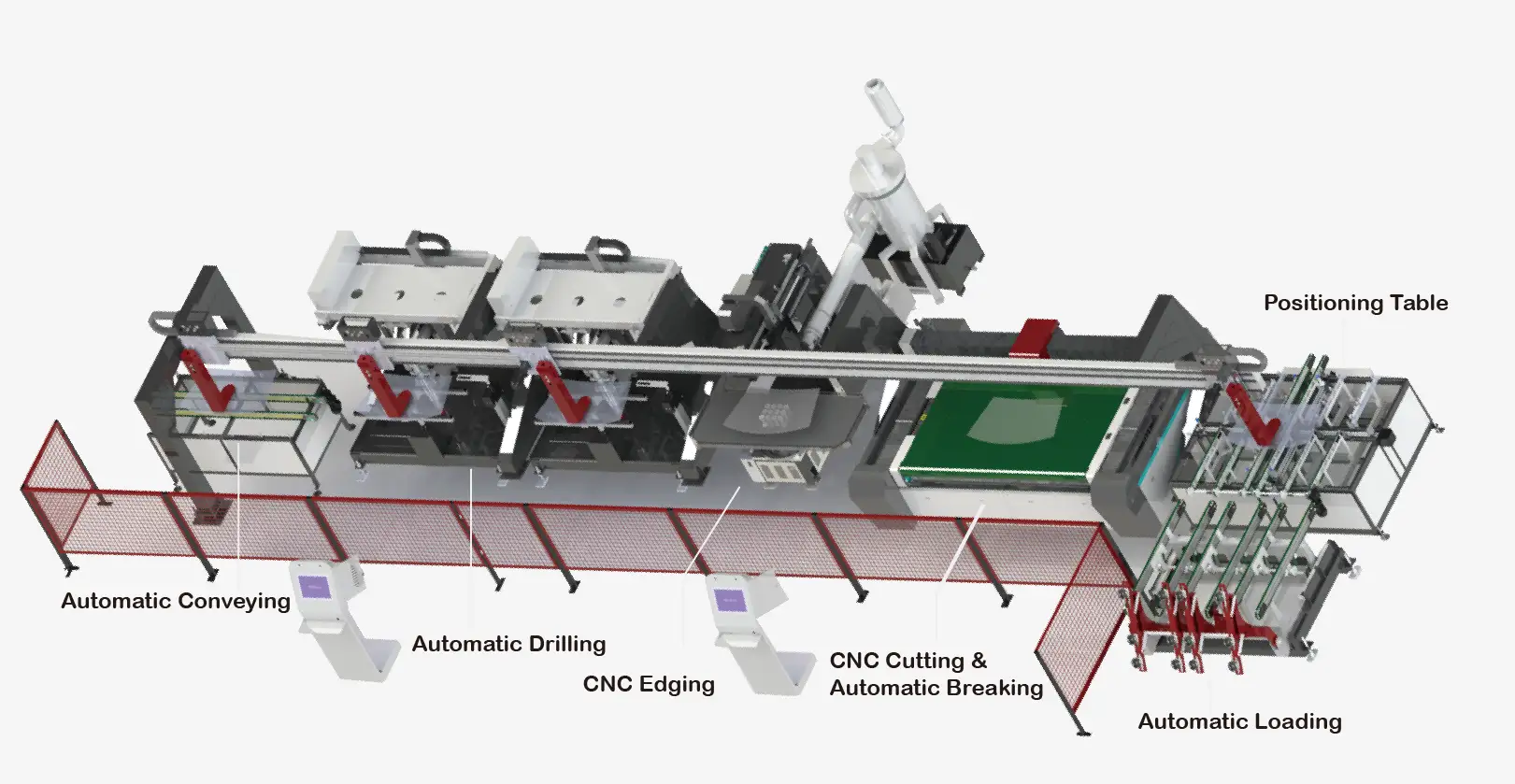

Main Processing Sections
Automatic Loading and Positioning
The loading and positioning sections feed glass into the selected processing sequence. Automatic handling connects the incoming glass with the first machining operation.
CNC Cutting and Automatic Breaking
On the CE and CED models, the CNC cutting section prepares the required outline, followed by automatic breaking. The SKAL-1308ED configuration starts with glass supplied from a separate upstream preparation process.
CNC Edging
The edging section processes the glass perimeter before downstream manufacturing stages. All six models include automatic edging.
Automatic Drilling
The ED and CED configurations include drilling for glass designs that require holes. Send the hole positions and glass drawings when defining the machining requirements.
Shuttle Transfer and Conveying
The shuttle device and conveying sections transfer glass between processing stations. Cutting, breaking, edging, drilling and shuttling movements use servo control where those operations are included.
Downstream Washing Connection
The line can connect with a glass washer or other downstream equipment. Coordinate glass size, conveying direction and transfer interfaces when planning the connection.
Technical Specifications and Included Functions
| Parameter | SKAL-1308ED | SKAL-1308CED | SKAL-1913CE |
|---|---|---|---|
| Max. Glass Size | 1300 × 800 mm | 1300 × 800 mm | 1900 × 1300 mm |
| Min. Glass Size | 400 × 400 mm | 400 × 400 mm | 400 × 400 mm |
| Glass Thickness | 2–6 mm | 2–6 mm | 2–6 mm |
| Production Efficiency | 2 pieces/minute | 2 pieces/minute | 2 pieces/minute |
| Processing Accuracy | ±0.15 mm | ±0.15 mm | ±0.15 mm |
| Air Pressure | 0.6–0.8 MPa | 0.6–0.8 MPa | 0.6–0.8 MPa |
| Power | 45 kW | 65 kW | 51 kW |
| Occupied Space (L × W × H) | 11000 × 5200 × 2000 mm | 15000 × 7000 × 2000 mm | 10000 × 8000 × 2000 mm |
| Line Weight | 13 tonnes | 16 tonnes | 12 tonnes |
| Automatic Loading | Included | Included | Included |
| CNC Cutting | Not included | Included | Included |
| Automatic Breaking | Not included | Included | Included |
| Automatic Edging | Included | Included | Included |
| Automatic Drilling | Included | Included | Not included |
| Parameter | SKAL-1913CED | SKAL-2413CE | SKAL-2413CED |
|---|---|---|---|
| Max. Glass Size | 1900 × 1300 mm | 2400 × 1300 mm | 2400 × 1300 mm |
| Min. Glass Size | 400 × 400 mm | 500 × 500 mm | 500 × 500 mm |
| Glass Thickness | 2–6 mm | 2–6 mm | 2–6 mm |
| Production Efficiency | 2 pieces/minute | 2 pieces/minute | 2 pieces/minute |
| Processing Accuracy | ±0.15 mm | ±0.15 mm | ±0.15 mm |
| Air Pressure | 0.6–0.8 MPa | 0.6–0.8 MPa | 0.6–0.8 MPa |
| Power | 65 kW | 51 kW | 65 kW |
| Occupied Space (L × W × H) | 16000 × 8000 × 2000 mm | 10000 × 9000 × 2000 mm | 16000 × 9000 × 2000 mm |
| Line Weight | 20 tonnes | 13 tonnes | 21 tonnes |
| Automatic Loading | Included | Included | Included |
| CNC Cutting | Included | Included | Included |
| Automatic Breaking | Included | Included | Included |
| Automatic Edging | Included | Included | Included |
| Automatic Drilling | Included | Not included | Included |
Production efficiency and processing accuracy depend on the glass design and operating conditions. Confirm the required outline, edge processing and drilling work when selecting the configuration.
Occupied-space figures describe the line arrangement. Plan additional room for glass storage, operator access, maintenance and connections with upstream or downstream equipment.
Automotive Glass Pre-Processing Workflow
ED Workflow
Prepared Glass → Automatic Loading & Positioning → Edging → Drilling → Conveying to Downstream Equipment
CE Workflow
Automatic Loading & Positioning → CNC Cutting → Automatic Breaking → Edging → Conveying to Downstream Equipment
CED Workflow
Automatic Loading & Positioning → CNC Cutting → Automatic Breaking → Edging → Drilling → Conveying to Downstream Equipment
Select the workflow around the glass drawings and required operations. Washing and subsequent glass forming or lamination stages are arranged separately within the complete automotive glass production process.
Glass Format and Function Selection
1300 × 800 mm Format
Choose SKAL-1308ED when the required operations are loading, edging and drilling. Choose SKAL-1308CED when CNC cutting and automatic breaking are also required. Both models have a minimum processing size of 400 × 400 mm.
1900 × 1300 mm Format
SKAL-1913CE combines loading, cutting, breaking and edging. SKAL-1913CED adds drilling. Both models have a minimum processing size of 400 × 400 mm.
2400 × 1300 mm Format
SKAL-2413CE combines loading, cutting, breaking and edging. SKAL-2413CED adds drilling. Both models have a minimum processing size of 500 × 500 mm.
All six models share a glass thickness range of 2–6 mm. Review maximum and minimum panel sizes together with the required outline, hole pattern and edge processing before specifying the line.
Factory Layout and Integration
Plan the loading rack, positioning section, machining stations and shuttle transfer route together. Place the downstream washer or transfer equipment to suit the glass flow and selected configuration.
Line space ranges from 10000 × 8000 × 2000 mm to 16000 × 9000 × 2000 mm among the configurations, with different arrangements for the 1300 × 800 mm models. Use the model-specific occupied-space figures in the parameter tables when planning the workshop.
Rated power ranges from 45 kW to 65 kW, and compressed air pressure is 0.6–0.8 MPa. Coordinate electrical supply, equipment access and maintenance space with the final line arrangement.
Frequently Asked Questions
Which models are available?
The series includes SKAL-1308ED, SKAL-1308CED, SKAL-1913CE, SKAL-1913CED, SKAL-2413CE and SKAL-2413CED.
Do all models include cutting and breaking?
SKAL-1308ED includes loading, edging and drilling. The other five models include CNC cutting and automatic breaking.
Which models include drilling?
SKAL-1308ED, SKAL-1308CED, SKAL-1913CED and SKAL-2413CED include drilling. The two CE models provide loading, cutting, breaking and edging.
What glass thickness can the line process?
All six models process glass 2–6 mm thick. Confirm the complete glass drawing and machining requirements for the selected configuration.
What are the available glass sizes?
Maximum sizes are 1300 × 800 mm, 1900 × 1300 mm and 2400 × 1300 mm. Minimum sizes are 400 × 400 mm or 500 × 500 mm, depending on the model.
Can the line connect to a glass washer?
Yes. A washer or other downstream machine can be connected according to the required production sequence and equipment interfaces.
What details are needed for a quotation?
Send maximum and minimum glass dimensions, thickness, outline drawings, required edge finish, hole positions, target output, existing equipment and a factory layout.
