Exporting glass-processing machinery since 2002, with international project support from planning to installation and training.

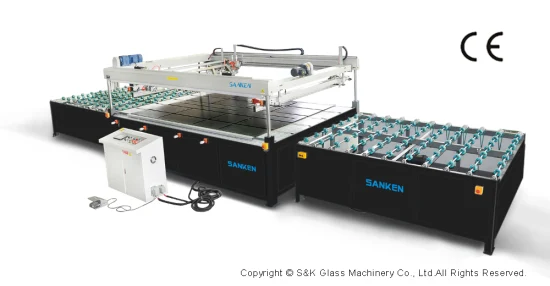

High Precision Tempered Glass Printing Machine for Cars 1

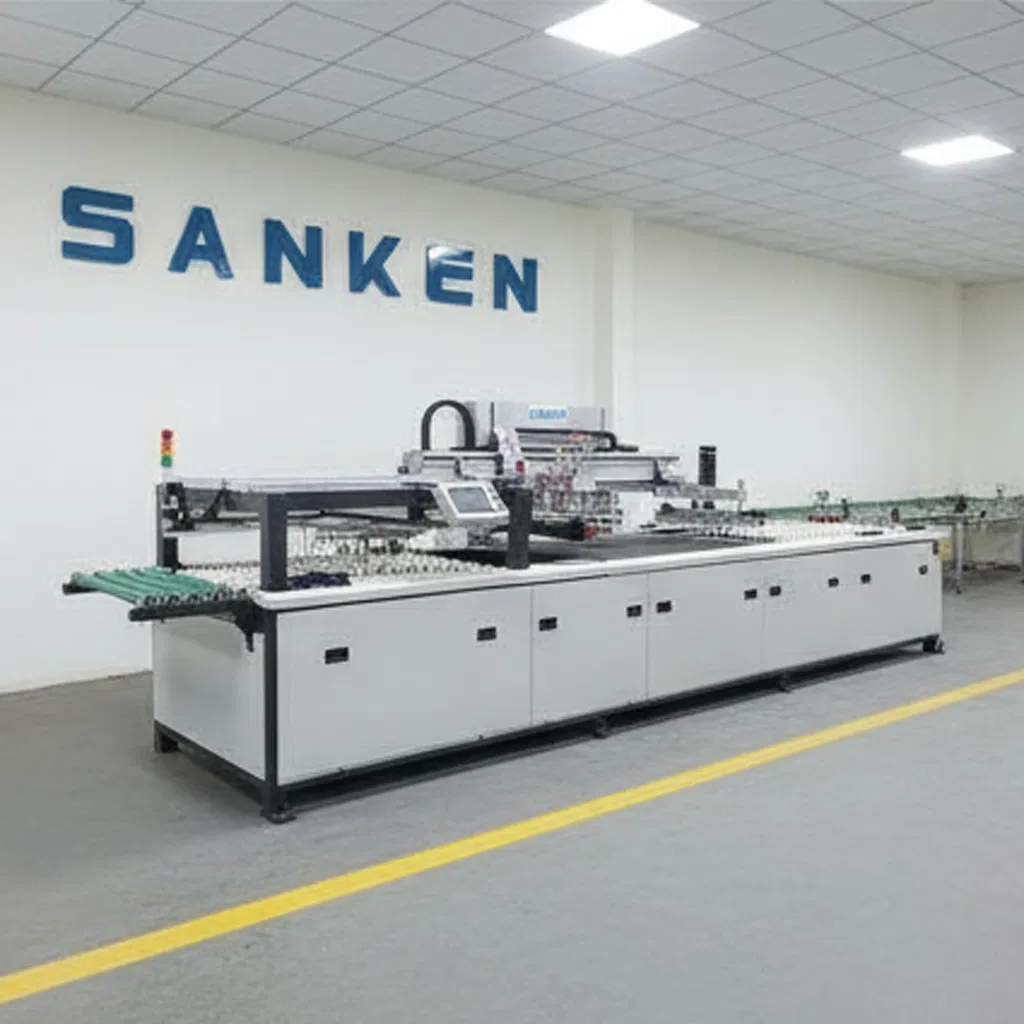

High Precision Tempered Glass Printing Machine for Cars 2

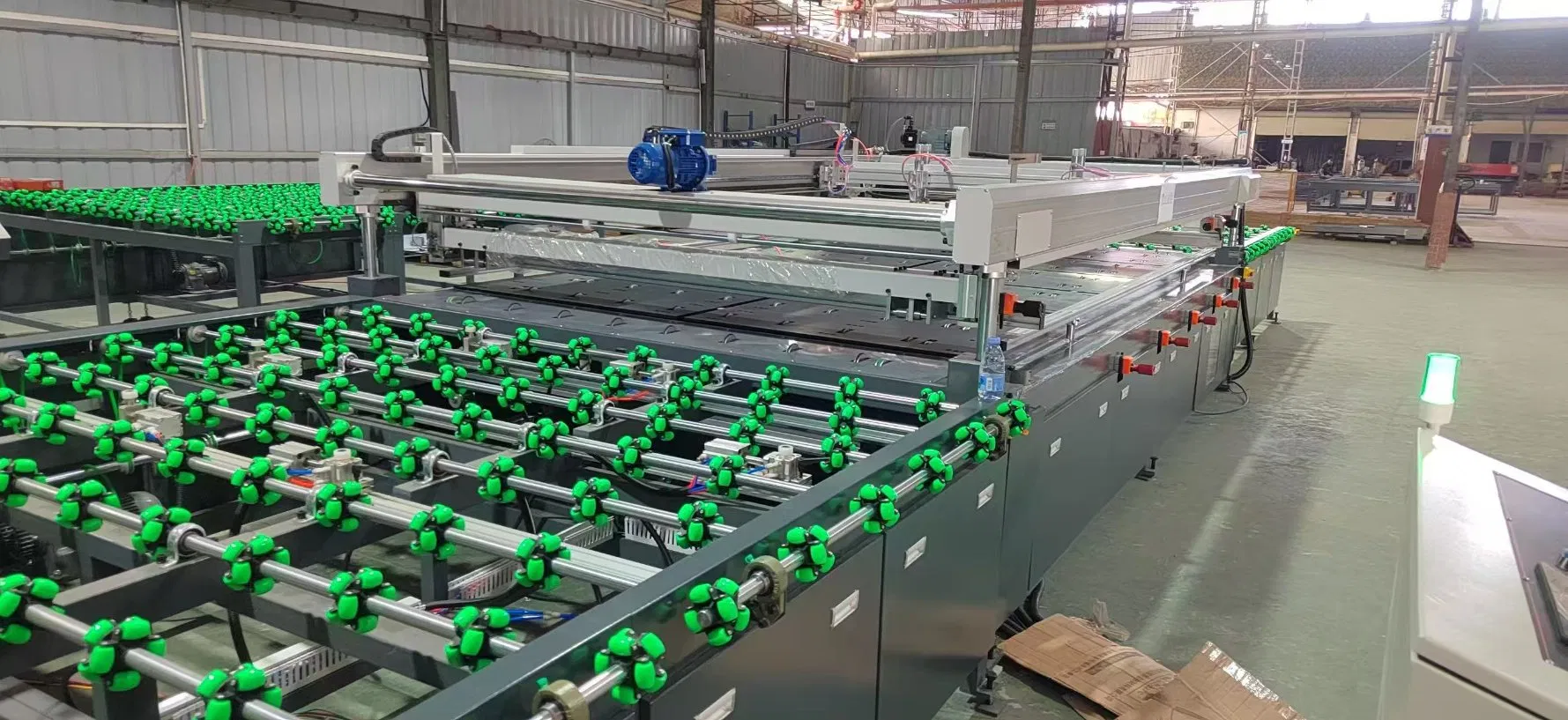

High Precision Tempered Glass Printing Machine for Cars 3

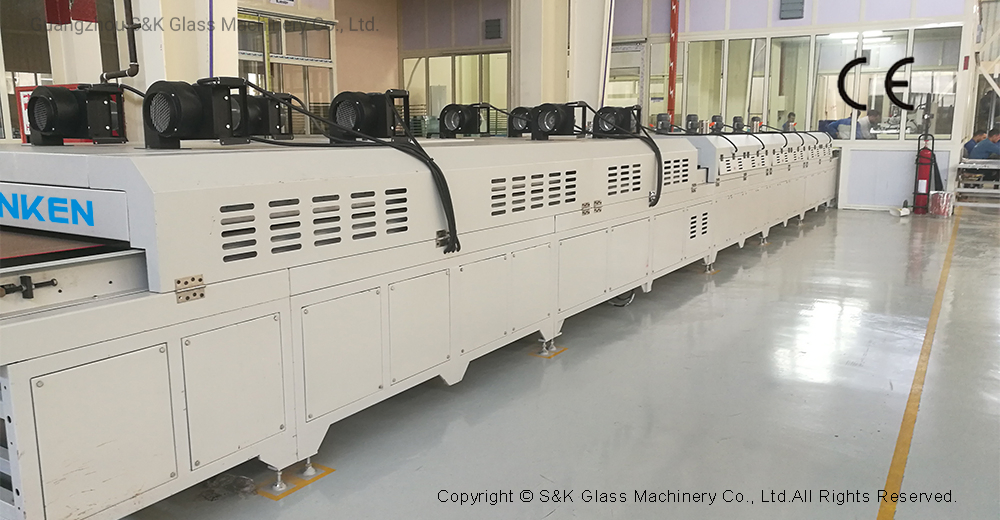

High Precision Tempered Glass Printing Machine for Cars 4

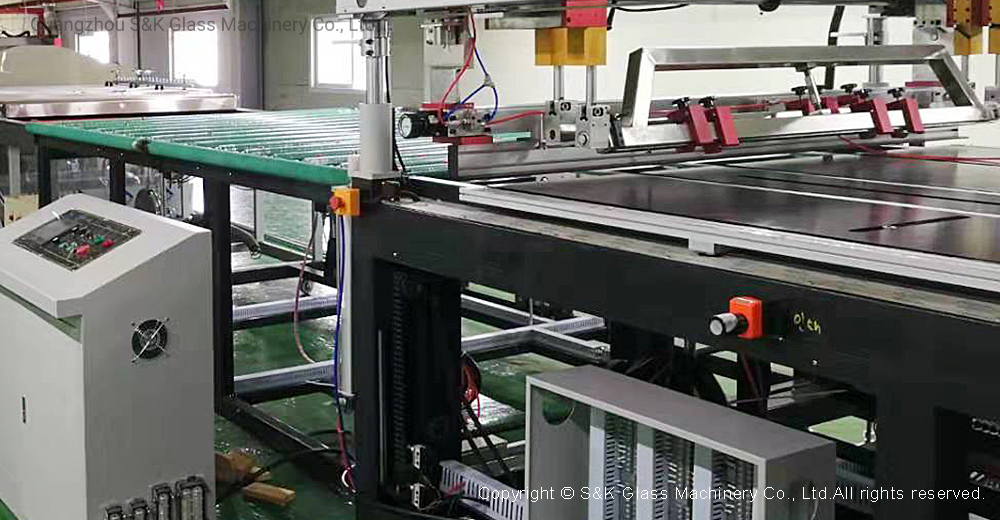

High Precision Tempered Glass Printing Machine for Cars 5

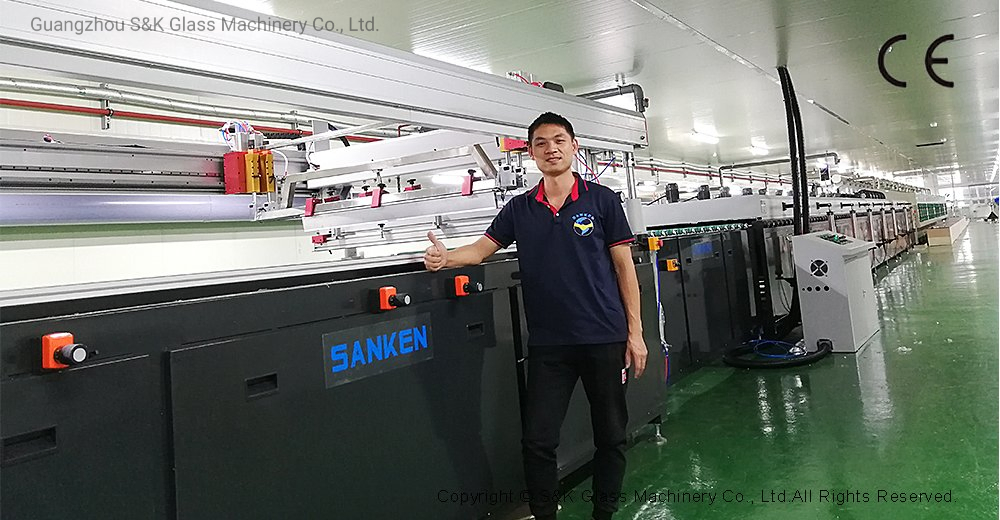

High Precision Tempered Glass Printing Machine for Cars 6

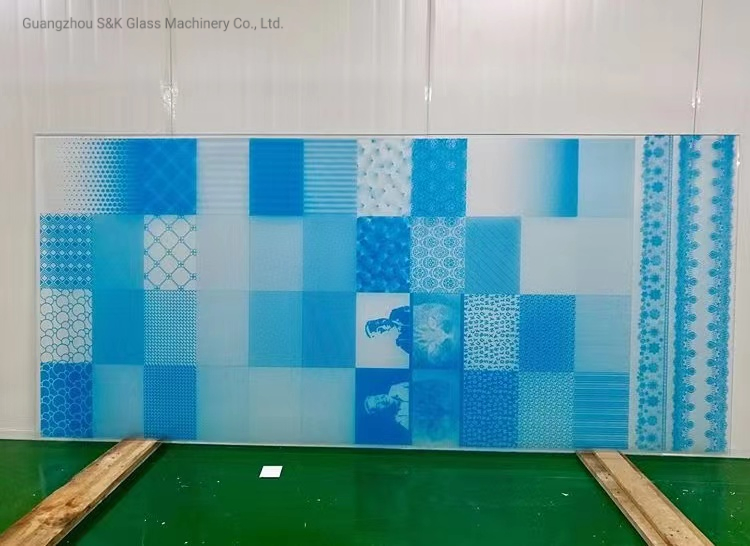

High Precision Tempered Glass Printing Machine for Cars 7

High Precision Tempered Glass Printing Machine for Cars

Customized:

Non-Customized

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Certification:

Inquiry

Write a Review

Product Description

SANKEN Windshield Glass High Precision Silk Screen Printing Line SKPL-1925
High Precision Tempered Glass Printing Machine for Cars

1- The main parts are processed by high-precision CNC lathes to ensure the high precision and all parts are scientifically and reasonably designed, making the operation high stability.

2- The mechanical parts, electric parts, pneumatic parts are famous brand, it can ensure the stability while the running of the whole line.

3- The application of synch anti-sliding conveyor belt makes printing process steady and makes the machine less noise with long lasting.

4- Special positioning ensures the high precision of glass.

5- The scraping print and ink plate returning are controlled by SERVO, and the control program design of the printing line is scientific, adopts Japanese Mitsubishi control system, all controlled by touch Screen and PLC, the program has multi-layer protection functions, it can greatly avoid the equipment damage and operator injury by a wrong operation.

6- This Production Line can be widely applied of Construction Glass, Office Glass, Kitchen Glass, Furniture Glass, Home Appliance Glass, Decoration Glass Printing, Automotive Windshield, etc. High Precision Tempered Glass Printing Machine for Cars

Model	Max. size	Min. size	Total power	Thickness	Weight	Machine size
SKP-0812	800 x 1200 mm	300 x 300 mm	4.2 KW	2-19 mm	2.7 Tons	5600 x 1800 x 1800 mm
SKP-1015	1000 x 1500 mm	400 x 500 mm	8 KW	2-19 mm	2.8 Tons	6500 x 1800 x 2000 mm
SKP-1326	1300 x 2600 mm	500 x 700 mm	9 KW	2-19 mm	3.8 Tons	9800 x 2100 x 1800 mm
SKP-1925	1900 x 2500 mm	600 x 700 mm	11 KW	2-19 mm	4.3 Tons	9500 x 2700 x 1800 mm
SKP-1530	1500 x 3000 mm	600 x 700 mm	11 KW	2-19 mm	4.8 Tons	11000 x 2300 x 1800 mm
SKP-2030	2000 x 3000 mm	700 x 800 mm	12.7 KW	2-19 mm	5.0 Tons	11100 x 2800 x 1800 mm
SKP-2040	2000 x 4000 mm	700 x 900 mm	14 KW	2-19 mm	6.0 Tons	14100 x 2800 x 1800 mm
SKP-2445	2440 x 4500 mm	700 x 900 mm	31.5 KW	2-19 mm	7.3 Tons	15500 x 3300 x 1800 mm
SKP-2551	2500 x 5100 mm	700 x 900 mm	31.5 KW	2-19 mm	8.0 Tons	17300 x 3300 x 1800 mm

Model	Max. Glass width	Speed	Total power	Thickness	Weight	Machine size
SKF-IR600	600 mm	0-5 m/min	71.4 KW	2-19 mm	4.0 Tons	23000 x 1100 x 1550 mm
SKF-IR800	800 mm	0-5 m/min	94 KW	2-19 mm	5.0 Tons	23000 x 1300 x 1550 mm
SKF-IR1000	1000 mm	0-5 m/min	116 KW	2-19 mm	6.0 Tons	23000 x 1500 x 1550 mm
SKF-IR1200	1200 mm	0-5 m/min	138 KW	2-19 mm	7.0 Tons	23000 x 1700 x 1550 mm
SKF-IR1500	1500 mm	0-5 m/min	168.3 KW	2-19 mm	8.0 Tons	23000 x 2000 x 1550 mm
SKF-IR1600	1600 mm	0-5 m/min	168.3 KW	2-19 mm	8.5 Tons	23000 x 2100 x 1550 mm
SKF-IR1800	1800 mm	0-5 m/min	205.8 KW	2-19 mm	9.0 Tons	23000 x 2300 x 1550 mm
SKF-IR2000	2000 mm	0-5 m/min	221.4 KW	2-19 mm	10 Tons	23000 x 2500 x 1550 mm
SKF-IR2300	2300 mm	0-5 m/min	249.6 KW	2-19 mm	12 Tons	23000 x 2800 x 1550 mm
SKF-IR2500	2500 mm	0-5 m/min	268.5 KW	2-19 mm	15 Tons	23000 x 3000 x 1550 mm
SKF-IR3000	3000 mm	0-5 m/min	312.6 KW	2-19 mm	20 Tons	30000 x 3500 x 1550 mm
