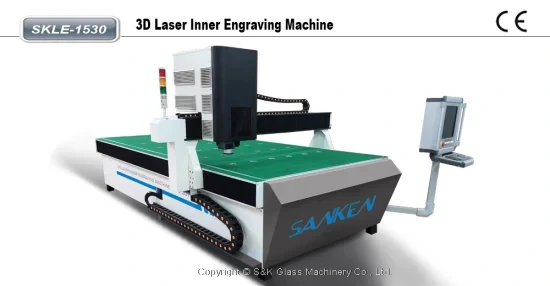

3D Laser Inner Engraving Machine for Glass & Crystal - SKLE-1530

3D Laser Inner Engraving Machine for Glass & Crystal - SKLE-1530

Name: 3D Laser Inner Engraving Machine for Glass & Crystal - SKLE-1530
Uploaded: 2025-11-06T10:30:16+08:00
Description: The SANKEN SKLE-1530 is a high-tech 3D laser inner engraving machine specialized for flat glass and crystal applications. By utilizing advanced laser technology, it engraves intricate 2D and 3D patterns directly inside the glass material without damaging the surface. It features high engraving speeds, vivid and realistic patterns, and long-term operating stability.

The SANKEN SKLE-1530 is a high-tech 3D laser inner engraving machine specialized for flat glass and crystal applications. By utilizing advanced laser technology, it engraves intricate 2D and 3D patterns directly inside the glass material without damaging the surface. It features high engraving speeds, vivid and realistic patterns, and long-term operating stability.

Precision Engraving: Creates super-fine, bright micro-burst points inside the glass.
Intelligent Control: Computer-controlled system ensures high-accuracy pattern reproduction.
Versatile Applications: Ideal for high-end art glass, decorative partitions, luxury giftware, and architectural design.

Inquiry

Write a Review

Why Choose the SANKEN SKLE-1530?

The SKLE-1530 is a professional-grade laser processing center designed for artists and manufacturers seeking to add value to flat glass. This system allows you to directly input CAD graphics, which the system automatically converts into optimized tool paths for perfect engraving results. It is the ideal solution for crafting unique, vivid, and sophisticated glass products that stand out in the high-end market.

Details & Real Shots

小图3 (5)

小图2 (3)

小图1 (6)

Core Advantages

3D Laser Inner Engraving Machine for Glass & Crystal - SKLE-1530 12

Surface Preservation

The laser technology works internally, leaving the glass surface smooth and untouched.

3D Laser Inner Engraving Machine for Glass & Crystal - SKLE-1530 13

High Efficiency

Capable of processing 180,000 to 480,000 dots per minute, significantly reducing production time.

3D Laser Inner Engraving Machine for Glass & Crystal - SKLE-1530 14

Superior Visual Quality

Produces bright micro-burst points, resulting in super-fine, realistic, and vivid 3D imagery.

3D Laser Inner Engraving Machine for Glass & Crystal - SKLE-1530 15

Industrial Stability

Engineered with long-term perfection and stable performance for continuous industrial use.

Model	Speed	Min. Size	Max. Size	Thickness	Power	Weight	Occupation Area
SKLE-1218	480000dots/min	3 x 3 mm	1200 x 1800 mm	3-110 mm	1.5 kw	1000 kg	2450 x 2150 x 1820 mm
SKLE-1325	480000dots/min	3 x 3 mm	1300 x 2500 mm	3-110 mm	1.5 kw	1200 kg	3150 x 2250 x 1820 mm
SKLE-1530	480000dots/min	3 x 3 mm	1500 x 3000 mm	3-110 mm	1.5 kw	1495 kg	3250 x 2250 x 1820 mm
SKLE-2030	480000dots/min	3 x 3 mm	2000 x 3000 mm	3-110 mm	1.5 kw	2000 kg	3650 x 2950 x 1820 mm
SKLE-2040	480000dots/min	3 x 3 mm	2000 x 4000 mm	3-110 mm	1.5 kw	2300 kg	4650 x 2950 x 1820 mm

🎁 Planning your automated line? 👉 [Click Here to Request the CAD Footprint Layout for SKDM-CNC-2030V]

FAQ

About Voltage

Yes, the voltage can be customized (e.g., 220V/380V/415V/480V, 50/60Hz) to perfectly match your local factory's electrical standards.

Guarantee & Warranty

We offer a standard 1-year guarantee. SANKEN provides lifelong online technical support and can dispatch experienced engineers overseas for installation and training.

About Delivery Time

Generally 30 to 45 working days after receiving the advance payment, depending on your specific customization requirements.

About Payment Terms

30% shall be paid by T/T as down payment in advance; 70% balance shall be paid off by T/T before shipment.

Can I use my own designs for engraving?

Yes. The machine supports direct input of CAD graphics, allowing the system to automatically generate optimized tool paths based on your custom designs.

Does this machine damage the surface of the glass?

No. The laser engraving technology is specifically designed to create patterns inside the crystal or glass material, meaning the surface remains completely intact and undamaged.

What kind of patterns can be engraved?

The system is capable of engraving intricate 2D and 3D patterns, including figures, complex designs, and artistic imagery, with realistic and vivid results.
