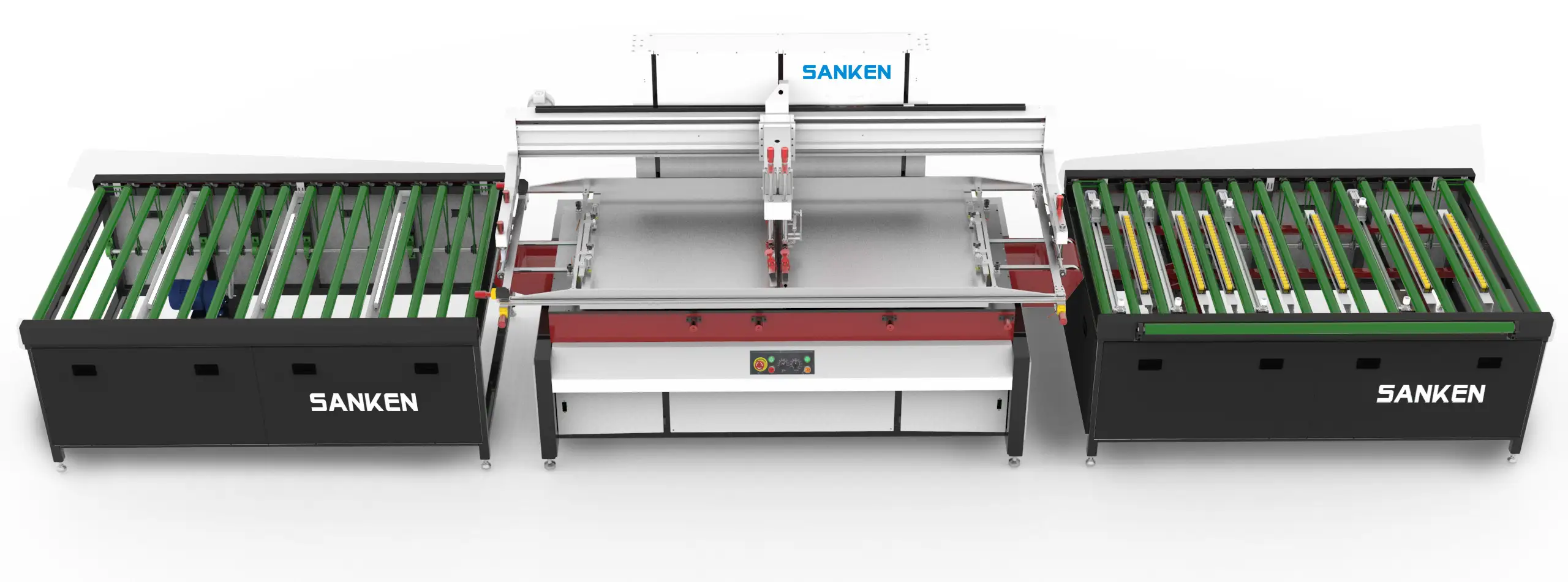

SANKEN Automatic High Precision Glass Silk Screen Printing Machine - SKP series
-
Three-Section Precision Layout: Consists of an automatic pre-positioning section for loading, high-precision screen printing, and an integrated detection section
-
Mitsubishi PLC & Touch Control: Powered by a premium Japanese Mitsubishi PLC paired with a user-friendly touch screen for seamless operational adjustments
-
Full Servo Motor Driving: Both the scraping print mechanism and ink plate returning system are controlled by independent servo motors for ultra-smooth cycles
-
±0.1mm Exceptional Registration: Advanced stop-positioning architecture delivers a highly reliable repetition precision of ±0.1mm
-
Multi-Layer Safety Protection: The software control program features built-in multi-layer safeguards to strictly eliminate equipment damage or worker injuries caused by misoperation
Automatic Glass Screen Printing
The SANKEN SKP series combines automatic glass pre-positioning, screen printing and a post-print inspection section. Servo motors control the printing squeegee and ink-return strokes, with operation managed through a Mitsubishi PLC and touch-screen interface.
Seven models cover maximum glass sizes from 1000 × 1500 mm to 2500 × 5100 mm. All models process glass thicknesses of 2–19 mm, with a printing speed of 2 pcs/min and repeatability of ±0.1 mm.
Three Processing Sections
Automatic Pre-Positioning
The incoming glass is aligned before entering the printing section. Positioning establishes the panel location for the print cycle.
Automatic Screen Printing
The squeegee transfers ink through the prepared screen onto the glass. Servo-controlled printing and ink-return strokes coordinate the print and ink replenishment cycle.
Post-Print Inspection
The inspection section provides a stage for checking the printed panel before it moves to drying or another production process.
Key Features
Servo-Controlled Printing and Ink Return
Servo motors drive the printing and ink-return mechanisms. Operators set the process to suit the screen, ink and printed design.
Four-Pillar Frame
A four-pillar structure supports vertical movement of the screen assembly during printing and panel transfer.
Mitsubishi PLC and Touch Screen
The control system coordinates the processing sections through a touch-screen interface. Program protection functions help manage operating limits and incorrect commands.
Repeatability of ±0.1 mm
The glass positioning and printing arrangement supports repeatable panel placement across the series.
Seven Model Sizes
Choose a machine around your maximum and minimum glass sizes and required screen frame. All seven models use a 0.6 MPa air supply.
Working Sequence
Prepare clean glass, the printing screen and the selected ink before production. Check glass positioning and the first printed panel before continuing the batch.
Technical Specifications
| Parameter | SKP-1015 | SKP-1326 | SKP-1530 | SKP-1925 |
|---|---|---|---|---|
| Max. Glass Size | 1000 × 1500 mm | 1300 × 2600 mm | 1500 × 3000 mm | 1900 × 2500 mm |
| Min. Glass Size | 400 × 500 mm | 500 × 700 mm | 600 × 700 mm | 600 × 700 mm |
| Max. Screen Frame Size | 1400 × 2100 mm | 1900 × 3300 mm | 2000 × 3700 mm | 2400 × 3200 mm |
| Glass Thickness | 2–19 mm | 2–19 mm | 2–19 mm | 2–19 mm |
| Printing Speed | 2 pcs/min | 2 pcs/min | 2 pcs/min | 2 pcs/min |
| Repeatability | ±0.1 mm | ±0.1 mm | ±0.1 mm | ±0.1 mm |
| Air Supply Pressure | 0.6 MPa | 0.6 MPa | 0.6 MPa | 0.6 MPa |
| Total Machine Power | 9.5 kW | 11.0 kW | 11.0 kW | 11.0 kW |
| Machine Dimensions | 6500 × 1800 × 1800 mm | 9800 × 2100 × 1800 mm | 11000 × 2300 × 1800 mm | 9500 × 2700 × 1800 mm |
| Machine Weight | 2800 kg | 3800 kg | 4300 kg | 4800 kg |
| Parameter | SKP-2030 | SKP-2040 | SKP-2551 |
|---|---|---|---|
| Max. Glass Size | 2000 × 3000 mm | 2000 × 4000 mm | 2500 × 5100 mm |
| Min. Glass Size | 700 × 800 mm | 700 × 900 mm | 700 × 900 mm |
| Max. Screen Frame Size | 2500 × 3800 mm | 2500 × 4800 mm | 3000 × 5800 mm |
| Glass Thickness | 2–19 mm | 2–19 mm | 2–19 mm |
| Printing Speed | 2 pcs/min | 2 pcs/min | 2 pcs/min |
| Repeatability | ±0.1 mm | ±0.1 mm | ±0.1 mm |
| Air Supply Pressure | 0.6 MPa | 0.6 MPa | 0.6 MPa |
| Total Machine Power | 12.7 kW | 14.0 kW | 31.5 kW |
| Machine Dimensions | 11000 × 2800 × 1800 mm | 14100 × 2800 × 1800 mm | 17300 × 3300 × 1800 mm |
| Machine Weight | 5000 kg | 6000 kg | 8000 kg |
Applications
The SKP series supports screen printing on flat glass for architectural panels, office partitions, kitchen glass, furniture, home appliances and decorative products. Automotive glass printing projects can be reviewed against the panel geometry, screen and ink requirements.
Glass Screen Printing Equipment Views
Drying and Production-Line Planning
The SKP machine includes pre-positioning, printing and inspection. Plan ink drying, automatic arraying and downstream processing around the selected ink and production requirements.
For a project combining printing, arraying and IR drying, review the complete SKPL production-line configuration with us. When connecting an SKP machine to other equipment, we review conveyor height, transfer direction, control interfaces and cycle requirements for the project.
Explore the SANKEN SKPL glass screen printing production line.
Model Selection and Installation
Send your maximum and minimum glass dimensions, thickness range, screen frame size, artwork, ink type and target output. Include your factory plan, electrical supply and available compressed-air supply.
Machine power ranges from 9.5 to 31.5 kW. Allow additional space around the equipment for glass handling, screen changes, cleaning and maintenance.
Frequently Asked Questions
How many models are included in the SKP series?
Seven: SKP-1015, SKP-1326, SKP-1530, SKP-1925, SKP-2030, SKP-2040 and SKP-2551.
What is included in the machine?
Automatic glass pre-positioning, screen printing and a post-print inspection section.
Is an IR dryer included?
The SKP configuration covers the positioning, printing and inspection sections. Drying equipment is selected separately for the project.
What is the inspection section used for?
It provides a stage for checking the printed glass before downstream processing. Discuss any required automated inspection functions with us when selecting the configuration.
Can the machine be connected to other production equipment?
We can review a connection project against the conveyor arrangement, control interfaces, glass specifications and production cycle requirements.
How do I choose the model?
Match your glass size range and screen frame to the specification tables, then review the ink, artwork and production requirements with us.
