Single-Arm Glass Screen Printing Line – SKPL Series
The SANKEN SKPL-0609 and SKPL-0812 integrate five production sections for flat glass screen printing. A vertical single-arm structure supports the printing unit, while servo motors control the printing and ink-return strokes.
- Two models with maximum glass sizes of 600 × 900 and 800 × 1200 mm.
- Glass thickness range: 2–19 mm.
- Printing speed: 5 pcs/min.
- Repeatability: ±0.1 mm.
- Mitsubishi PLC and touch-screen operation.
- Automatic arraying and a 23 m IR drying tunnel.

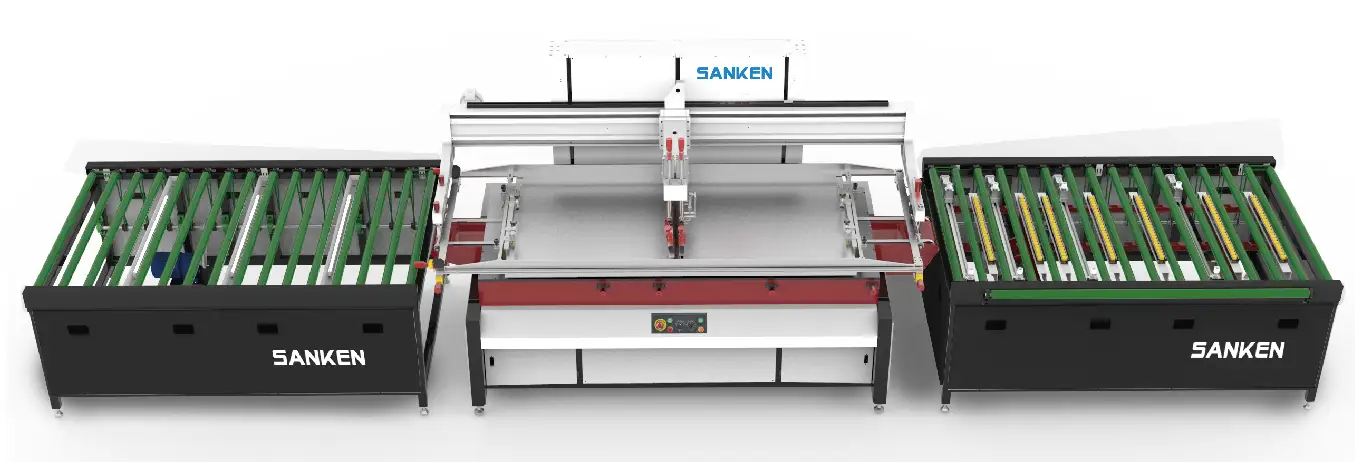

Single-Arm Glass Screen Printing Line
The SANKEN SKPL-0609 and SKPL-0812 combine automatic pre-positioning, glass screen printing, inspection, automatic arraying and IR drying. A vertical single-arm printing structure supports the screen assembly, while servo motors control the printing and ink-return strokes.
Both models process glass thicknesses of 2–19 mm, with a printing speed of 5 pcs/min and repeatability of ±0.1 mm. Select the model around your glass size range, screen frame and production requirements.
Equipment Views
Five Connected Production Sections
Automatic Pre-Positioning
The incoming glass is aligned before printing. Panel positioning establishes the location of each sheet for the printing cycle.
Automatic Screen Printing
The single-arm printing unit transfers ink through the prepared screen onto the glass. Servo-controlled printing and ink return coordinate the squeegee cycle.
Inspection
The inspection section provides a stage for checking the printed panel before it enters the following process.
Automatic Arraying
Printed panels are arranged for transfer into the drying tunnel. The maximum arraying width is 1200 mm for SKPL-0609 and 1800 mm for SKPL-0812.
IR Tunnel Drying
A 23 m IR dryer handles the ink-drying stage. Select the drying settings to suit the ink and downstream processing requirements.
Key Features
Vertical Single-Arm Structure
The single-arm arrangement supports the screen assembly during printing. Choose the screen frame and glass processing area to match the printed design.
Servo Printing and Ink Return
Servo motors control the printing and ink-return strokes, supporting coordinated motion through the print cycle.
Mitsubishi PLC and Touch Screen
The control system coordinates the production sections through a touch-screen interface. Program protection functions help manage operating limits and incorrect commands.
Synchronized Conveyor Belts
Synchronized anti-sliding belts transport glass between the processing sections.
Two Glass Size Ranges
SKPL-0609 processes glass from 230 × 230 to 600 × 900 mm. SKPL-0812 processes glass from 300 × 300 to 800 × 1200 mm.
Working Sequence
Prepare clean glass, the printing screen and ink before production. Check the first panel for positioning and print quality, then match the printing and dryer settings to the job.
Technical Specifications
| Parameter | SKPL-0609 | SKPL-0812 |
|---|---|---|
| Max. Glass Size | 600 × 900 mm | 800 × 1200 mm |
| Min. Glass Size | 230 × 230 mm | 300 × 300 mm |
| Max. Screen Frame Size | 900 × 1400 mm | 1100 × 1700 mm |
| Glass Thickness | 2–19 mm | 2–19 mm |
| Printing Speed | 5 pcs/min | 5 pcs/min |
| Max. Arraying Width | 1200 mm | 1800 mm |
| IR Dryer Size | 23000 × 1200 mm | 23000 × 1800 mm |
| Repeatability | ±0.1 mm | ±0.1 mm |
| Air Supply Pressure | 0.6 MPa | 0.6 MPa |
| Total Electrical Power | 142 kW | 212 kW |
| Line Dimensions | 30200 × 1700 × 1800 mm | 31100 × 2300 × 1800 mm |
| Line Weight | 8660 kg | 12000 kg |
Applications
The line supports flat glass screen printing for appliance panels, furniture glass, kitchen glass and decorative interior products. Architectural and automotive printing projects can be reviewed against the panel geometry, artwork and ink requirements.
Share the glass dimensions, screen frame, printed design and ink specification so we can review the production setup with you.
Ink Drying and Downstream Processing
The integrated IR tunnel dries printed ink before the next production stage. Match the dryer temperature and residence time to the selected ink.
Ceramic inks requiring firing need a separate downstream heat-treatment process. Plan this stage together with the glass production sequence.
Factory Planning
The line dimensions are 30200 × 1700 × 1800 mm for SKPL-0609 and 31100 × 2300 × 1800 mm for SKPL-0812. Allow additional room for glass handling, screen changes, dryer access and maintenance.
Both models require a 0.6 MPa compressed-air supply. Total electrical power is 142 kW for SKPL-0609 and 212 kW for SKPL-0812.
Contact SANKEN with your factory plan and printing requirements.
Frequently Asked Questions
Which models are included on this page?
The single-arm SKPL-0609 and SKPL-0812 glass screen printing production lines.
What is included in the line?
Automatic pre-positioning, screen printing, inspection, automatic arraying and IR drying.
What is the difference between the two models?
Their glass size ranges, screen frame sizes, arraying widths, dryer widths and electrical requirements differ. Compare the model columns in the specification table.
What glass thicknesses can they process?
Both models process glass thicknesses of 2–19 mm.
Is automated defect recognition included?
The standard description includes an inspection section. Discuss the required inspection method and automated detection functions with us when specifying the project.
What information is needed for a quotation?
Send your glass size range, thickness, artwork, screen frame dimensions, ink specification, target output and factory layout.
