CNC Water Jet Cutting Machine
SANKEN CNC Water Jet Cutting Machine is designed for straight-line and irregular-shape cutting of float glass, laminated glass and other materials. The high-pressure water jet cutting process does not chemically alter the material during cutting and is suitable for applications such as glass door patch-fitting holes and complex profiles.
The SKWJ series is available in multiple cutting sizes from 2000 × 1400 mm to 4500 × 2500 mm. All catalogue configurations provide a traverse speed of 10 m/min, cutting accuracy of ±0.1 mm and working pressure of 380 MPa / 55,000 PSI.
CNC Water Jet Cutting Machine
The SANKEN SKWJ series CNC Water Jet Cutting Machine is designed for straight-line and irregular-shape cutting of glass and other materials. High-pressure water jet cutting provides a flexible solution for complex profiles, openings and parts that cannot be processed easily by conventional straight-line glass cutting equipment.
The machine can process float glass, laminated glass and materials including aluminum, stainless steel, iron, PVC board, stone, ceramic, wood, rubber and foam. Multiple SKWJ configurations are available with maximum cutting sizes from 2000 × 1400 mm to 4500 × 2500 mm.

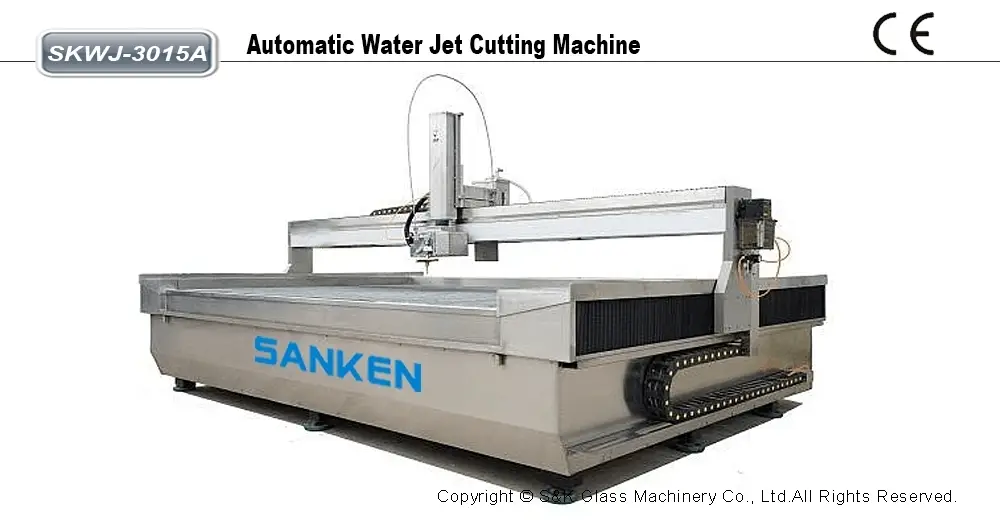

SKWJ Series CNC Water Jet Cutting Machine
Key Functions
High-Pressure Water Jet Cutting
The SKWJ series operates at a catalogue working pressure of 380 MPa / 55,000 PSI to perform CNC-controlled material cutting.
Straight and Irregular Shape Cutting
The CNC motion system can follow straight or irregular cutting paths, making the machine suitable for glass openings, complex profiles and shaped components.
Cold Cutting Process
Water jet cutting does not rely on a conventional thermal cutting process. According to the SANKEN catalogue, there is no chemical change in the cutting material during processing and its physical properties are not changed.
Multi-Material Processing
In addition to float and laminated glass, the machine can be used for materials such as aluminum, stainless steel, iron, PVC board, stone, ceramic, wood, rubber and foam.
Multiple Cutting Table Sizes
The SKWJ series provides multiple cutting-area configurations, allowing the table size to be selected according to the maximum workpiece dimensions and available factory space.
Working Sequence
The workpiece is positioned on the cutting table and the required cutting path is prepared in the control system. During processing, the CNC motion system guides the high-pressure water jet along the programmed path to complete straight or irregular cuts.
Machine and Cutting Details
Machine views, components and sample cutting applications of the SANKEN SKWJ water jet cutting system.
Common Technical Data
| Traverse Speed | 10 m/min |
| Cutting Accuracy | ±0.1 mm |
| Working Pressure | 380 MPa / 55,000 PSI |
| Total Power | 34 kW, 380 V / 50 Hz |
Available Models
The SKWJ series provides nine catalogue cutting-size configurations. All models share the common traverse speed, cutting accuracy, pressure and total power specifications listed above.
| Model | Max. Cutting Size | Cutting Table Size | Machine Size | Weight |
|---|---|---|---|---|
| SKWJ-2014A | 2000 × 1400 mm | 2200 × 1600 mm | 3300 × 2300 × 1800 mm | 2.5 tons |
| SKWJ-2514A | 2500 × 1400 mm | 2700 × 1600 mm | 3500 × 2300 × 1800 mm | 3 tons |
| SKWJ-3015A | 3000 × 1500 mm | 3200 × 1700 mm | 4100 × 2300 × 2100 mm | 3.5 tons |
| SKWJ-3018A | 3000 × 1800 mm | 3300 × 2000 mm | 4100 × 2300 × 2100 mm | 3.5 tons |
| SKWJ-4018A | 4000 × 1800 mm | 4200 × 2000 mm | 5100 × 2800 × 1800 mm | 4.2 tons |
| SKWJ-3020A | 3000 × 2000 mm | 3200 × 2200 mm | 4100 × 2900 × 2100 mm | 3.8 tons |
| SKWJ-4020A | 4000 × 2000 mm | 4200 × 2200 mm | 5100 × 2900 × 2100 mm | 4.3 tons |
| SKWJ-4025A | 4000 × 2500 mm | 4200 × 2700 mm | 5100 × 3400 × 2100 mm | 4.8 tons |
| SKWJ-4525A | 4500 × 2500 mm | 4700 × 2700 mm | 5600 × 3400 × 2100 mm | 5.5 tons |
Choosing a Water Jet Cutting Machine Size
The main difference between SKWJ models is the available cutting area. Select a model according to the maximum workpiece length and width rather than choosing a larger table than the production process requires.
For example, SKWJ-3015A and SKWJ-3018A provide 3000 mm cutting length with different cutting widths, while SKWJ-4020A and SKWJ-4025A provide 4000 mm cutting length with 2000 mm and 2500 mm widths respectively. SKWJ-4525A provides the largest catalogue cutting area at 4500 × 2500 mm.
Glass Processing Applications
For glass processing, the SKWJ series can be used for float glass, laminated glass, glass door patch-fitting holes, openings and irregular-shape cutting where CNC path control is required.
The machine can also process other compatible materials such as aluminum, stainless steel, iron, PVC board, stone, ceramic, wood, rubber and foam.
Frequently Asked Questions
What can a CNC water jet cutting machine cut?
The SANKEN catalogue lists float glass, laminated glass, aluminum, stainless steel, iron, PVC board, stone, ceramic, wood, rubber and foam among the materials that can be processed.
Can the water jet cut irregular glass shapes?
Yes. The machine is designed for both straight-line and irregular-shape cutting and can be used for openings and shaped profiles according to the programmed cutting path.
Can it cut laminated glass?
Yes. Laminated glass is included among the materials listed for the SANKEN CNC water jet cutting machine.
What is the cutting accuracy?
The SKWJ catalogue models are specified with a cutting accuracy of ±0.1 mm.
What is the maximum cutting size?
The largest catalogue configuration, SKWJ-4525A, provides a maximum cutting size of 4500 × 2500 mm.
How should I select an SKWJ model?
Model selection should primarily consider maximum workpiece dimensions, required cutting area, material type and available factory space. These details should be confirmed before the final configuration is selected.
Equipment Selection and Technical Support
For equipment selection, provide the material type, maximum workpiece dimensions, required cutting shapes and available factory space. SANKEN can review the suitable SKWJ cutting-table size and machine configuration according to the planned cutting application.
