SANKEN Automatic Glass Storage System

Automatic Glass Storage and Feeding

The SANKEN AL series connects raw glass storage with CNC glass cutting operations. It coordinates sheet selection and loading using warehouse stock information and optimized cutting tasks, providing an organized supply of glass for different production requirements.

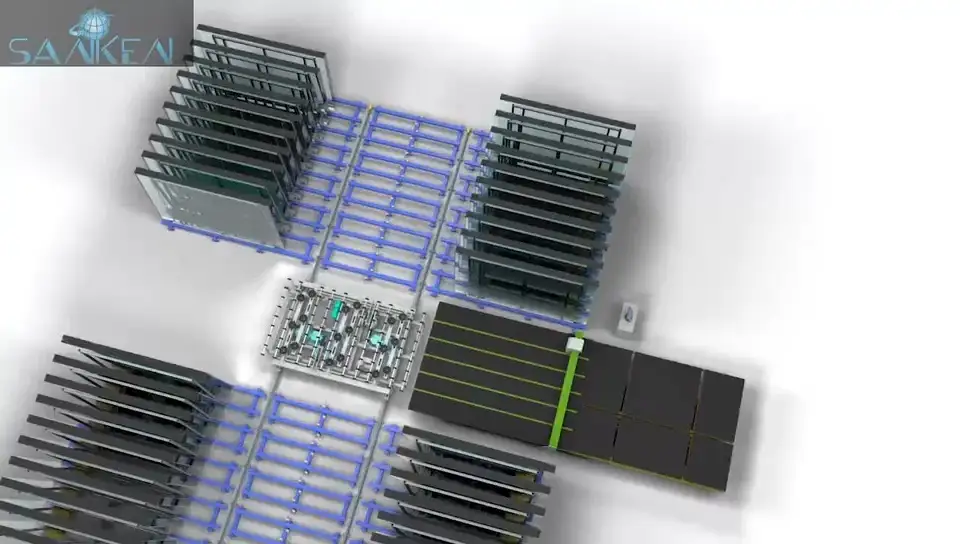

Automatic Glass Storage System

Key Functions

Automatic Glass Selection and Loading

Selects stored glass according to cutting tasks and transfers it to the CNC cutting line, reducing repeated manual changeovers between glass specifications.

Multiple Storage Configurations

The 3700 × 2500 mm models offer 20, 30, 40 or 60 racks. The 6000 × 3300 mm models offer 40 or 60 racks, allowing the storage configuration to be matched to the required stock range.

Coordinated Glass Replenishment

The system is designed to replenish glass at the loading table while the cutting machine continues production, helping maintain the supply of sheets for scheduled cutting tasks.

Factory-Specific Arrangement

Storage direction can be planned around the factory layout, with the arrangement reviewed alongside the cutting line and glass handling areas.

Working Sequence

Technical Specifications

AL-series catalogue configurations are listed below. Final equipment selection and layout are confirmed for each project.

3700 × 2500 mm Glass

Maximum glass dimensions: 3700 × 2500 mm
Loading capacity per rack: 6–7 tonnes

6000 × 3300 mm Glass

Maximum glass dimensions: 6000 × 3300 mm
Loading capacity per rack: 15 tonnes

Common Specifications

Layout and Cutting-Line Integration

The storage arrangement is planned to suit the available factory space and the position of the CNC cutting line. Configuration should be reviewed against glass dimensions, stock quantities, replenishment access and the feeding requirements of the connected equipment.

Information for Equipment Selection

Please provide your maximum glass dimensions, glass thickness range, stock quantities, required cutting capacity and factory floor plan. For an existing cutting line, include its model and loading arrangement so that connection requirements can be reviewed.

Frequently Asked Questions

Which rack configuration should I choose?

Select the glass size range first, then review rack quantity against the types and quantities of glass you need to store. The catalogue offers 20 to 60 racks, depending on the model.

Can the system work with an existing cutting line?

Connection requirements should be reviewed using the cutting-line model, loading arrangement and task-control requirements before the equipment configuration is confirmed.

Can the power supply be customized?

The catalogue specification is 380 V / 50 Hz. Please provide your local electrical supply requirements so that the available configuration can be confirmed.

What are the delivery, payment and warranty terms?

Please request a project quotation for the applicable delivery schedule, payment terms and warranty coverage.

Installation and Technical Support
