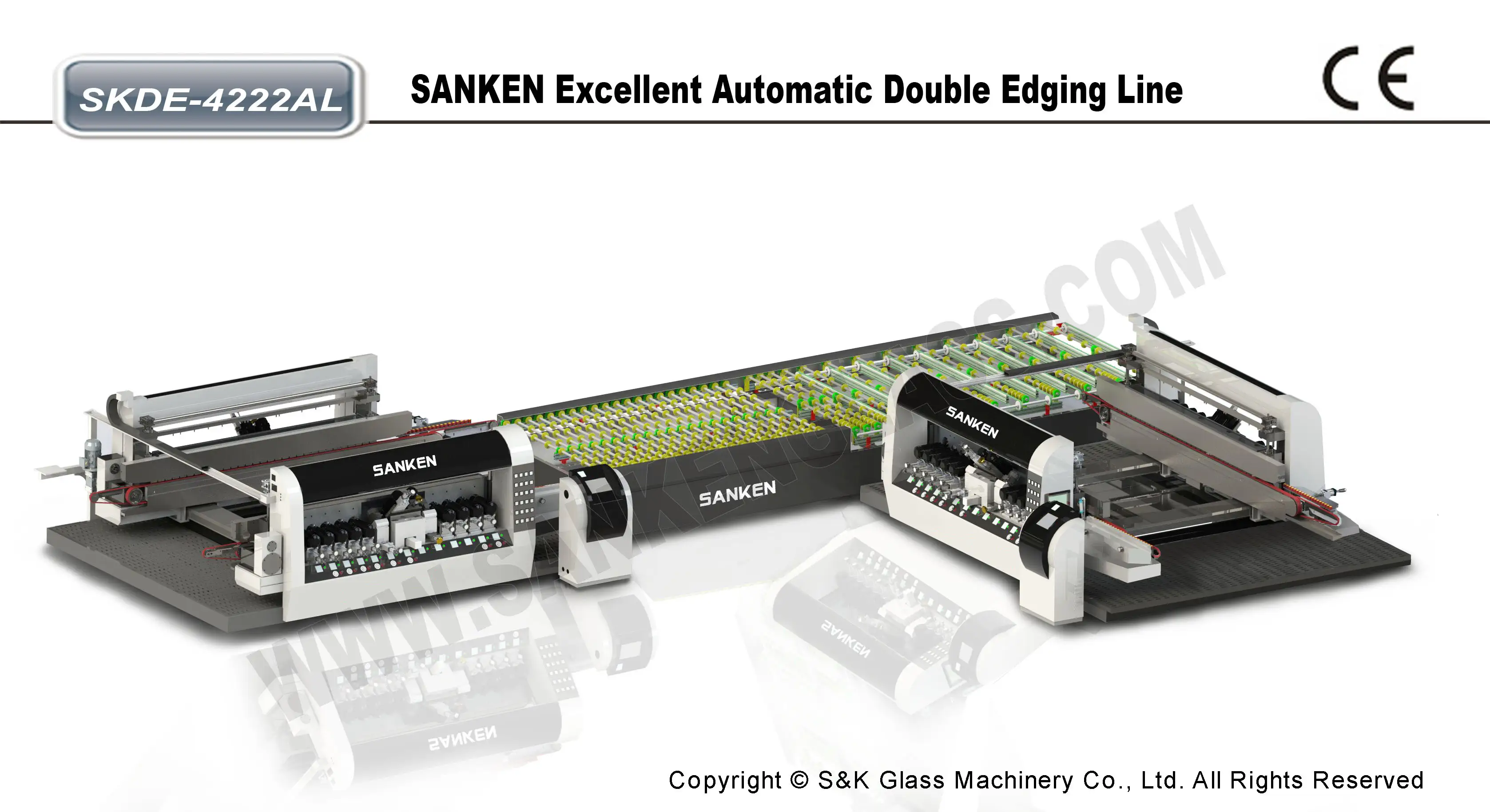

SANKEN Glass Straight Line Double Edging Line SKDE-4222AL
High-Efficiency Fully Automatic Glass Double Edging Line (SKDE-4222AL)
The SANKEN SKDE-4222AL Double Edging Line is the ultimate solution for the professional batch processing of rectangular glass
- Flexible Layout: It can be configured as a linear production line or an L-shaped production line to perfectly accommodate the specific layout of your plant
. - Exceptional Precision: The equipment adopts a high-precision transmission structure featuring double linear guides and double ball screws, ensuring highly precise dimensions and perfectly uniform diagonals
. - Massive Labor Savings: Fully automated operation drastically reduces manual intervention, saving up to 15 laborers while boosting safety and output efficiency
. - User-Friendly Control: Features an intuitive touch screen operating system that makes daily operation easier and significantly lowers the failure rate
.
Main Technical Specifications:
- Model: SKDE-4222AL
- Max. Processing Size: 4200 x 2500 mm
- Min. Processing Size: 500 x 300 mm
- Processing Thickness: 3 ~ 25 mm
- Processing Speed: 0-18 m/min
- Quantity of Motors: 22 x 2
- Total Power: 148 KW
- Weight: 16.5 Tons
Product Information
The SANKEN SKDE-4222AL Glass Double Edging Production Line is expertly designed for grinding rectangular glass in high-volume batches. It flawlessly integrates two double edgers with an automatic transit table to complete four-sided grinding, chamfering, and high-brightness polishing all at once. Driven by a high-precision structure with double linear guides and double ball screws, it guarantees stable transmission, uniform diagonals, and flawless accuracy. With an incredibly low failure rate and advanced safety features, it is your top choice for efficient, labor-saving glass edge processing.
Specification Drawing
Advantage
APPLICATION
This heavy-duty line is widely suitable for processing architectural glass, home appliance glass, furniture glass, solar glass, and bathroom glass, providing a high-efficiency edge-processing solution for global glass manufacturers.
