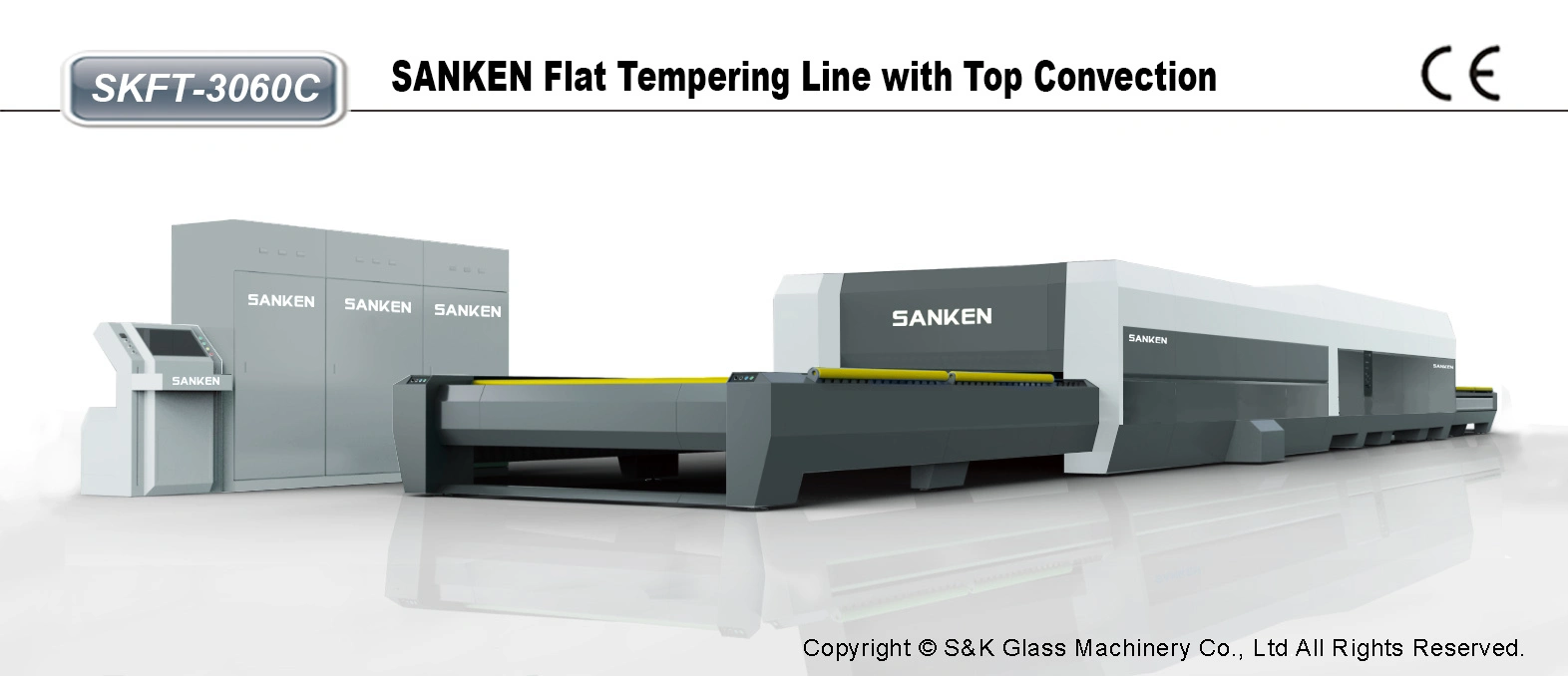

Flat Glass Tempering Furnace – SKFT Series
The SANKEN SKFT series provides flat glass tempering equipment in ten model configurations. Select the furnace according to glass dimensions, thickness, required output and available factory space.
• Maximum processing sizes vary by model, up to 3300 × 8000 mm.
• Listed glass thickness ranges vary by model, from 2.85–19 mm to 5–19 mm.
• Multi-point temperature detection and module temperature control.
• Variable-frequency blower control for the quenching process.
• Monitoring of loading, heating, cooling and unloading mechanisms.
• Model-specific equipment configuration and factory layout planning.
Flat Glass Tempering Furnaces
The SANKEN SKFT series provides heating and quenching equipment for flat glass tempering. Ten models cover different glass sizes, thickness ranges and installation requirements.
Model selection is based on the intended glass products, sheet dimensions, thickness, production requirements and available factory utilities. Thickness limits vary by model; the complete specification tables below should be used for selection.
Heating, Quenching and Control
Multi-Point Temperature Detection
Temperature detection at multiple points supports monitoring and adjustment of the furnace heating zones.
Blower and Heating Control
Variable-frequency blower control and module temperature control support the heating and quenching process. Control options depend on the selected model.
Thermal Insulation
High-temperature-resistant materials and the furnace assembly are designed to limit heat loss. Actual energy use depends on the model, glass thickness, loading and operating cycle.
Process Monitoring and Alarms
The control system monitors loading, heating, cooling, unloading and relevant drive mechanisms. Motor fault alarms help operators identify issues during operation.
Glass Quality and Process Settings
Heating and quenching settings are adjusted to suit the glass thickness and product requirements.
Working Sequence
Cutting, edge processing, required holes and washing are completed before tempering.
Machine Views

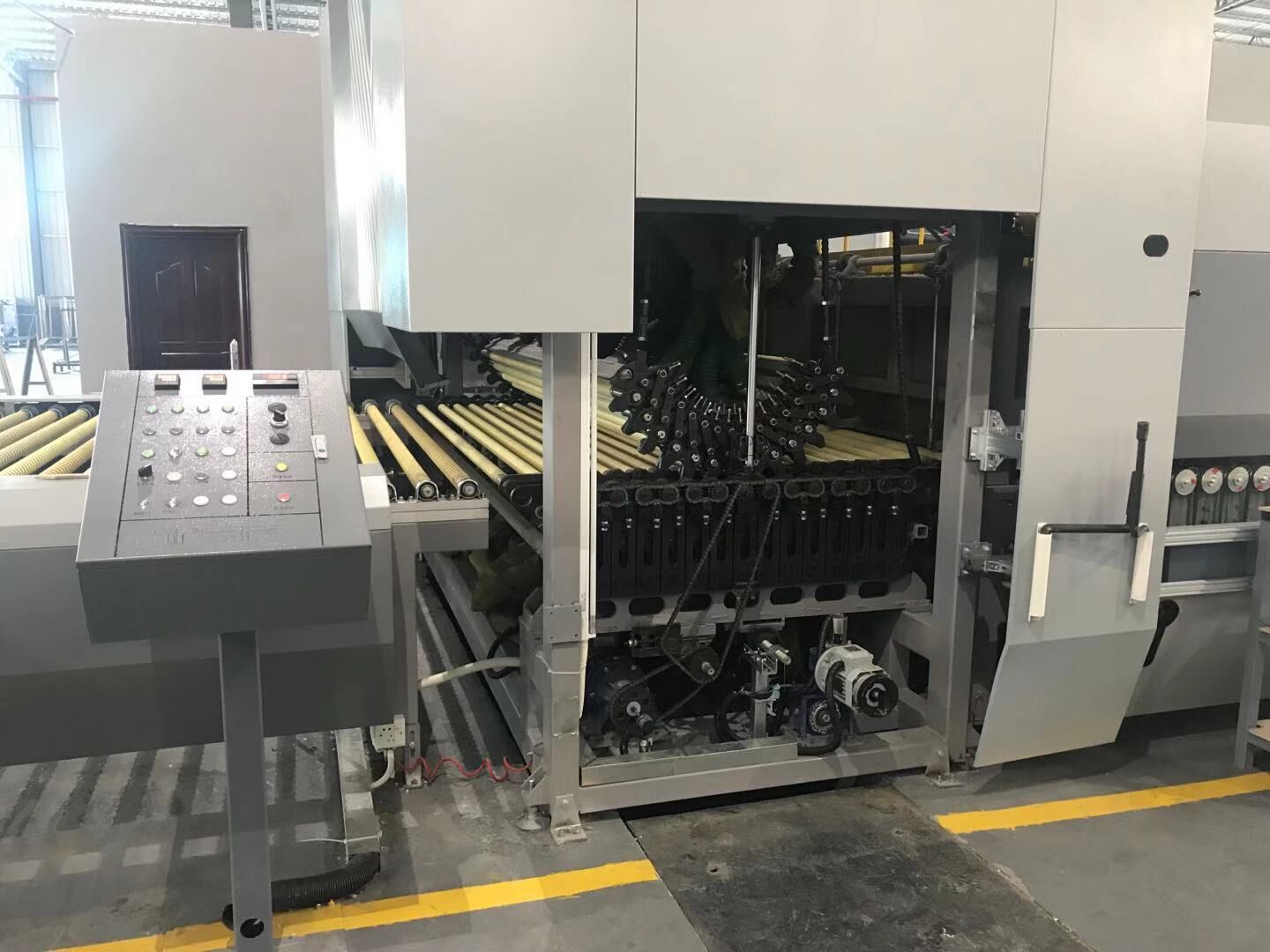

SANKEN Flat Glass Tempering Furnace – View 1

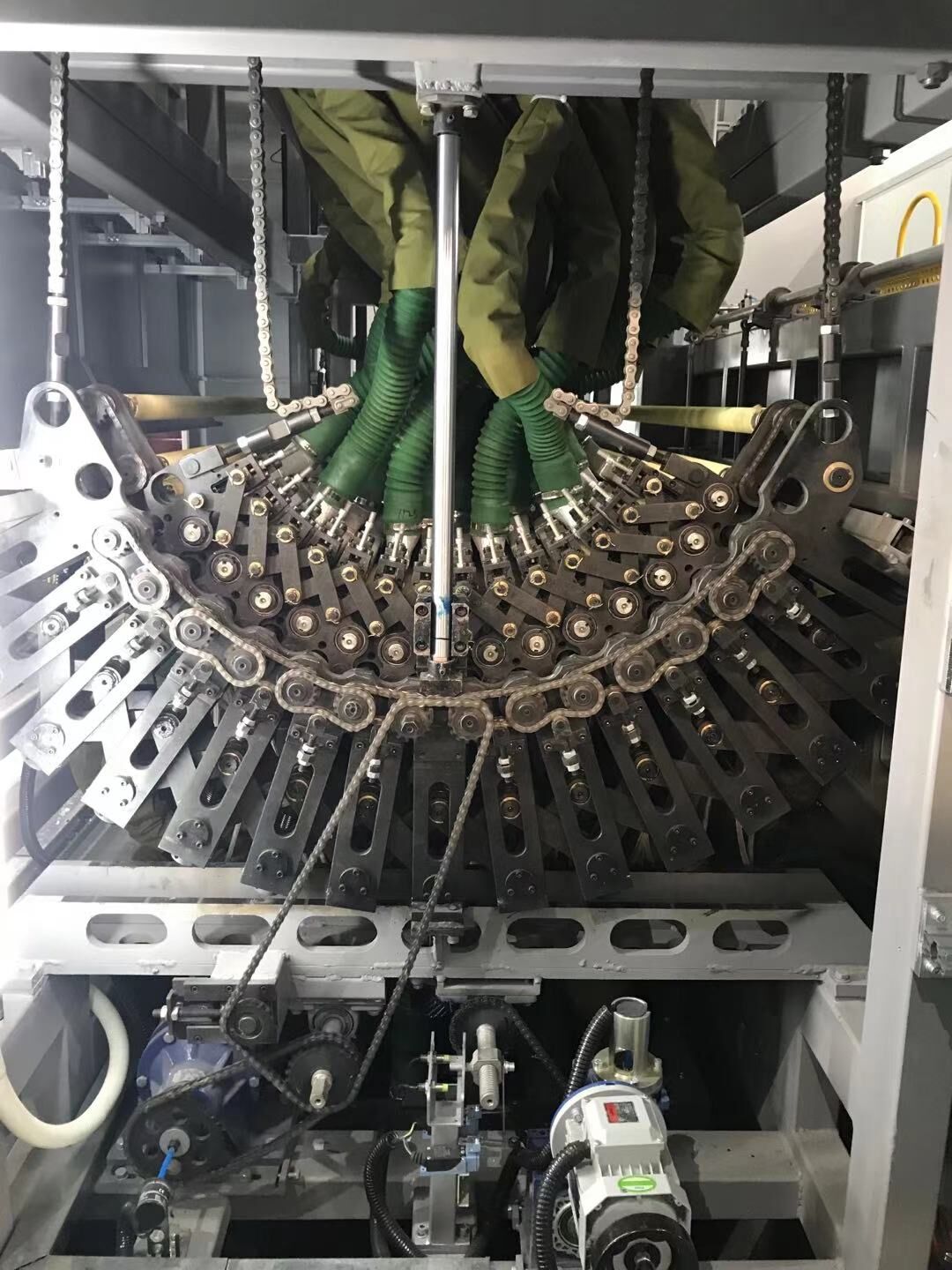

SANKEN Flat Glass Tempering Furnace – View 2

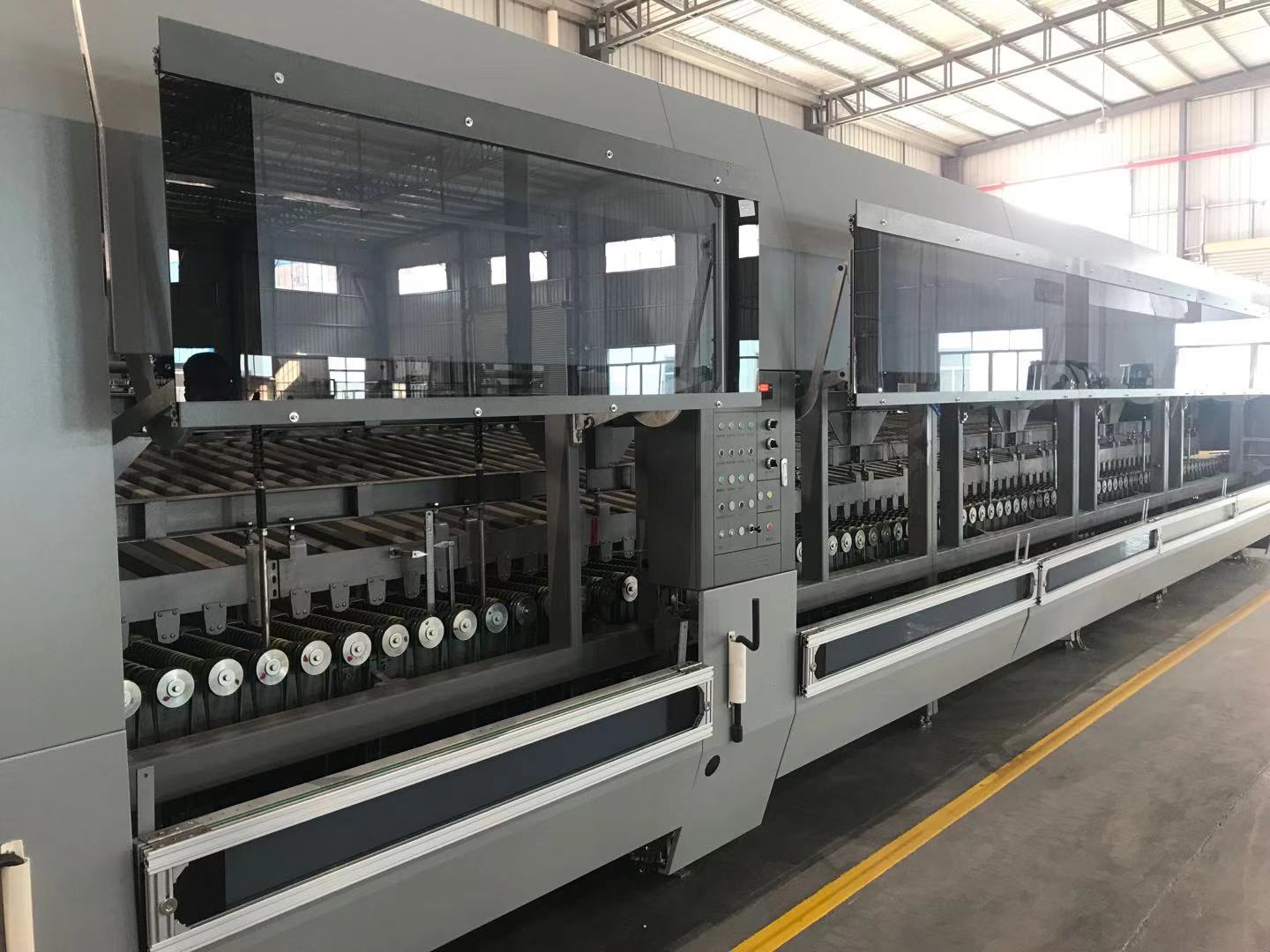

SANKEN Flat Glass Tempering Furnace – View 3

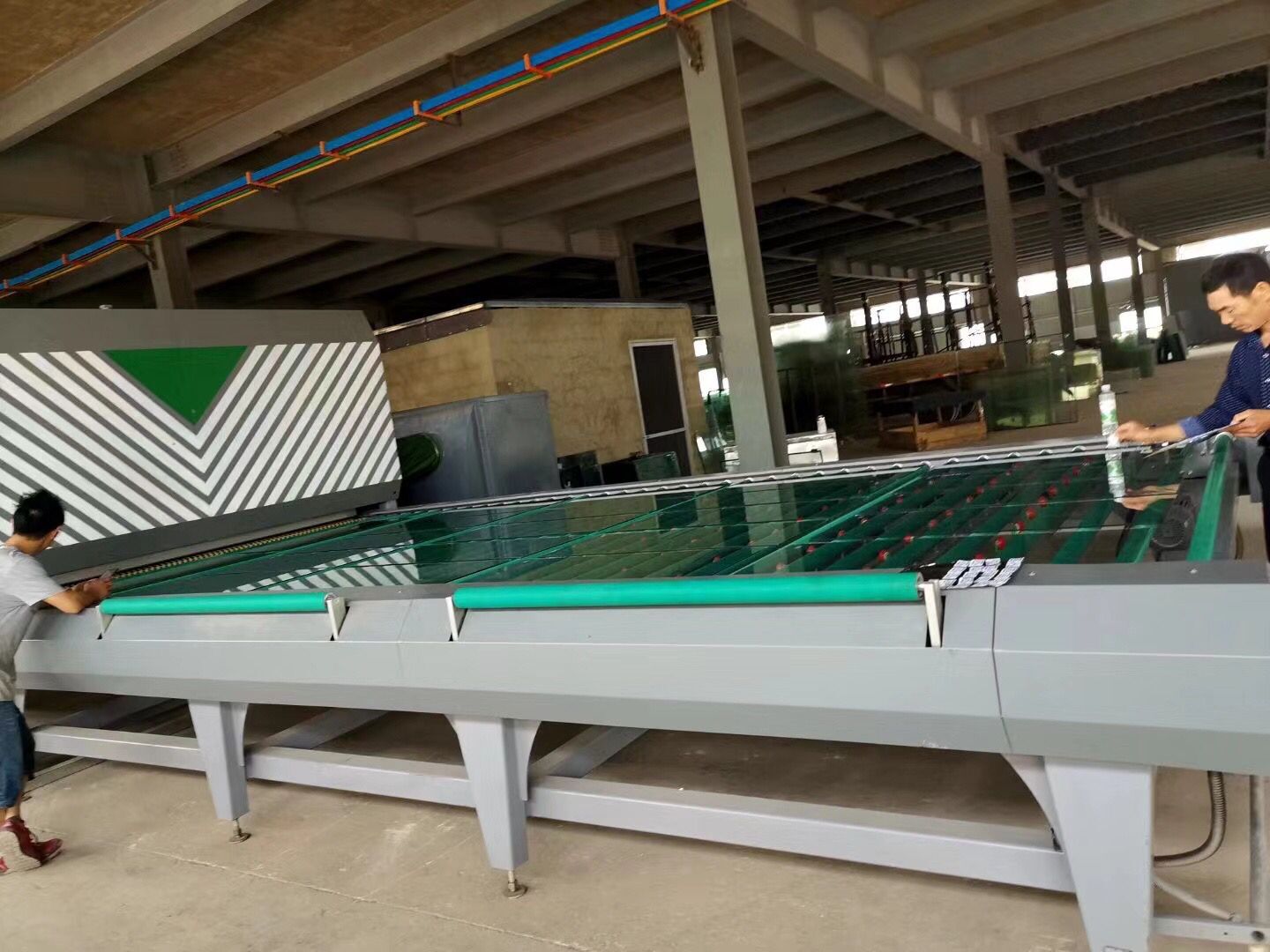

SANKEN Flat Glass Tempering Furnace – View 4
SKFT Series Technical Specifications
| Model | Maximum Size (mm) | Minimum Size (mm) | Thickness (mm) |
|---|---|---|---|
| SKFT-1560D | 1500 × 6000 | 220 × 150 | 2.85–19 |
| SKFT-1260 | 1200 × 6000 | 220 × 150 | 3–19 |
| SKFT-1525 | 1500 × 2500 | 220 × 150 | 4–19 |
| SKFT-2030 | 2000 × 3000 | 260 × 150 | 4–19 |
| SKFT-2436 | 2440 × 3660 | 280 × 150 | 4–19 |
| SKFT-2442 | 2440 × 4200 | 280 × 150 | 4–19 |
| SKFT-2560 | 2500 × 6000 | 280 × 150 | 4–19 |
| SKFT-2860 | 2800 × 6000 | 300 × 300 | 4–19 |
| SKFT-3060 | 3000 × 6000 | 300 × 300 | 5–19 |
| SKFT-3380 | 3300 × 8000 | 330 × 330 | 5–19 |
| Model | Production Capacity (batches/h) | Air Pressure (bar) | Power (kW) |
|---|---|---|---|
| SKFT-1560D | 25–27 | 5–7 | 2005 |
| SKFT-1260 | 15–16 | 5–7 | 982 |
| SKFT-1525 | 15–16 | 5–7 | 558 |
| SKFT-2030 | 15–16 | 5–7 | 752 |
| SKFT-2436 | 15–16 | 5–7 | 1005 |
| SKFT-2442 | 15–16 | 5–7 | 1085 |
| SKFT-2560 | 15–16 | 5–7 | 1538 |
| SKFT-2860 | 15–16 | 5–7 | 1773 |
| SKFT-3060 | 15–16 | 5–7 | 1662 |
| SKFT-3380 | 15–16 | 5–7 | 2400 |
| Model | Installation Dimensions (mm) | Weight (tonnes) |
|---|---|---|
| SKFT-1560D | 37500 × 9900 × 3000 | 30 |
| SKFT-1260 | 29000 × 9600 × 3000 | 22 |
| SKFT-1525 | 15000 × 9900 × 3000 | 18 |
| SKFT-2030 | 17000 × 10400 × 3000 | 22 |
| SKFT-2436 | 17900 × 10800 × 3000 | 26 |
| SKFT-2442 | 20300 × 10800 × 3000 | 27 |
| SKFT-2560 | 29000 × 10800 × 3000 | 32 |
| SKFT-2860 | 30400 × 11400 × 3000 | 35 |
| SKFT-3060 | 30400 × 11600 × 3000 | 38 |
| SKFT-3380 | 38400 × 11900 × 3000 | 52 |
Flat Tempering Layout Reference
This layout illustrates the arrangement of a flat tempering furnace and associated equipment within a glass factory. It is a series application reference; the final dimensions and utility arrangement depend on the selected configuration.
Flat Glass Tempering Furnace Layout Reference
We plan the furnace layout around your selected model, glass flow and available factory space.
Equipment Selection and Factory Planning
Provide your maximum and minimum glass dimensions, thickness range, glass type, required output, factory floor plan and available electrical and compressed-air supplies. Include access and space requirements for loading, unloading, blowers, maintenance and glass transfer.
Contact SANKEN for model selection and a project-specific layout.
Frequently Asked Questions
Do all SKFT models process the same thickness range?
Minimum glass thickness ranges from 2.85 to 5 mm, depending on the model. See the specification table to select the appropriate furnace.
What affects production capacity?
Production capacity depends on glass thickness, batch loading and the heating and cooling cycle. Share your glass specifications and output requirements with our team for model selection.
Does this page cover curved glass tempering?
This page covers flat glass tempering. Flat-and-curved equipment is a separate configuration.
Can the electrical supply be customized?
Provide voltage, frequency and available supply capacity for review with the selected furnace configuration.
What are the commercial terms?
We offer a one-year warranty. Delivery usually takes 30–45 working days after receipt of the advance payment, depending on the configuration. Payment terms are 30% in advance by T/T and 70% before shipment.
Installation and Technical Support
SANKEN has been exporting glass-processing machinery since 2002. Support includes equipment configuration, factory layout planning, installation, commissioning, operator training and after-sales technical assistance.
