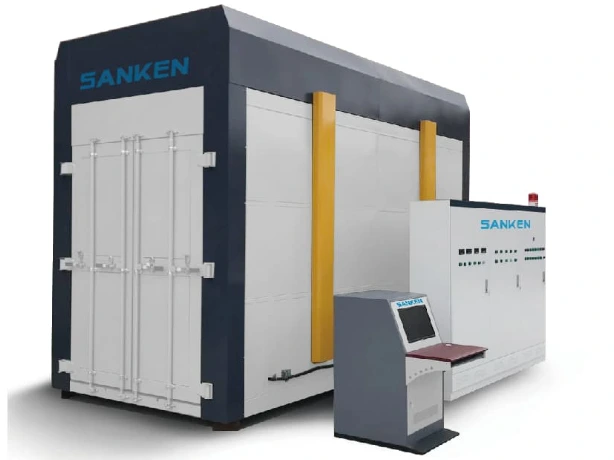

Glass Heat Soak Test Furnace – SKHS Series 1
Glass Heat Soak Test Furnace – SKHS Series 2
Glass Heat Soak Test Furnace – SKHS Series 3
Glass Heat Soak Test Furnace – SKHS Series 4
Glass Heat Soak Test Furnace – SKHS Series 5
Glass Heat Soak Test Furnace – SKHS Series 1
Glass Heat Soak Test Furnace – SKHS Series 2
Glass Heat Soak Test Furnace – SKHS Series 3
Glass Heat Soak Test Furnace – SKHS Series 4
Glass Heat Soak Test Furnace – SKHS Series 5

Glass Heat Soak Test Furnace – SKHS Series

Controlled Heating, Soaking and Cooling for Tempered Glass

The SANKEN SKHS series performs heat soak testing after glass tempering to reduce the risk of spontaneous breakage associated with nickel sulfide inclusions. Forced hot-air circulation, temperature monitoring and computer-controlled cycles support batch testing and process records.

  • SKHS-2030, SKHS-2540 and SKHS-2560 models.
  • Maximum glass sizes from 2000 × 3000 to 2500 × 6000 mm.
  • Glass thickness range: 4–25 mm.
  • Batch load capacity: 2,500–6,000 kg, depending on model.
  • Programmable heating, holding and cooling stages.
  • Temperature curves, stored cycle data and report printing.
5.0
design customization

    oops...!

    no product data.

    Go to homepage

    Heat Soak Testing for Tempered Glass

    The SANKEN SKHS series is used after glass tempering. A controlled heat soak cycle encourages susceptible panes to break during testing, helping reduce the risk of nickel sulfide-related spontaneous breakage after installation.

    Choose from three models to match your glass dimensions, batch loading requirements and factory space. The system combines forced hot-air circulation, temperature monitoring and computer-controlled operation.

    Controlled Heating, Soaking and Cooling

    Forced Hot-Air Circulation

    Circulation fans move heated air through the chamber to distribute heat around the glass load.

    Programmable Test Cycles

    Operators set heating time, holding time and the target holding temperature before starting automatic operation. Temperature acquisition and PID control regulate the heating process.

    Temperature Monitoring

    Thermocouples monitor glass surface temperatures and furnace zones. The computer displays temperature curves so operators can follow the cycle.

    Batch Data and Reports

    The control system stores process temperatures and cycle data for later review. Temperature curves and test reports can be saved and printed for batch documentation.

    Controlled Cooling

    The cooling system manages the cooling stage after soaking, preparing the load for unloading.

    Working Sequence

    Load Tempered Glass → Set Test Cycle → Controlled Heating → Soaking → Cooling → Unloading and Inspection

    Arrange the glass on the loading racks with suitable spacing for air circulation and temperature monitoring. After the cycle, inspect the load and retain the batch records before releasing the glass for the next production stage.

    Technical Specifications

    Parameter SKHS-2030 SKHS-2540 SKHS-2560
    Maximum Glass Size 2000 × 3000 mm 2500 × 4000 mm 2500 × 6000 mm
    Thickness 4–25 mm 4–25 mm 4–25 mm
    Batch Load Capacity 2500 kg/cycle 4000 kg/cycle 6000 kg/cycle
    Heating System Power 154 kW 208 kW 324 kW
    Total Air Blower Power 7 kW 11 kW 29.4 kW
    Temperature Rise Rate ≤ 3 °C/min ≤ 3 °C/min ≤ 3 °C/min
    Furnace Inner Size 3800 × 1920 × 2520 mm 4800 × 1920 × 3020 mm 5800 × 1920 × 3520 mm
    Equipment Dimensions 4300 × 3000 × 3600 mm 5300 × 3000 × 4100 mm 6300 × 3000 × 4100 mm

    Applications

    For tempered architectural glass where heat soak testing is specified, including façade glazing, curtain walls, balustrades and other building glass projects. We review glass dimensions, thickness, batch loading and project testing requirements when selecting the furnace.

    Heat Soak Furnace – Equipment Views

    SANKEN glass heat soak test furnace – equipment view 1
    SANKEN glass heat soak test furnace – equipment view 2
    SANKEN glass heat soak test furnace – equipment view 3
    SANKEN glass heat soak test furnace – equipment view 4
    SANKEN glass heat soak test furnace – equipment view 5
    SANKEN glass heat soak test furnace – equipment view 6

    Model Selection and Factory Planning

    Send us your largest glass dimensions, thickness range, target batch weight, daily production requirements and factory plan. Include the available power supply, door access and space for loading racks, unloading and maintenance.

    Contact SANKEN to discuss furnace selection and installation requirements.

    Frequently Asked Questions

    Does this furnace replace a glass tempering furnace?

    No. Heat soak testing is carried out after tempering. It is a separate batch process for tempered glass.

    Why is heat soak testing used?

    It helps reduce the risk of spontaneous breakage associated with nickel sulfide inclusions by encouraging susceptible panes to fail during the test cycle.

    Does heat soak testing eliminate all breakage risk?

    Heat soak testing reduces the risk of nickel sulfide-related spontaneous breakage, but does not eliminate every possible cause of glass breakage.

    Can I retrieve the temperature records?

    Yes. The control system stores cycle data and temperature curves for later review and supports report printing.

    How do I choose a furnace size?

    Match the model to your glass dimensions, batch weight and loading arrangement. Share these requirements with us so we can review the chamber configuration and factory access.

    Supply and After-Sales Support

    Voltage Configuration

    We can configure the voltage to suit your factory power supply.

    Warranty

    We offer a one-year warranty. Covered electrical component faults can be repaired or replaced during the warranty period, excluding damage caused by operator error. Technical support continues after the warranty period.

    Delivery

    Delivery is 30 working days after receipt of the 30% advance payment.

    Payment Terms

    30% advance payment by T/T, with the remaining 70% paid by T/T before shipment.
