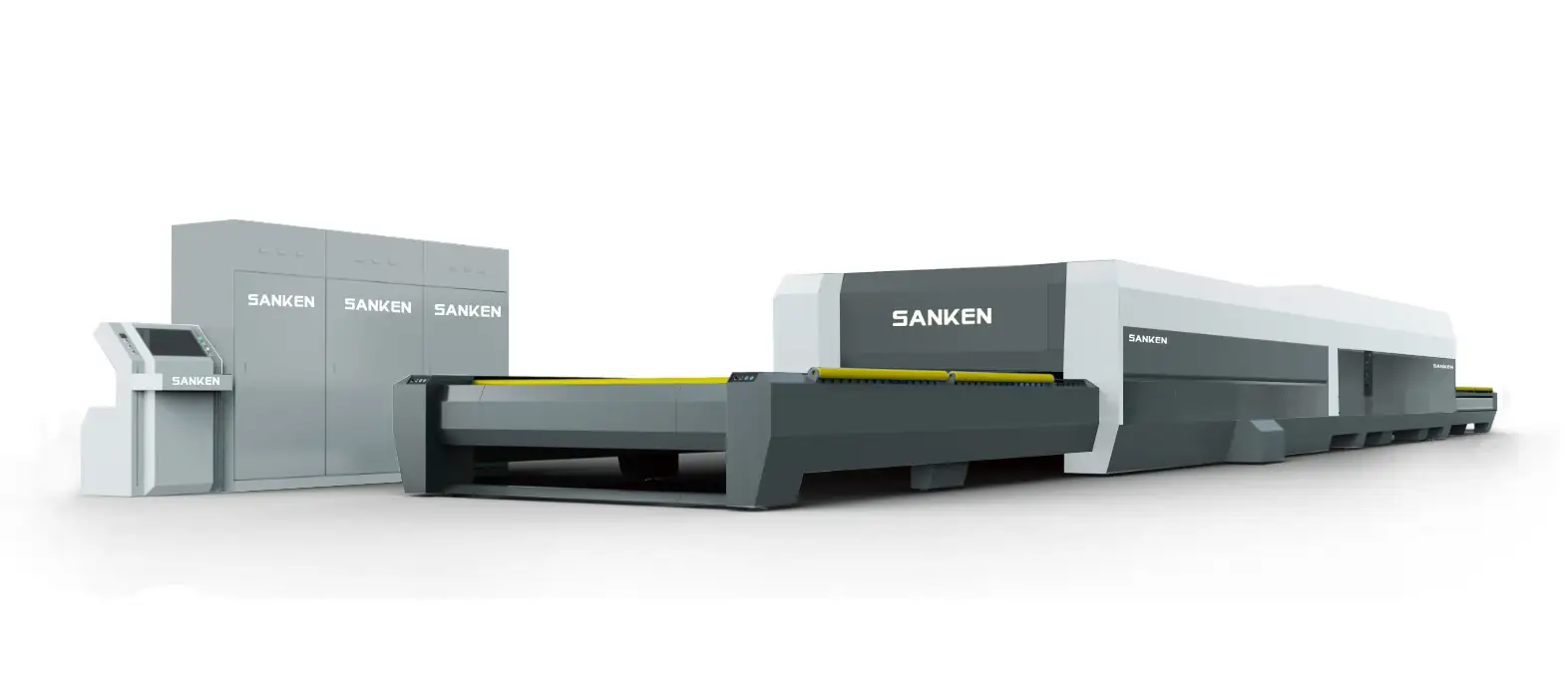

Flat & Curved Glass Tempering Furnace – SKFB Series
The SANKEN SKFB series supports flat and curved glass tempering, combining controlled heating, glass forming and air quenching in one production system. Choose from eight W and CW models to match your glass dimensions and production requirements.
Overview Points:
- Eight models for different glass processing sizes.
- Flat and curved glass tempering in one system.
- CW models with forced convection heating for heat-treatable Low-E glass.
- Multi-zone temperature control for furnace heating.
- Production monitoring and equipment alarms.
- Model selection based on glass size, thickness and bending radius.
- Factory layout planning for loading, processing and unloading.
Flat & Curved Glass Tempering
The SANKEN SKFB series combines flat and curved glass tempering in one production system. Eight models provide different processing sizes, helping you select a furnace around your glass dimensions and factory space.
For Flat Tempering
The SKFB series heats flat glass and then transfers it to the flat quenching section. Air cooling tempers the glass while maintaining its flat shape.
Flat Glass Processing
- Loading: prepared glass enters the furnace on the loading rollers.
- Heating: furnace temperature and heating time are set for the glass type and thickness.
- Quenching: heated glass enters the flat quenching section for air cooling.
- Unloading: tempered glass leaves the cooling section for inspection and handling.
Selection for Flat Glass
Choose the model around your maximum and minimum glass dimensions, thickness range and target output. We also review the glass type, coating, electrical supply and space for loading and unloading.
For Curved Tempering
For curved glass production, heated glass enters the bending and quenching section. The forming system shapes the glass to the required curve, and air cooling tempers it in the curved profile.
Computer-Controlled Bending
Synchronized upper and lower forming rollers adjust the curved profile under computer control. Multiple arc-adjustment mechanisms allow individual adjustment and fine tuning of the forming shape. Key forming components are machined using CNC lathes.
Curved Glass Processing
- Loading and heating: prepared flat glass is heated for forming.
- Bending: the heated glass is formed to the required curvature.
- Quenching: the shaped glass is air cooled in the bending and quenching section.
- Unloading: curved tempered glass is removed for dimensional and quality inspection.
Selection for Curved Glass
Send us the glass thickness, bending radius, arc length, straight-edge length and profile drawing. These dimensions define the forming requirement and help us select the bending configuration.
We review the curved glass processing size together with the required radius. Tell us whether your drawing uses arc length or chord length, and mark the bending direction so we can match the equipment to the finished shape.
Flat and Curved Production Requirements
| Production Requirement | For Flat Tempering | For Curved Tempering |
|---|---|---|
| Finished shape | Flat glass | Curved glass |
| Processing stages | Heating and flat air quenching | Heating, bending and curved air quenching |
| Glass dimensions | Length, width and thickness | Arc or chord length, straight-edge length and thickness |
| Additional forming information | Glass type and coating | Bending radius, bending direction and profile drawing |
| Model selection | Glass size, thickness and output | Glass size, thickness, radius and output |
Heating, Bending and Quenching
Glass passes through the heating stage before forming and air quenching. For curved glass, the bending section shapes the heated glass to the required profile. We review the glass size, thickness and bending radius together when selecting the furnace configuration.
Temperature Control
Multi-zone temperature control manages heating across the furnace. Operators can adjust process settings for different glass specifications and monitor production through the control system.
Production Monitoring
The control system monitors glass transport, heating, cooling and unloading. Equipment alarms help operators identify faults and respond during production.
W and CW Configurations
The SKFB series includes W and CW models. CW models incorporate forced convection heating for heat-treatable Low-E glass. We select the heating configuration around your glass type, coating and processing requirements.
For Flat Tempering – Specifications
| Model | Maximum Glass Size (mm) | Minimum Glass Size (mm) | Thickness (mm) | Production Capacity (batches/h) |
|---|---|---|---|---|
| SKFB-0825W | 1200 × 2500 | 220 × 150 | 3–19 | 15–16 |
| SKFB-1225W | 1200 × 2500 | 220 × 150 | 3–19 | 15–16 |
| SKFB-2442W | 2440 × 4200 | 280 × 150 | 4–19 | 15–16 |
| SKFB-2436CW | 2440 × 3660 | 280 × 150 | 4–19 | 15–16 |
| SKFB-2442CW | 2440 × 4200 | 280 × 150 | 4–19 | 15–16 |
| SKFB-2560CW | 2500 × 6000 | 280 × 150 | 4–19 | 15–16 |
| SKFB-2860CW | 2800 × 6000 | 300 × 150 | 4–19 | 15–16 |
| SKFB-3060CW | 3000 × 6000 | 300 × 150 | 5–19 | 15–16 |
For Curved Tempering – Specifications
| Model | Maximum Glass Size (mm) | Minimum Glass Size (mm) | Thickness (mm) | Bending Radius (mm) | Production Capacity (2 positions/h) |
|---|---|---|---|---|---|
| SKFB-0825W | 800 × 500 | 300 × 200 | 3.2–8 | R ≥ 300 | 26–32 |
| SKFB-1225W | 1250 × 900 | 350× 350 | 3.2–8 | R ≥ 300 | 26–32 |
| SKFB-2442W | 2440 × 1800 | 400 × 400 | 5–19 | R ≥ 300 | 26–32 |
| SKFB-2436CW | 2440 × 1800 | 400 × 400 | 5–19 | R ≥ 300 | 26–32 |
| SKFB-2442CW | 2440 × 1800 | 400 × 400 | 5–19 | R ≥ 300 | 26–32 |
| SKFB-2560CW | 2440 × 1800 | 400 × 400 | 5–19 | R ≥ 300 | 26–32 |
| SKFB-2860CW | 2800 × 1800 | 400 × 400 | 5–19 | R ≥ 300 | 26–32 |
| SKFB-3060CW | 3000 × 1800 | 400 × 400 | 5–19 | R ≥ 300 | 26–32 |
Equipment and Installation Parameters
| Model | Air Pressure (bar) | Power (kW) | Machine Dimensions (mm) | Weight (t) |
|---|---|---|---|---|
| SKFB-0825W | 5–7 | 420 | 15000 × 9600 × 3000 | 15.5 |
| SKFB-1225W | 5–7 | 617 | 15000 × 9600 × 3000 | 15.5 |
| SKFB-2442W | 5–7 | 1085 | 20300 × 10800 × 3000 | 27 |
| SKFB-2436CW | 5–7 | 1064 | 19400 × 10800 × 3000 | 27 |
| SKFB-2442CW | 5–7 | 1172 | 21800 × 10800 × 3000 | 28 |
| SKFB-2560CW | 5–7 | 1556 | 29000 × 10800 × 3000 | 34 |
| SKFB-2860CW | 5–7 | 1794 | 30400 × 11400 × 3000 | 37 |
| SKFB-3060CW | 5–7 | 1697 | 30400 × 11600 × 3000 | 40 |
Flat & Curved Tempering Furnace Layout Reference
We plan the furnace layout around your selected model, glass flow and available factory space.
Plan Your Glass Production
Send us your maximum and minimum glass dimensions, glass thickness, required bending radius and target output. We will help you select the model and plan the furnace position, loading access and unloading space.
Frequently Asked Questions
Can the furnace produce both flat and curved glass?
Yes. The SKFB series is designed for flat and curved glass tempering.
How do I choose a model?
Start with your glass dimensions, then review thickness, bending radius and production requirements with us.
Which information is needed for curved glass?
Send the glass dimensions, thickness, bending radius and profile drawing so we can review the forming requirements.
Can I use the same settings for every glass product?
Heating, forming and quenching settings need to suit the glass specification and required shape.
Discuss Your Furnace Requirements
Contact SANKEN with your glass specifications and factory plan. We will discuss model selection, equipment configuration and installation requirements with you.
