With 23+ years of service experience, a global supplier of professional glass processing machinery.

Premium Sanken Quenching Glass Stove and Polisher Machine - Glass Grinding Machine and Glass Edger 1

Premium Sanken Quenching Glass Stove and Polisher Machine - Glass Grinding Machine and Glass Edger 2

Premium Sanken Quenching Glass Stove and Polisher Machine - Glass Grinding Machine and Glass Edger 3

Premium Sanken Quenching Glass Stove and Polisher Machine - Glass Grinding Machine and Glass Edger 4

Premium Sanken Quenching Glass Stove and Polisher Machine - Glass Grinding Machine and Glass Edger 5

Premium Sanken Quenching Glass Stove and Polisher Machine - Glass Grinding Machine and Glass Edger 6

Premium Sanken Quenching Glass Stove and Polisher Machine - Glass Grinding Machine and Glass Edger 7

Premium Sanken Quenching Glass Stove and Polisher Machine - Glass Grinding Machine and Glass Edger

Shipping Cost: :

Contact the supplier about freight and estimated delivery time.

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Processing Thickness:

3-19 mm

Processing Speed:

1-5 m/min

Certification:

CE, ISO

Model NO.:

SKS-02

Inquiry

Write a Review

Power

5 Kw

Machine Size

2500 * 2500 * 2000 mm

Glass Thickness

3-30 mm

Condition

New

Control System

Manually

Package Gross Weight

999.000kg

Package Size

999.00cm * 999.00cm * 999.00cm

Production Capacity

45 Sets/Year

HS Code

8464901900

Origin

China

Trademark

SANKEN

Specification

100-2000 mm

Transport Package

Export Packing

Delivery

35 Days

After-Sales Service

1 Year

Warranty

1 Year

Voltage

380V

Product Description

SANKEN Glass high quality irregular shape glass grinding machine-SKS-02
Premium Sanken Quenching Glass Stove and Polisher Machine

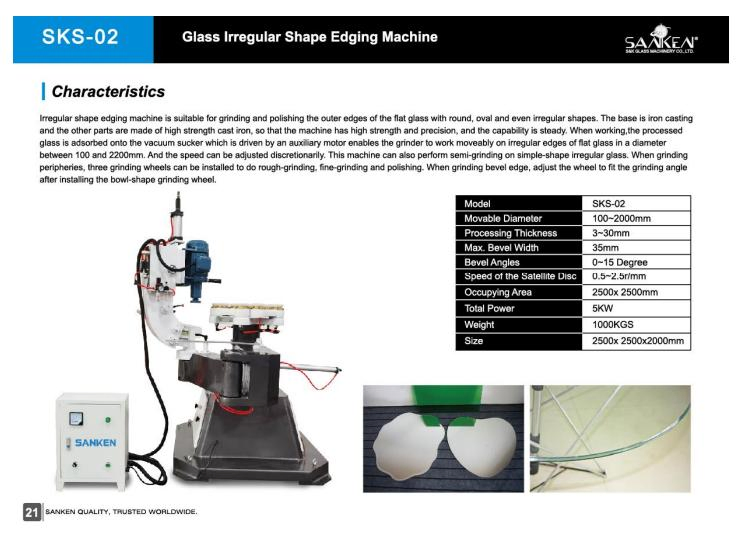

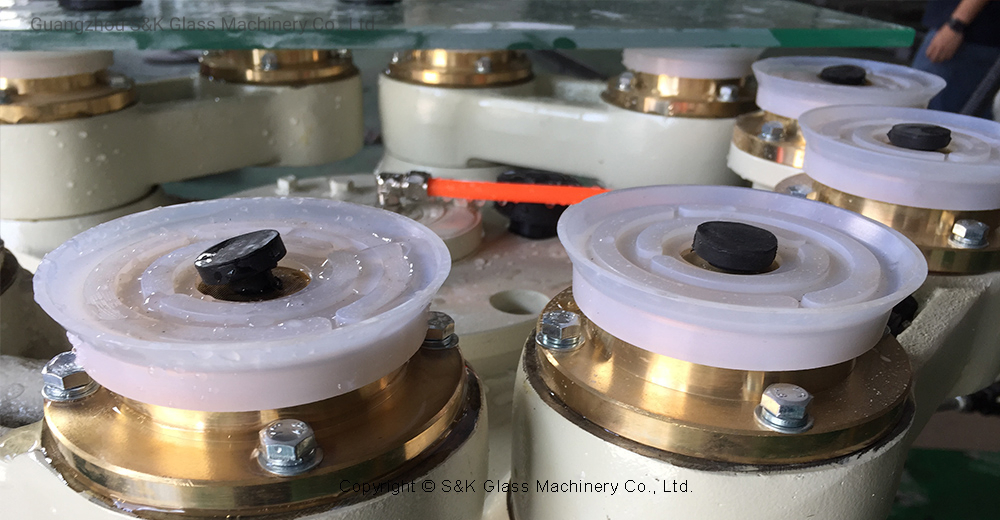

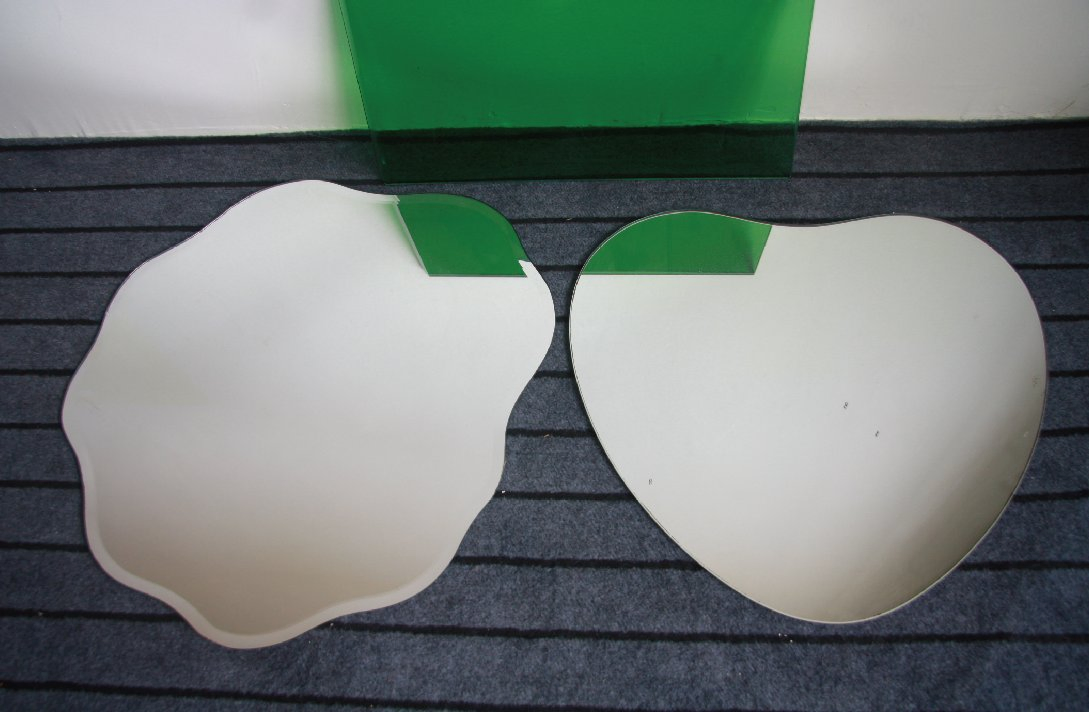

SANKEN GLASS High-quality Irregular shapes grinding polishing machine is suitable for grinding and polishing the outer circle of the flat glass which are round, oval and even irregular . The base is made of cast and the other parts are made of high strength cast iron , so that the machine has high strength and precision , and the capability is steady . When working , the processed glass is adsorbed onto the vacuum sucker which is driven by an auxiliary motor enables the grinder to work moveably irregular edges of flat glass in a diameter between 100 and 2200mm . And the speed can be adjusted discretionarily . This machine can also perform semi - grinding on simple - shape irregular glass . When grinding peripheries , three grinding wheels should be installed to do rough - grinding , fine - grinding and polishing . When grinding bevel edge , adjust the wheel to fit the grinding angle after installing the bowl - shape grinding wheel.
SANKEN GLASS, supplying you the best quality machines and excellent after-sales service. Cooperating with us, we will treat your project as ours, doing our best for you! Premium Sanken Quenching Glass Stove and Polisher Machine

Model	Movable Diameter	Bevel Angle	Total power	Thickness	Weight	Machine size
SKS-02	100 x 2000 mm	0-15 degrees	5 KW	3-30 mm	1.0 Tons	2500 x 2500 x 2000 mm
