Insulating Glass Auxiliary Equipment
SANKEN insulating glass auxiliary equipment supports spacer preparation, sealant application, gas filling and material handling around the main IG production line. Each machine serves a dedicated operation, allowing you to select the equipment needed for your existing workshop or a new production arrangement.
- SKIB-01 — Spacer Bending: Servo-controlled aluminium spacer frame bending with four storage magazines and automatic joint avoidance.
- SKID-01 — Desiccant Filling: Automatic drilling, filling and sealing with adjustable filling height.
- SKIE-01 — Butyl Extrusion: Temperature-controlled primary butyl application to both sides of the spacer frame.
- SKIS-01 — Sealing Table: Supports IGUs during secondary sealant application.
- SKIG-01 — Inert-Gas Filling: Provides a separate gas-filling station for IGU production.
- SKIC-01 — Frame Conveying: Transfers prepared spacer frames between workstations.
- SKIP-01 — Hydraulic Lifting: Provides height adjustment for workstation material handling.
Auxiliary Equipment for Insulating Glass Production
SANKEN supplies auxiliary machines for aluminium spacer preparation, primary butyl application, secondary sealing, inert-gas filling and material handling. Select individual machines or combine workstations around the requirements of your insulating glass production line.
The equipment range includes SKIB-01 spacer bending, SKID-01 desiccant filling, SKIE-01 butyl extrusion, SKIS-01 sealing, SKIG-01 gas filling, SKIC-01 spacer frame conveying and SKIP-01 hydraulic lifting. Each machine serves a separate operation and has its own operating range.
Equipment Views

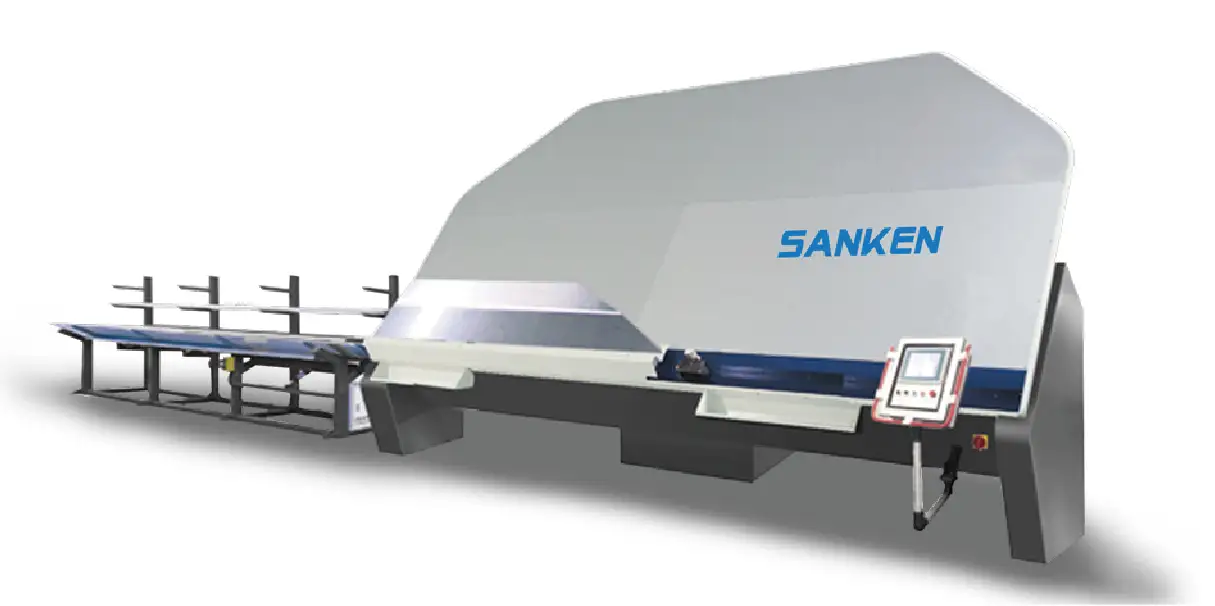

Automatic Aluminium Spacer Bending Machine – SKIB-01
SKIB-01 bends aluminium spacer bars into frames for insulating glass assembly. PLC and touch-screen control coordinate servo-driven feeding, bending and cutting.
- Four storage magazines hold four aluminium spacer specifications.
- Automatic joint avoidance keeps bar joints away from bending and cutting positions.
- Supported frame shapes include rectangles, triangles, regular pentagons, regular hexagons and arcs.
- Spacer width range: 5.5–24 mm; frame sizes: 250 × 250 mm to 2500 × 3500 mm.
| Parameter | SKIB-01 |
|---|---|
| Max. Spacer Frame Size | 2500 × 3500 mm |
| Min. Spacer Frame Size | 250 × 250 mm |
| Spacer Width Range | 5.5–24 mm |
| Production Tolerance | ±0.2 mm |
| Air Pressure | 0.6–0.8 MPa |
| Conveying Speed | 120 m/min |
| Power | 4 kW |
| Power Supply | 380 V / 50 Hz |
| Machine Dimensions (L × W × H) | 10400 × 2200 × 2600 mm |
| Machine Weight | 1700 kg |
The 120 m/min conveying speed describes spacer feeding movement. Completed-frame output depends on frame size, shape, bend sequence and material handling.
Automatic Desiccant Filling Machine – SKID-01
SKID-01 fills desiccant into aluminium spacer frames. Its PLC and touch-screen control system coordinates automatic drilling, filling and sealing of the filling openings.
- Adjustable filling height accommodates different frame sizes.
- AirTAC pneumatic components and Schneider low-voltage electrical components.
- Aluminium spacer specification range: 5.5–20 mm.
- Desiccant granule diameter: 0.5–0.8 mm.
| Parameter | SKID-01 |
|---|---|
| Max. Aluminium Frame Size | 3500 × 2500 mm |
| Min. Aluminium Frame Size | 250 × 250 mm |
| Aluminium Spacer Specification | 5.5–20 mm |
| Desiccant Diameter | 0.5–0.8 mm |
| Processing Time | 5–8 seconds/piece |
| Air Pressure | 0.6–0.8 MPa |
| Power Supply | 220 V / 50 Hz |
| Power | 1 kW |
| Machine Dimensions (L × W × H) | 1100 × 1080 × 3000 mm |
| Machine Weight | 200 kg |
Butyl Extruder – SKIE-01
SKIE-01 applies primary butyl sealant to the sides of the spacer frame before glass assembly. PLC and touch-screen control coordinate positioning, conveying, application and stopping.
- Dual oil cylinders and a pressure-boosting system deliver the butyl material.
- Frequency-controlled conveying adjusts frame transport through the application stage.
- The positioning mechanism adjusts without depressurizing the system.
- A preheating function prepares the material for the selected application temperature.
- Adjustable application heads support coating on both sides of the spacer frame.
| Parameter | SKIE-01 |
|---|---|
| Extrusion Pressure | 12–14 MPa |
| Power Supply | 380 V / 50 Hz |
| Application Temperature | 100–140 °C |
| Total Power | 2.5 kW |
| Air Pressure | 0.5–0.8 MPa |
| Application Head Adjustment Range | 4–20 mm |
| Application Speed | 22 m/min |
| Machine Dimensions (L × W × H) | 3000 × 700 × 1236 mm |
| Machine Weight | 850 kg |
Match the application head setting, temperature and conveying conditions to the selected spacer section and butyl material.
Sealing Table – SKIS-01
SKIS-01 supports insulating glass units at a secondary sealing workstation. Use it with a suitable sealant extrusion system and handling arrangement to position the unit during perimeter sealant application.
| Parameter | SKIS-01 |
|---|---|
| Max. Processing Size | 2500 × 1500 mm |
| Min. Processing Size | 200 × 200 mm |
| Total IGU Thickness | 12–56 mm |
| Air Pressure | 0.5–0.8 MPa |
| Power Supply | 220 V / 50 Hz |
| Total Power | 0.12 kW |
| Machine Dimensions (L × W × H) | 1000 × 1000 × 900 mm |
| Machine Weight | 180 kg |
Inert Gas Filling Machine – SKIG-01
SKIG-01 provides a separate inert-gas filling station for insulating glass production. Select the gas supply and filling procedure for the unit structure and the production process used in your workshop.
| Parameter | SKIG-01 |
|---|---|
| Max. Processing Size | 3500 × 2500 mm |
| Min. Processing Size | 100 × 100 mm |
| Total IGU Thickness | 12–56 mm |
| Air Pressure | 0.5–0.8 MPa |
| Power Supply | 220 V / 50 Hz |
| Total Power | 0.10 kW |
| Machine Weight | 80 kg |
Where the main IG line already provides online gas filling, select a separate filling station according to any additional production or handling requirements.
Spacer Frame Conveyor – SKIC-01
SKIC-01 transfers prepared spacer frames between workstations. Arrange it around the bending, desiccant filling, butyl application and frame-loading areas to suit the workshop flow.
| Parameter | SKIC-01 |
|---|---|
| Max. Frame Size | 3500 × 2500 mm |
| Min. Frame Size | 100 × 100 mm |
| Power Supply | 380 V / 50 Hz |
| Total Power | 0.12 kW |
| Machine Dimensions (L × W × H) | 2150 × 2050 × 2365 mm |
| Machine Weight | 250 kg |
Hydraulic Lifting Platform – SKIP-01
SKIP-01 provides height adjustment for material handling at a workstation. Select its position according to the handling task and the height of connected equipment.
Send the required platform dimensions, lifting range and working load so we can discuss a suitable configuration for your production area.
Selecting a Compatible Equipment Combination
Spacer Preparation
Combine spacer bending, desiccant filling and butyl application around the required spacer material, section dimensions and frame shapes. Match the operating ranges of all selected machines.
SKIB-01 bends spacer widths of 5.5–24 mm, while SKID-01 has a spacer specification range of 5.5–20 mm. SKIE-01 has an application head adjustment range of 4–20 mm. Check the required spacer section against each machine before selecting the combination.
Sealing and Gas Filling
Choose a sealing table and separate gas filler according to the existing line and operating process. Include the required sealant delivery equipment, gas supply and glass handling arrangement in the production plan.
Frame Transfer and Workstation Handling
Position the spacer frame conveyor and lifting platform around the workstations they serve. Coordinate movement routes and operating heights with the main insulating glass line.
Production Flow and Factory Layout
A spacer preparation workflow can combine bending, desiccant filling, primary butyl application and frame transfer before spacer placement on the main IG line. Secondary sealing follows glass assembly and pressing; the gas-filling stage depends on the selected production configuration.
Arrange the auxiliary stations around the main line to keep frame movement and glass handling practical. Allow space for spacer bar storage, frame transfer, material replenishment, sealant containers and maintenance access.
Confirm electrical supplies and compressed-air requirements for each machine. Equipment dimensions describe the machines themselves and do not include all handling space or working aisles.
Frequently Asked Questions
Can I purchase the machines separately?
Yes. Select individual machines or combine the required workstations according to your existing equipment and production process.
Are these seven machines one fully automatic line?
They are separate auxiliary machines for different operations. The automation level of the complete arrangement depends on the selected equipment and its connection with the main insulating glass line.
Does SKIB-01 also fill desiccant?
SKIB-01 bends the spacer frame. SKID-01 is the separate machine for desiccant filling, drilling and sealing.
Does the butyl extruder perform secondary sealing?
SKIE-01 applies primary butyl sealant to the spacer frame before assembly. Secondary sealing requires the appropriate separate sealant application equipment.
Do all machines cover the same spacer range?
Each machine has its own range. SKIB-01 covers spacer widths of 5.5–24 mm; SKID-01 covers spacer specifications of 5.5–20 mm; SKIE-01 provides application head adjustment of 4–20 mm.
Is SKIG-01 the same machine as SKIG-2500L?
SKIG-01 is an inert-gas filling machine. SKIG-2500L is a glass loading machine used for a different handling operation.
What information should I send for equipment selection?
Send your required operations, spacer material and dimensions, frame sizes and shapes, IGU structure, target output, existing equipment, available utilities and factory drawing.
