EVA Glass Vacuum Laminating Machine – SKL Series
The SANKEN SKL series laminates glass with EVA interlayer film using vacuum and heating. The range accommodates different glass formats, silicone bag quantities and loading arrangements. Compatible decorative inserts can be incorporated between glass layers to create fabric, coloured and other decorative laminates.
- Six models: SKL-32172, SKL-32175, SKL-32175A, SKL-32175PLC, SKL-40205PLC and SKL-40255PLC.
- Maximum processing sizes: 3200 × 1700 mm, 4000 × 2000 mm or 4000 × 2500 mm.
- Silicone bags: Two sets for SKL-32172; five sets for the other models.
- Manual handling: SKL-32172 and SKL-32175 use a manual push-pull arrangement.
- Hydraulic lifting: Available on SKL-32175A and all three PLC models.
- PLC touch-screen control: SKL-32175PLC, SKL-40205PLC and SKL-40255PLC.
- Total power: 42–60 kW, depending on the model.
- Decorative options: Compatible fabrics, silk, paper, dried leaves and dried flowers, subject to material and process trials.

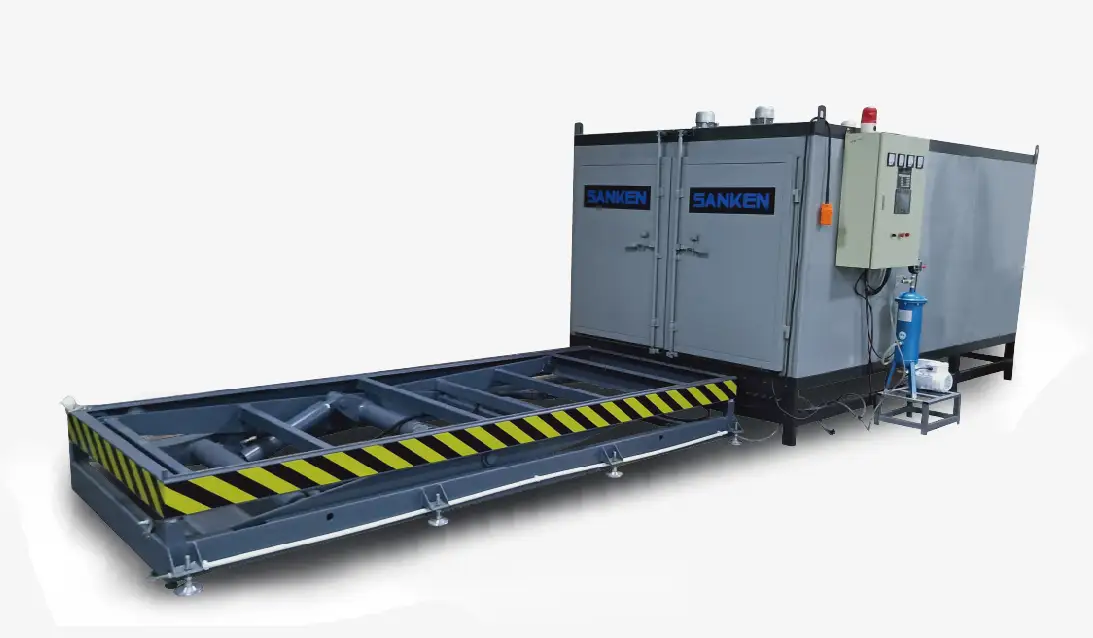

EVA Glass Vacuum Laminating Machine
SANKEN SKL series combines vacuum and heating to laminate glass with EVA interlayer film. The equipment is used for transparent, coloured and decorative laminated glass, with model choices covering different glass formats, silicone bag quantities and loading arrangements.
Six models cover maximum processing sizes of 3200 × 1700 mm, 4000 × 2000 mm and 4000 × 2500 mm. Choose manual push-pull handling, a hydraulic lifter, or a hydraulic lifter with PLC touch-screen control according to the selected model.
Equipment and Decorative Glass Views
Main Features
Vacuum and Heating Process
The machine combines vacuum treatment with heating for EVA glass lamination. Configure the processing cycle for the selected EVA film, glass build-up and decorative materials.
Silicone Bag Processing
SKL-32172 has two silicone bag sets; the other five models have five sets. Select the configuration around glass dimensions, the intended loading arrangement and the required production schedule.
Manual Push-Pull Handling
SKL-32172 and SKL-32175 use a manual push-pull arrangement. Include the tray movement and operator working space when planning the installation.
Hydraulic Lifting Configurations
SKL-32175A, SKL-32175PLC, SKL-40205PLC and SKL-40255PLC include a hydraulic lifter for tray handling.
PLC Touch-Screen Models
SKL-32175PLC, SKL-40205PLC and SKL-40255PLC combine the hydraulic lifter with PLC touch-screen control. Select these models when that control configuration is required.
Decorative Interlayer Options
EVA lamination can incorporate compatible decorative inserts such as fabric, silk, paper, dried leaves and dried flowers between glass layers. Test the proposed glass, film and insert combination to establish the required appearance and processing conditions.
Technical Specifications
| Parameter | SKL-32172 | SKL-32175 | SKL-32175A |
|---|---|---|---|
| Max. Processing Size | 3200 × 1700 mm | 3200 × 1700 mm | 3200 × 1700 mm |
| Silicone Bag Quantity | 2 sets | 5 sets | 5 sets |
| Total Power | 42 kW | 48 kW | 48 kW |
| Machine Dimensions (L × W × H) | 3800 × 2210 × 1250 mm | 4100 × 2200 × 2250 mm | 4100 × 2200 × 2250 mm |
| Machine Weight | 1700 kg | 2900 kg | 3000 kg |
| Occupied Area (L × W) | 12000 × 2500 mm | 12000 × 2500 mm | 7700 × 2500 mm |
| Handling and Control Configuration | Manual push-pull type | Manual push-pull type | Hydraulic lifter |
| Parameter | SKL-32175PLC | SKL-40205PLC | SKL-40255PLC |
|---|---|---|---|
| Max. Processing Size | 3200 × 1700 mm | 4000 × 2000 mm | 4000 × 2500 mm |
| Silicone Bag Quantity | 5 sets | 5 sets | 5 sets |
| Total Power | 48 kW | 56 kW | 60 kW |
| Machine Dimensions (L × W × H) | 4100 × 2200 × 2250 mm | 4900 × 2500 × 2250 mm | 4900 × 3000 × 2250 mm |
| Machine Weight | 3000 kg | 3450 kg | 3800 kg |
| Occupied Area (L × W) | 7700 × 2500 mm | 9100 × 2800 mm | 9100 × 3300 mm |
| Handling and Control Configuration | Hydraulic lifter and PLC touch screen | Hydraulic lifter and PLC touch screen | Hydraulic lifter and PLC touch screen |
Silicone bag quantity describes the number of bag sets supplied with the model. It does not specify the number of glass layers in a laminate or the number of finished panels produced per cycle.
Machine dimensions and occupied area are separate figures. The occupied area allows for the equipment arrangement and handling space; coordinate the installation with the actual tray movement and factory layout.
Model and Configuration Selection
3200 × 1700 mm Processing Format
SKL-32172, SKL-32175, SKL-32175A and SKL-32175PLC share the same maximum glass format. The differences are bag quantity, handling configuration, controls, power and occupied area.
4000 × 2000 mm Processing Format
SKL-40205PLC provides five silicone bag sets, a hydraulic lifter and PLC touch-screen control. Total power is 56 kW, with an occupied area of 9100 × 2800 mm.
4000 × 2500 mm Processing Format
SKL-40255PLC provides five silicone bag sets, a hydraulic lifter and PLC touch-screen control. Total power is 60 kW, with an occupied area of 9100 × 3300 mm.
Choose the maximum format first, then review the glass build-up, film, decorative inserts, bag arrangement and loading method. Match the configuration to your workshop and material handling requirements.
EVA Laminating Workflow
1. Prepare the Glass and Interlayer
Prepare clean glass panes, EVA film and any decorative inserts required for the laminate. Check the compatibility and condition of the materials before assembly.
2. Assemble the Laminate
Position the EVA film and selected inserts between the glass panes according to the required design and glass build-up.
3. Load the Silicone Bag Arrangement
Place the assembled glass in the selected bag and tray arrangement. Use the manual push-pull or hydraulic lifting system supplied with the model.
4. Process with Vacuum and Heating
Run the processing cycle established for the selected film, glass structure and insert materials. Confirm the settings with the film supplier’s requirements and the equipment configuration.
5. Cool and Inspect
Complete cooling and handling according to the established process. Inspect the finished laminate for appearance, edge condition and the requirements of the intended application.
Transparent and Decorative Laminated Glass
Transparent and Coloured Glass
The equipment can be used for transparent or coloured EVA laminated glass. Select the glass and film combination for the required visual effect.
Fabric and Decorative Inserts
Compatible fabrics, silk, paper and dried decorative materials can be incorporated between glass layers. Review insert thickness, moisture condition and compatibility through sample production.
Interior Design Applications
Decorative laminates can be specified for partitions, screens and other interior glazing in homes, restaurants, hotels and retail spaces. Select the finished glass structure and performance requirements for each project.
Workshop Space and Production Planning
Plan space for glass preparation, EVA film handling, laminate assembly, the machine, tray movement and finished-glass handling. Keep film storage and assembly conditions appropriate for the selected materials.
The manual push-pull models have an occupied area of 12000 × 2500 mm. The 3200 × 1700 mm hydraulic-lifter models have an occupied area of 7700 × 2500 mm. Larger PLC models require 9100 × 2800 mm or 9100 × 3300 mm, depending on the glass format.
Machine power ranges from 42 kW to 60 kW. Coordinate the electrical supply, installation access and maintenance clearances with the selected model and factory arrangement.
Frequently Asked Questions
Which models are included in the SKL series?
The range includes SKL-32172, SKL-32175, SKL-32175A, SKL-32175PLC, SKL-40205PLC and SKL-40255PLC.
What are the maximum processing sizes?
The available maximum formats are 3200 × 1700 mm, 4000 × 2000 mm and 4000 × 2500 mm, depending on the model.
Do all models include PLC touch-screen control?
The three PLC models are SKL-32175PLC, SKL-40205PLC and SKL-40255PLC. Select the model according to the handling and control configuration shown in the specification tables.
How many silicone bags are supplied?
SKL-32172 has two sets. SKL-32175, SKL-32175A, SKL-32175PLC, SKL-40205PLC and SKL-40255PLC each have five sets.
Can decorative materials be laminated between the glass?
Compatible materials such as fabric, silk, paper, dried leaves and dried flowers can be incorporated with EVA film. Confirm the material combination and process through sample production.
How many glass layers can be laminated?
The glass build-up depends on the selected film, materials and processing arrangement. Send the required layer structure and thicknesses for configuration review; silicone bag quantity does not define the laminate layer count.
What temperature and cycle time should I use?
Processing conditions depend on the EVA film, glass build-up and any inserts. Share the film specifications and laminate requirements so the process can be established for the selected equipment.
What information is needed for a quotation?
Send the maximum glass size, glass layer structure, EVA film specifications, decorative insert details, required output, preferred handling method and workshop dimensions.
