Automatic Glass Film Applicator – SKFS Series
The SANKEN SKFS series applies film to glass for surface protection and subsequent processing. PLC and touch-screen control coordinate glass positioning, heating, film application and cutting. Rubber conveying rollers transfer panels through the machine, with model choices covering different glass sizes.
- Models: SKFS-1300A, SKFS-1600A, SKFS-1800A and SKFS-2000A.
- Maximum glass sizes: 1250 × 2500 mm, 1500 × 2500 mm, 1750 × 3000 mm and 1950 × 3200 mm.
- Glass thickness: 2–19 mm.
- Processing speed: 1–8 m/min.
- Application modes: Single-sided or double-sided.
- Automatic functions: Glass positioning, heating, film application and film cutting.
- Control system: PLC and touch screen.
- Film applications: Finished-glass protection, sandblasting masking and suitable glass screen-printing process films.

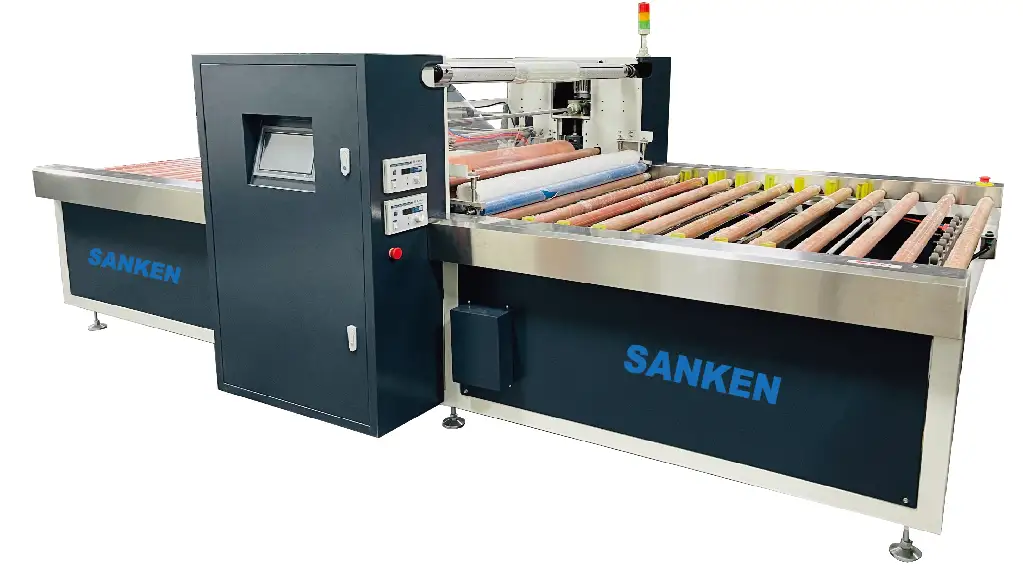

Automatic Glass Film Applicator
SANKEN SKFS series applies protective and process films to glass using PLC and touch-screen control. The machine supports single-sided or double-sided application, with automatic glass positioning, heating, film application and film cutting.
Four models cover maximum glass sizes from 1250 × 2500 mm to 1950 × 3200 mm. All four process glass 2–19 mm thick at speeds of 1–8 m/min, allowing model selection around the glass format and film requirements.
Main Features
PLC and Touch-Screen Control
The PLC system coordinates positioning, heating, film application and film cutting. Operators use the touch-screen interface to control the application process.
Single-Sided and Double-Sided Application
Select single-sided or double-sided film application according to the glass protection or downstream processing requirement. Confirm the required film arrangement when specifying the machine.
Automatic Glass Positioning
The machine positions the glass before film application, coordinating the panel with the conveying and application stages.
Automatic Heating and Film Application
Heating and film application are automatically controlled as part of the processing sequence. Match the operating settings to the selected film and glass surface.
Automatic Film Cutting
The machine cuts the film as part of the application cycle, coordinating film handling with glass transport.
Rubber Roller Conveying
Rubber conveying rollers support glass movement through the machine. The rollers have heat- and corrosion-resistant characteristics for the application environment.
Technical Specifications
| Parameter | SKFS-1300A | SKFS-1600A |
|---|---|---|
| Max. Glass Size | 1250 × 2500 mm | 1500 × 2500 mm |
| Min. Glass Size | 250 × 400 mm | 250 × 400 mm |
| Glass Thickness | 2–19 mm | 2–19 mm |
| Processing Speed | 1–8 m/min | 1–8 m/min |
| Total Power | 3.85 kW | 4.35 kW |
| Machine Dimensions (L × W × H) | 3800 × 2230 × 1450 mm | 3800 × 2530 × 1450 mm |
| Machine Weight | 1520 kg | 1630 kg |
| Parameter | SKFS-1800A | SKFS-2000A |
|---|---|---|
| Max. Glass Size | 1750 × 3000 mm | 1950 × 3200 mm |
| Min. Glass Size | 350 × 450 mm | 350 × 500 mm |
| Glass Thickness | 2–19 mm | 2–19 mm |
| Processing Speed | 1–8 m/min | 1–8 m/min |
| Total Power | 5.10 kW | 5.50 kW |
| Machine Dimensions (L × W × H) | 4400 × 2750 × 1550 mm | 4800 × 2950 × 1650 mm |
| Machine Weight | 1920 kg | 2150 kg |
Processing speed is glass transport speed through the applicator. Finished-panel output depends on panel size, spacing, film setup and the application process.
Select the model using the maximum and minimum glass dimensions required for production.
Film Applications
Protective Film for Finished Glass
Apply a suitable protective film to cover the surface of finished glass during handling, storage or subsequent operations. Select the film for the glass surface and the intended removal conditions.
Masking Film for Glass Sandblasting
Apply compatible masking film for the subsequent pattern preparation and sandblasting workflow. Coordinate the film properties with the intended pattern-making and blasting process.
Film for Glass Screen-Printing Workflows
The applicator can apply suitable process film used in glass screen-printing operations. Send the film specification and intended application stage to confirm the required configuration.
Application Workflow
1. Select the Film and Glass Format
Confirm film type, roll dimensions, the glass size range and whether single-sided or double-sided application is required.
2. Prepare and Feed the Glass
Prepare the glass surface for the selected film and feed the panel into the conveying section.
3. Position, Heat and Apply
The machine coordinates automatic positioning, heating and film application according to the selected operating settings.
4. Cut the Film
Automatic film cutting completes the application sequence for the panel.
5. Inspect and Transfer
Inspect film coverage and adhesion for the intended operation, then transfer the panel to handling, storage or the next process.
Model Selection
SKFS-1300A
Handles glass from 250 × 400 mm to 1250 × 2500 mm. Total power is 3.85 kW, with machine dimensions of 3800 × 2230 × 1450 mm.
SKFS-1600A
Handles glass from 250 × 400 mm to 1500 × 2500 mm. Total power is 4.35 kW, with machine dimensions of 3800 × 2530 × 1450 mm.
SKFS-1800A
Handles glass from 350 × 450 mm to 1750 × 3000 mm. Total power is 5.10 kW, with machine dimensions of 4400 × 2750 × 1550 mm.
SKFS-2000A
Handles glass from 350 × 500 mm to 1950 × 3200 mm. Total power is 5.50 kW, with machine dimensions of 4800 × 2950 × 1650 mm.
All four models share a 2–19 mm glass thickness range and a 1–8 m/min processing speed range. Match the glass dimensions, film and sidedness requirements to the selected configuration.
Workshop Layout and Installation
Plan the applicator between glass preparation and the required downstream operation. Leave space for incoming and outgoing panels, film roll replacement and routine servicing.
Coordinate the machine working direction and transfer arrangement with nearby handling equipment. Use the machine dimensions in the parameter table to plan placement and provide additional working clearance.
Confirm the electrical supply for the selected 3.85–5.50 kW model and the film storage and operating conditions needed for the chosen material.
Frequently Asked Questions
Which models are included?
The range includes SKFS-1300A, SKFS-1600A, SKFS-1800A and SKFS-2000A.
Can it apply film to one or both sides of the glass?
The machine supports single-sided or double-sided application. Specify the required film arrangement when selecting the configuration.
Which operations are automatic?
Glass positioning, heating, film application and film cutting are coordinated automatically under PLC and touch-screen control.
What films can be applied?
Applications include suitable finished-glass protective films, sandblasting masking films and process films for glass screen-printing workflows. Confirm the specific film with SANKEN before equipment selection.
What thickness can the machine process?
All four models handle glass 2–19 mm thick.
What is the processing speed?
The speed range is 1–8 m/min. Actual panel output depends on glass size, spacing, film setup and operating conditions.
What is the largest glass size?
SKFS-2000A handles up to 1950 × 3200 mm. The other models cover 1250 × 2500 mm, 1500 × 2500 mm and 1750 × 3000 mm respectively.
What information is needed for a quotation?
Send maximum and minimum glass sizes, thickness range, film specifications and roll dimensions, single- or double-sided requirements, target output and available workshop space.
Plan Your Glass Film Application Equipment
SANKEN has been exporting glass-processing machinery since 2002. Send us your glass and film specifications to discuss the SKFS model and application arrangement.
