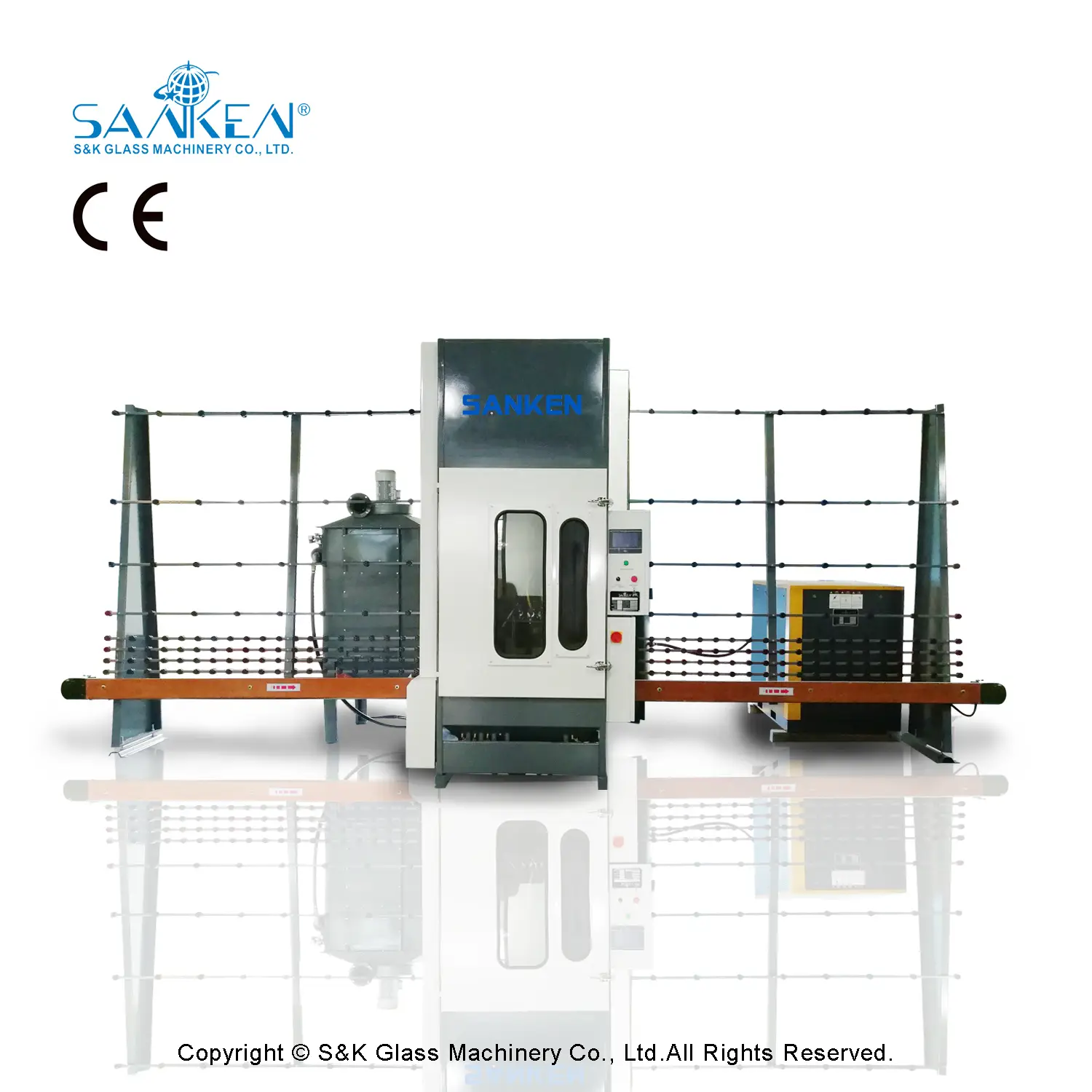

Vertical Glass Sandblasting Machine – SKS Series
-
The SANKEN SKS series combines vertical glass transport with PLC-controlled sandblasting for frosted surfaces and stencil-based decorative work. Choose from SKS-1600, SKS-2000 and SKS-2500 to match your glass processing size.
- Maximum glass sizes from 1600 × 3000 to 2500 × 3000 mm.
- Touch-screen control with automatic and manual processing modes.
- Three automatic spraying guns and one manual gun.
- Automatic dust collection with reverse-air filter cleaning.
- Working air pressure: 0.6–0.8 MPa.
- Air consumption: 3 m³/min.
Vertical Glass Sandblasting
The SANKEN SKS series produces frosted surfaces on flat glass using abrasive blasting. Vertical glass transport and a PLC-controlled spraying system support automatic processing, while a manual gun provides an additional operating option.
Choose SKS-1600, SKS-2000 or SKS-2500 to match your maximum glass size. All three models combine three automatic guns, one manual gun and a dust collection system.
Key Features
PLC and Touch-Screen Control
Operators select automatic or manual processing through the touch-screen interface. The PLC coordinates machine operation for the selected processing mode.
Three Automatic Guns and One Manual Gun
Three automatic spraying guns support automatic surface processing. A separate manual gun provides flexibility for work requiring manual control.
Vertical Glass Transport
Timing belts drive glass transmission and the vertical movement of the spraying assembly. Glass transfer speed is 3–6 m/min, with a nozzle moving speed of 8 m/min.
Dust Collection and Filter Cleaning
The enclosed blasting area works with an automatic dust collection system to capture airborne dust. Reverse-air cleaning clears the dust collector filters as part of the collection system.
Wear-Resistant Nozzles
The spraying nozzles use wear-resistant materials. Routine inspection of nozzles, belts and filters helps maintain the selected processing conditions.
Working Sequence
For patterned work, prepare and apply a suitable blasting stencil before loading. After blasting, remove the mask and clean the glass for inspection.
Technical Specifications
| Parameter | SKS-1600 | SKS-2000 | SKS-2500 |
|---|---|---|---|
| Max. Processing Size | 1600 × 3000 mm | 2000 × 3000 mm | 2500 × 3000 mm |
| Min. Processing Size | 200 × 500 mm | 200 × 500 mm | 200 × 500 mm |
| Glass Transfer Speed | 3–6 m/min | 3–6 m/min | 3–6 m/min |
| Nozzle Moving Speed | 8 m/min | 8 m/min | 8 m/min |
| Sandblasting Capacity | 20 m²/h | 20 m²/h | 20 m²/h |
| Working Air Pressure | 0.6–0.8 MPa | 0.6–0.8 MPa | 0.6–0.8 MPa |
| Air Consumption | 3 m³/min | 3 m³/min | 3 m³/min |
| Total Machine Power | 3.5 kW | 3.5 kW | 3.5 kW |
| Machine Dimensions | 4700 × 1500 × 2300 mm | 6800 × 1500 × 2800 mm | 6800 × 1500 × 3300 mm |
| Machine Weight | 1000 kg | 1100 kg | 1200 kg |
Frosted and Decorative Glass
Use the SKS series for frosted privacy glass and decorative panels, including partitions, shower enclosures, doors and furniture glass.
For logos, lettering and decorative patterns, a separate plotter can cut a suitable masking film. The stencil defines which areas of the glass are exposed to the abrasive; the sandblasting machine processes those exposed areas.
Equipment Views
Factory Layout and Utilities
Plan space for the machine, vertical glass loading and unloading, dust collector access and routine maintenance. Match the compressed-air supply to the working pressure of 0.6–0.8 MPa and air consumption of 3 m³/min.
The machine power is 3.5 kW. An external compressed-air supply is required; include the compressor and air-treatment equipment when planning factory utilities.
We plan the equipment arrangement around your selected model, glass flow and available workshop space.
Vertical Glass Sandblasting Machine Layout Reference
Frequently Asked Questions
Which models are included in the SKS series?
The series includes SKS-1600, SKS-2000 and SKS-2500, with maximum processing sizes of 1600 × 3000 mm, 2000 × 3000 mm and 2500 × 3000 mm respectively.
Can I choose automatic or manual operation?
Yes. The machine provides automatic and manual processing modes, with three automatic guns and one manual gun.
Can the machine produce logos and lettering?
Yes, with a suitable stencil applied to the glass. A separate plotter prepares the mask; blasting creates the finish on the exposed glass surface.
Does it need an air compressor?
Yes. Provide an external compressed-air supply at 0.6–0.8 MPa with an air consumption of 3 m³/min.
How does the dust collection system work?
The dust collector extracts dust from the blasting area. Reverse-air cleaning helps clear the collector filters. Keep filters and seals maintained as part of routine operation.
What information should I send for a quotation?
Send your maximum and minimum glass dimensions, thickness range, required surface finish, production requirements, available power supply and factory layout.
