Vertical Glass Stencil Plotter – SKDC-V Series
-

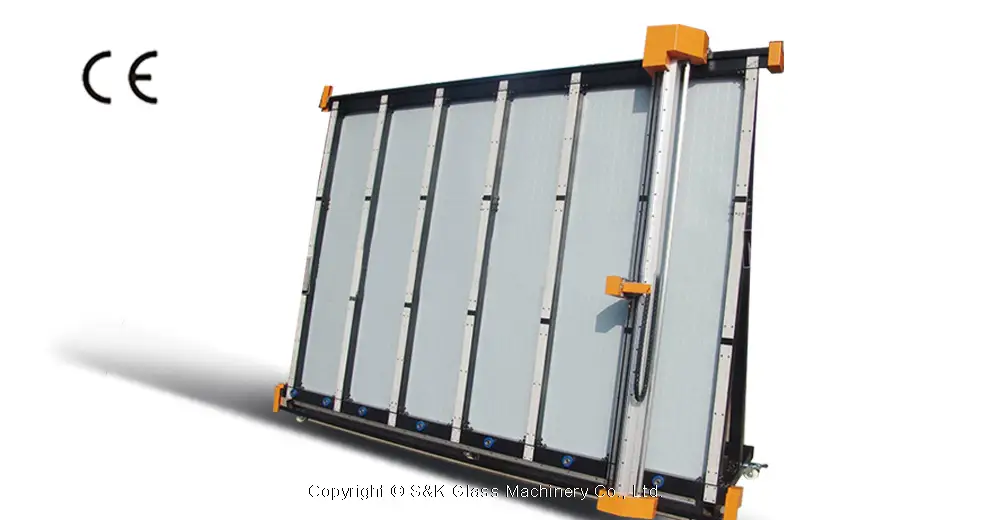

The SANKEN SKDC-V series prepares sandblasting stencils by drawing and knife-cutting masking film on glass. Computer-controlled pattern preparation and a vertical support frame help organize decorative glass production from design to blasting.
- Three models: SKDC-1824V, SKDC-2030V and SKDC-2436V.
- Processing areas: 1830 × 2440, 2000 × 3000 and 3600 × 2400 mm.
- Maximum cutting speed: 20 m/min.
- Mechanical precision and repeatability: 0.1 mm.
- Drawing and film cutting for lettering, logos and decorative patterns.
- Stencil preparation before processing in a separate sandblasting machine.
Vertical Plotting for Glass Sandblasting Stencils
The SANKEN SKDC-V series draws and knife-cuts patterns in masking film applied to glass. Designs are transferred from a computer to prepare lettering, logos and decorative graphics for the next sandblasting stage.
Choose from SKDC-1824V, SKDC-2030V and SKDC-2436V to match your panel dimensions. The vertical frame supports the glass during stencil preparation.
Key Features
Computer-Controlled Pattern Preparation
Transfer your prepared graphics from the computer to the plotter for drawing and knife cutting on the applied film. The cut outlines define which parts of the mask will be removed before blasting.
Drawing and Film Cutting
The plotter prepares the mask directly on the glass panel. After cutting, remove the film from the areas to be sandblasted and retain the mask over the areas to be protected.
Mechanical Precision and Repeatability
All three models have a mechanical precision of 0.1 mm and repeatability of 0.1 mm, with a maximum cutting speed of 20 m/min.
Vertical Glass Support
The vertical frame holds the panel upright during processing. Model selection depends on the required processing area and space for glass loading and unloading.
Three Processing Sizes
The processing areas are 1830 × 2440 mm, 2000 × 3000 mm and 3600 × 2400 mm. Select the model around your largest panel and pattern arrangement.
From Design to Sandblasted Glass
The plotter prepares the stencil. A separate sandblasting machine creates the frosted finish on the exposed glass surface. After blasting, remove the remaining mask and clean the panel.
Technical Specifications
| Parameter | SKDC-1824V | SKDC-2030V | SKDC-2436V |
|---|---|---|---|
| Max. Processing Size | 1830 × 2440 mm | 2000 × 3000 mm | 3600 × 2400 mm |
| Max. Cutting Speed | 20 m/min | 20 m/min | 20 m/min |
| Max. Material Thickness | 40 mm | 40 mm | 40 mm |
| Mechanical Precision | 0.1 mm | 0.1 mm | 0.1 mm |
| Repeatability | 0.1 mm | 0.1 mm | 0.1 mm |
| Total Power / Voltage | 1 kW, 220 V / 60 Hz | 1 kW, 220 V / 60 Hz | 1 kW, 220 V / 60 Hz |
| Machine Dimensions | 2800 × 2400 × 1000 mm | 3400 × 1000 × 2400 mm | 4000 × 1000 × 2800 mm |
| Machine Weight | 320 kg | 340 kg | 400 kg |
Decorative Glass Applications
Prepare sandblasting stencils for decorative lettering, company logos, geometric patterns, floral designs and privacy graphics on flat glass. Typical products include partitions, doors, shower enclosures and decorative interior panels.
Equipment and Application Views
Working with a Glass Sandblasting Machine
Use the SKDC-V plotter as a separate stencil preparation station before sandblasting. Select the glass size and masking film around the design and the following blasting process.
Model Selection and Installation
Send us your maximum glass dimensions, panel thickness, masking film details and sample artwork. Include the smallest lettering or pattern features and your production requirements so we can review the model and processing setup.
Allow space for panel handling, computer operation and maintenance. Confirm the required electrical supply against the 220 V / 60 Hz specification before installation.
Frequently Asked Questions
What does the plotter cut?
It knife-cuts the masking film applied to the glass surface to prepare a sandblasting stencil. Glass sizing and separation are separate operations.
Can it prepare logos and lettering?
Yes. Computer-prepared designs can be used to draw and cut logos, lettering and decorative patterns in the mask.
Does the machine apply the film automatically?
Apply the masking film to the glass before plotting. The machine then draws and cuts the pattern in the film.
Which design file formats can I use?
Send a sample design file when requesting a quotation so we can confirm compatibility with the supplied control software.
Can it be used with a sandblasting machine?
Yes. After plotting and removing the selected film areas, transfer the panel to a separate glass sandblasting machine.
How should I select the masking film?
Share the film material, thickness and required blasting finish with us. We can review the film and cutting setup for your application.
