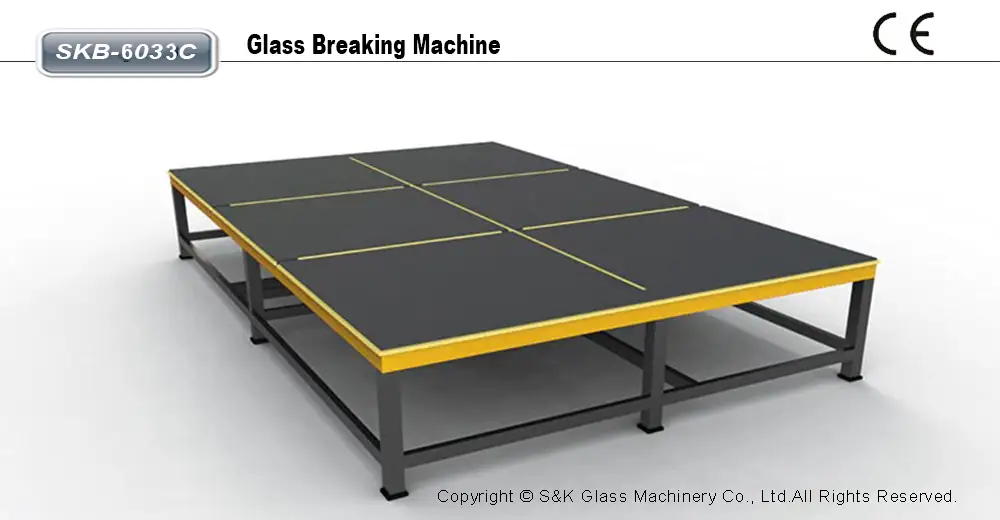

SANKEN Glass Breaking Table SKB-6033C

Professional Glass Breaking Table (SKB-6033C)

As the final crucial step in the automatic glass cutting production line, the SANKEN SKB-6033C Glass Breaking Table is engineered for efficiency, stability, and operator safety. It is designed to handle jumbo-sized glass sheets, perfectly matching our high-speed CNC cutting machines.

• Jumbo Size Capacity: Boasting a massive working area, it can easily accommodate and process extra-large glass sheets up to 6100 x 3300 mm, meeting the demands of architectural glass processing.

• Pneumatic Breaking System: Equipped with reliable pneumatic breaking bars that provide powerful and even force, allowing operators to easily and cleanly separate the glass along the scored lines.

• Air-Cushion Surface: The table features an advanced air-flotation system, creating an air cushion that allows heavy glass sheets to glide effortlessly across the surface, preventing scratches and reducing manual labor.

• Heavy-Duty Construction: Built with a reinforced steel frame to ensure absolute stability during the breaking process, with a high load-bearing capacity and a long service life.

• Seamless Integration: Designed to work perfectly in tandem with the SANKEN Automatic Glass Loading Machine and CNC Glass Cutting Machine to form a highly efficient "Load-Cut-Break" production line.

Technical Specifications:

• Model: SKB-6033C

• Max. Processing Size: 6100 x 3300 mm

• Processing Thickness: 3 ~ 19 mm

• Total Power: 8.0 KW

• Machine Size: 6100 x 3300 x 900 mm

• Machine Weight: 1800 KG
