Automatic Glass Loading Machine

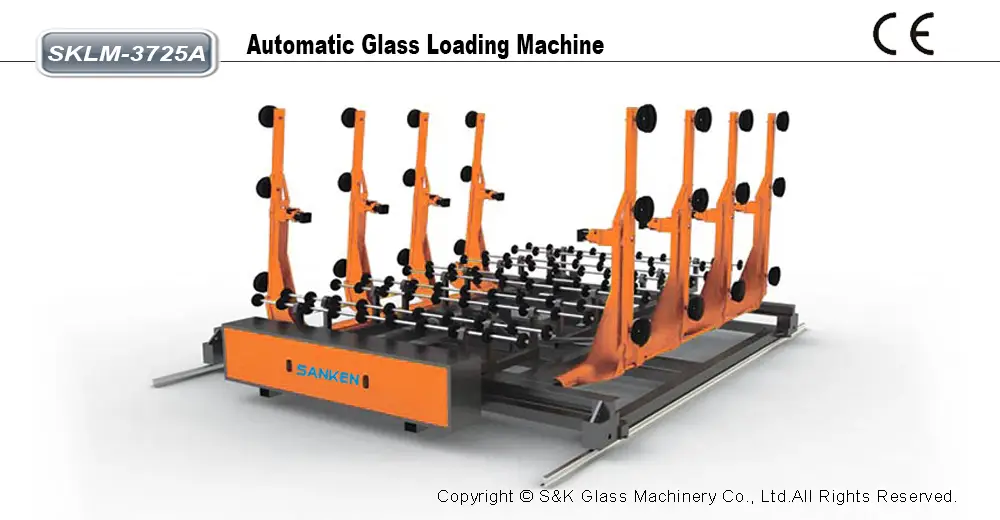

High-Efficiency Automatic Glass Loading Machine (SKLM-3725A)

As the crucial first step of an automated glass cutting line, the SANKEN SKLM-3725A Automatic Glass Loading Machine is engineered to handle heavy glass sheets with absolute precision and safety. It is designed to perfectly match with CNC glass cutting machines and breaking tables, providing a seamless, turnkey glass processing solution.

• Heavy-Duty Performance: Robust mechanical structure capable of safely lifting and loading glass sheets up to 600 Kgs, handling maximum glass dimensions of 4200 x 2800 mm.

• High Safety & Precision: Utilizes an advanced vacuum suction system (Max. Suction Depth: 650 mm) to ensure zero damage to the glass surface during the lifting and transferring process.

• Automated Workflow: Greatly reduces the reliance on manual labor, minimizing human error and workplace injury risks while dramatically increasing factory output.

• Seamless Integration: Acts as the perfect feeding station for the SKCL-3725A CNC Automatic Glass Cutting Production Line, ensuring continuous and smooth glass transmission.

Technical Specifications:

• Model: SKLM-3725A

• Max. Loading Size: 4200 x 2800 mm

• Min. Loading Size: 1500 x 1200 mm

• Processing Thickness: 3 ~ 19 mm

• Max. Loading Capacity: 600 Kgs

• Max. Suction Depth: 650 mm

• Air Pressure: 0.6 ~ 0.8 MPa

• Total Power: 8 KW

• Machine Size: 4600 x 2800 x 900 mm

• Machine Weight: 3000 KG
