SANKEN Glass Straight Line Double Round Edging Machine
SANKEN SKDR Series Glass Straight Line Double Round Edging Machine is designed for grinding and polishing straight-line glass with 10G, 20G, 30G, pencil round and flat edge profiles.
Different grinding and polishing wheels can be installed according to glass thickness and required edge profile. The series includes five models with maximum processing widths from 1000 mm to 2500 mm, glass thickness from 3–12 mm, and either 12-spindle or 16-spindle configurations.
Glass Straight Line Double Round Edging Machine
The SANKEN SKDR Series Glass Straight Line Double Round Edging Machine is designed for grinding and polishing straight-line glass with 10G, 20G, 30G, pencil round and flat edge profiles.
Different grinding and polishing wheels can be installed according to the glass thickness and required edge profile. Grinding and polishing are completed within the machine during the continuous edging process.
Five SKDR configurations are available, with maximum processing widths from 1000 mm to 2500 mm and processing thickness from 3 to 12 mm. Depending on the model, the machine is equipped with 12 or 16 spindles arranged in two groups.

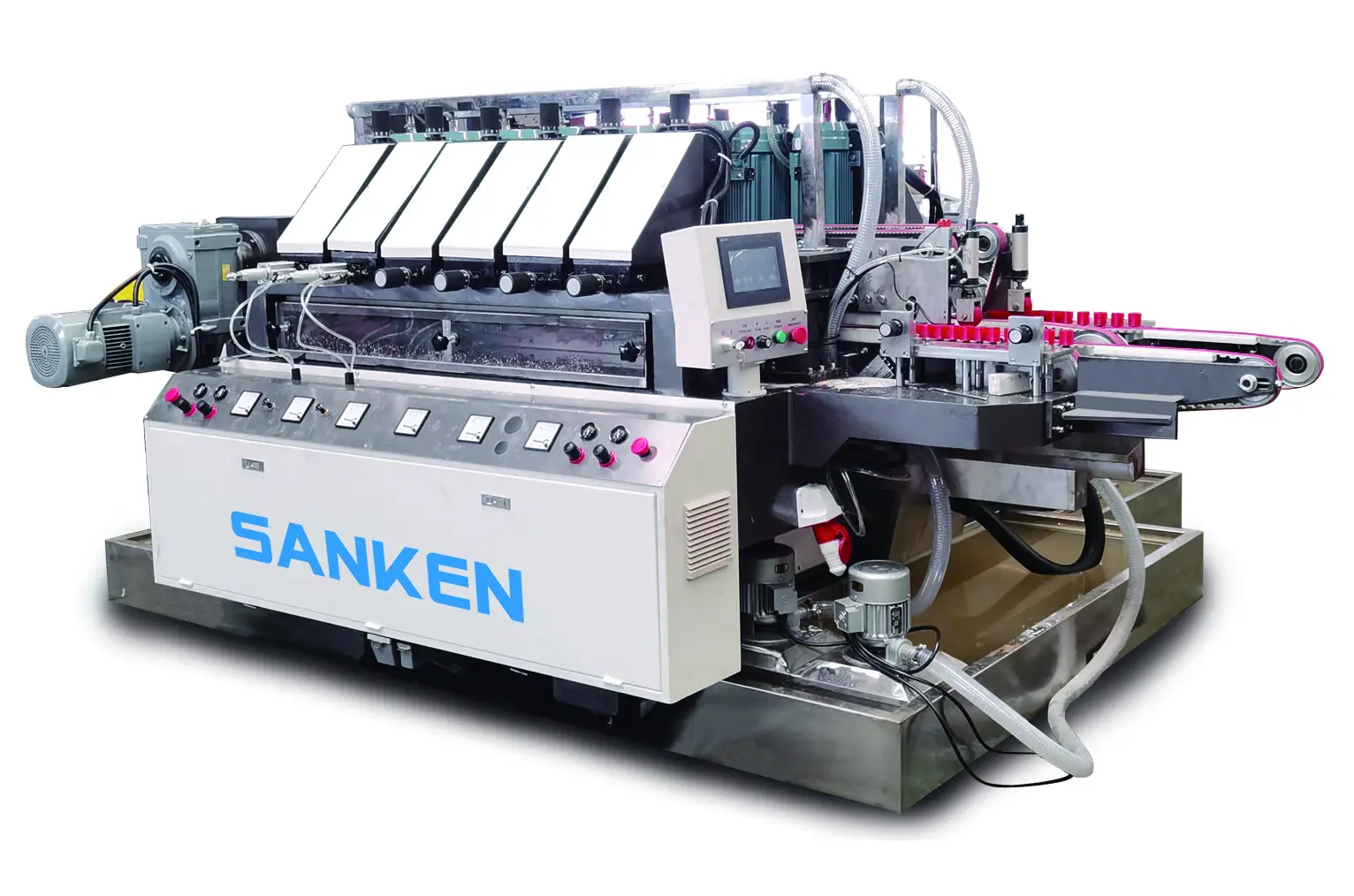

SANKEN SKDR Series Glass Straight Line Double Round Edging Machine
Supported Edge Profiles
According to the SANKEN catalogue, the SKDR Series can be configured for the following straight-line glass edge profiles:
10G Edge
20G Edge
30G Edge
Pencil Round Edge
Flat Edge
The wheel configuration can be selected according to the required edge profile and glass thickness.
Grinding and Polishing Wheel Configuration
The catalogue shows different wheel types for different edge-processing requirements.
Diamond Wheel
Diamond wheels can be configured for PC, FE, FA and OG edge processing.
BK Polishing Wheel
The catalogue lists BK46 / BK60 / BK80 / BK120 polishing wheels with T10 / T15 / T20 / T25 / T30 configurations.
BD Polishing Wheel
BD polishing wheels are also shown with T10 / T15 / T20 / T25 / T30 configurations.
Spindle Configuration
The SKDR Series uses two groups of grinding and polishing spindles. Depending on the model, each group is equipped with either six or eight spindles.
12-Spindle Models
SKDR-1012A and SKDR-1512A use 12 spindles in total, arranged as 6 spindles on each side.
16-Spindle Models
SKDR-1516A, SKDR-2016A and SKDR-2516A use 16 spindles in total, arranged as 8 spindles on each side.
Machine Details
Machine structure and processing details of the SANKEN Glass Straight Line Double Round Edging Machine.
Technical Specifications
| Model | Max. Processing Width | Min. Processing Size | Thickness | Power | Voltage | Machine Size | Weight | Spindles |
|---|---|---|---|---|---|---|---|---|
| SKDR-1012A | 1000 mm | 250 mm | 3–12 mm | 26.4 kW | 380 V / 50 Hz | 2700 × 2800 × 1500 mm | 2900 kg | 12 (6 per side) |
| SKDR-1512A | 1500 mm | 250 mm | 3–12 mm | 26.4 kW | 380 V / 50 Hz | 2700 × 3300 × 1500 mm | 3400 kg | 12 (6 per side) |
| SKDR-1516A | 1500 mm | 250 mm | 3–12 mm | 35.2 kW | 380 V / 50 Hz | 3100 × 3300 × 1500 mm | 3600 kg | 16 (8 per side) |
| SKDR-2016A | 2000 mm | 250 mm | 3–12 mm | 35.2 kW | 380 V / 50 Hz | 3100 × 3800 × 1500 mm | 4000 kg | 16 (8 per side) |
| SKDR-2516A | 2500 mm | 250 mm | 3–12 mm | 35.2 kW | 380 V / 50 Hz | 3100 × 4300 × 1500 mm | 4600 kg | 16 (8 per side) |
Specifications above are based on the SANKEN product catalogue. Final wheel configuration should be confirmed according to the selected edge profile and glass thickness.
Choosing the Right SKDR Model
SKDR-1012A
Maximum processing width of 1000 mm with 12 spindles, arranged as 6 spindles per side.
SKDR-1512A
Maximum processing width of 1500 mm with a 12-spindle configuration.
SKDR-1516A
Also supports a maximum processing width of 1500 mm, but uses 16 spindles with 8 spindles per side.
SKDR-2016A
Extends the maximum processing width to 2000 mm with a 16-spindle configuration.
SKDR-2516A
The largest model listed in the series, with a maximum processing width of 2500 mm and 16 spindles.
Double Round Edging Machine vs. Double Round Edging Line
The SKDR-A Series covered on this page is the standalone Glass Straight Line Double Round Edging Machine.
For connected online processing, SANKEN also offers the SKDR-AL Glass Straight Line Double Round Edging Line, which consists of two round edging machines and one transit table.
SKDR-A Series: standalone double round edging machine.
SKDR-AL Series: two round edging machines + one transit table.
Applications
The SKDR Series is intended for straight-line glass requiring 10G, 20G, 30G, pencil round or flat edge grinding and polishing.
Model and wheel configuration should be selected according to the required processing width, glass thickness and edge profile.
Frequently Asked Questions
Which edge profiles can the SKDR Series process?
The catalogue lists 10G, 20G, 30G, pencil round and flat edge processing.
What glass thickness can the machine process?
All five SKDR models are specified for glass thicknesses from 3 to 12 mm.
What is the maximum processing width?
Depending on the selected model, maximum processing width ranges from 1000 mm to 2500 mm.
What is the difference between the 12- and 16-spindle versions?
The 12-spindle models use 6 spindles per side, while the 16-spindle models use 8 spindles per side. The models also differ in processing width, power, machine size and weight.
Can different grinding wheels be installed?
Yes. The catalogue states that various wheels can be fitted according to glass thickness and the required edge-processing profile.
How should I choose the correct SKDR model?
Selection should consider maximum processing width, glass thickness, required edge profile, spindle configuration and available factory space.
Equipment Selection
For SKDR machine selection, provide your maximum glass width, glass thickness range and required edge profile so that the appropriate model and wheel configuration can be reviewed.
