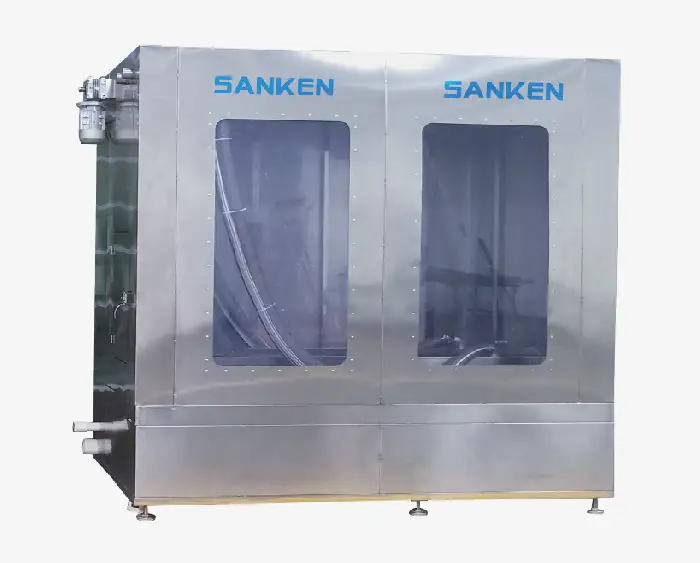

Automatic Screen Coating Machine – SKP-C Series
The SANKEN SKP-C series applies coating to screen mesh during stencil preparation. PLC and touch-screen control manage coating speed, thickness, side selection and repeated passes, while pneumatic clamps hold the frame during operation.
- Four models: SKP-0812C, SKP-1525C, SKP-2030C and SKP-2040C.
- Maximum coating areas from 800 × 1200 to 2000 × 4000 mm.
- Frame thickness: 20–50 mm.
- Single- or double-sided coating.
- Constant-pressure coating system.
- Automatic pass counting, stop and completion signal.
- Power: 0.75 kW; air pressure: 0.5–0.7 MPa.
Automatic Coating for Screen Preparation
The SANKEN SKP-C series applies coating to screen mesh during stencil preparation for glass screen printing. PLC and touch-screen control manage the coating operation, with settings for coating speed, thickness, single- or double-sided operation and repeated passes.
Four models provide maximum coating areas from 800 × 1200 mm to 2000 × 4000 mm. All support frame thicknesses of 20–50 mm.
Screen Preparation Equipment Views
Coating Control and Frame Handling
PLC and Touch-Screen Operation
Set the coating operation through the touch-screen interface. The PLC coordinates the selected coating cycle.
Adjustable Coating Settings
Set coating speed, thickness and the required number of passes to match the screen preparation process.
Single- or Double-Sided Coating
Select coating on one side or both sides of the screen according to the required stencil preparation method.
Constant-Pressure System
The constant-pressure system controls the coating operation to support the selected coating thickness.
Pneumatic Frame Clamping
Pneumatic controls clamp and release the screen frame during setup and unloading.
Automatic Pass Counting
The machine monitors the number of coating passes. At completion of the selected cycle, it stops and gives a signal.
Working Sequence
Prepare the mesh and coating material before loading. After coating, follow the coating supplier’s drying and exposure requirements for the next screen-making stages.
Technical Specifications
| Parameter | SKP-0812C | SKP-1525C | SKP-2030C | SKP-2040C |
|---|---|---|---|---|
| Max. Frame Size | 1100 × 1700 mm | 1900 × 3200 mm | 2500 × 3800 mm | 2500 × 4800 mm |
| Max. Coating Area | 800 × 1200 mm | 1500 × 2500 mm | 2000 × 3000 mm | 2000 × 4000 mm |
| Frame Thickness | 20–50 mm | 20–50 mm | 20–50 mm | 20–50 mm |
| Coating Passes | 1–10 | 1–10 | 1–10 | 1–10 |
| Air Supply Pressure | 0.5–0.7 MPa | 0.5–0.7 MPa | 0.5–0.7 MPa | 0.5–0.7 MPa |
| Total Power | 0.75 kW | 0.75 kW | 0.75 kW | 0.75 kW |
| Machine Dimensions | 2200 × 680 × 2700 mm | 2900 × 780 × 4200 mm | 3500 × 780 × 4800 mm | 3500 × 780 × 5800 mm |
| Machine Weight | 800 kg | 1200 kg | 1600 kg | 1800 kg |
Applications
The SKP-C series supports screen preparation for glass printing designs, lettering, borders and decorative patterns. Select the coating area around the screen frame, required image size and preparation materials.
Coating, Exposure and Developing
Coating prepares the mesh for later stencil exposure. Drying, exposure and developing are separate stages in the screen-making workflow.
The SKP-C coating machine and SKP-DA developing machine perform different operations. Specify the required equipment for each stage when planning the screen preparation area.
Model Selection and Workshop Planning
Send the outside dimensions of your frames, required coating area, frame thickness, mesh details, coating material and production requirements.
All four models have 0.75 kW total power and require a 0.5–0.7 MPa compressed-air supply. Check the equipment height and allow room for frame handling, coating material preparation, cleaning and maintenance.
Frequently Asked Questions
Which models are included?
SKP-0812C, SKP-1525C, SKP-2030C and SKP-2040C.
Can the machine coat both sides of the screen?
Yes. Single-sided and double-sided coating can be selected for the preparation process.
Which coating settings can be adjusted?
Coating speed, thickness, side selection and the number of repeated coating passes.
Does the machine stop after the selected passes?
Yes. It counts the coating passes, stops when the selected cycle is complete and gives a signal.
What frame thickness can it handle?
All four models support frame thicknesses of 20–50 mm.
Does the coating machine also develop the screen?
Developing is carried out in a separate stage after exposure. The SKP-C machine performs the coating operation.
How should I select the model?
Match both the maximum frame size and coating area to your screen requirements. Share the mesh and coating material details for a configuration review.
