Advanced Sanken Glass CNC Drilling and Edging Machine - Glass Drilling Machine and Glass Online Drilling Machine
5.0
Position:
0.5 mm
Spindle:
2 Groups
Control System:
Industrial Computer
Shipping Cost:
:
Contact the supplier about freight and estimated delivery time.
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Model NO.:
SKD-CNC-202A
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Drilling Speed
0-0.2 M/Min
Condition
New
Grinding Head Number
20
Glass Edging Machine Type
Glass Double Straight Edging Machine
Glass Washing Machine Type
Horizontal Glass Washing Machine
Structure
Horizontal
Certification
CE, ISO
Package Gross Weight
999.000kg
Package Size
999.00cm * 999.00cm * 999.00cm
Max Glass Width
2000 mm
Production Capacity
25 Sets/Year
HS Code
8464901900
Origin
China
Trademark
SANKEN
Specification
2000 mm
Transport Package
Exports Packing
Delivery
60 Days
After-Sales Service
1 Year
Type
Glass Drilling Machine
Warranty
1 Year
Product Description

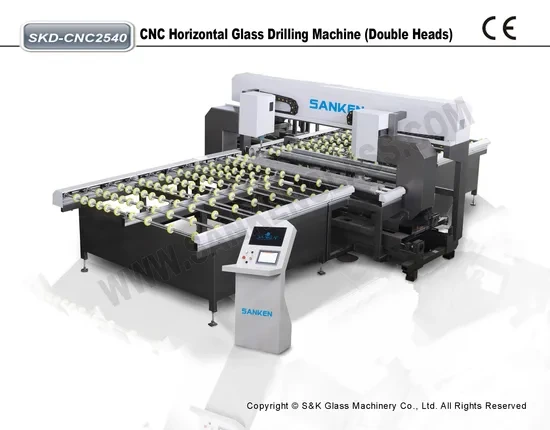

SANKEN Glass CNC Online Quenching Drilling Machine SKD-CNC-202A![Advanced Sanken Glass CNC Drilling and Edging Machine]()
![Advanced Sanken Glass CNC Drilling and Edging Machine]()
SANKEN GLASS CNC Online Quenching Drilling Machine consists of X/Y/Z axes SERVO and CNC controlled system, and it is a perfect driller for connecting with glass double edging production line and glass washing machine to build a fully-automatic edging and washing processing line, when the glass finish edging and comes out from the double edging line, it can drill the holes and clean the glass automatically. This CNC drilling machine can also share the signal to the glass loader and unloader, so that all the steps of processing from the glass loading, edging, drilling, washing to glass unloading can be achieved on-line automatically. The advantage for on-line processing: With high production efficiency, more safety operation to greatly avoids the casualties, greatly save the cost of production as it can reduce more than 10 workers labour cost per line.
![Advanced Sanken Glass CNC Drilling and Edging Machine]()
![Advanced Sanken Glass CNC Drilling and Edging Machine]()
![Advanced Sanken Glass CNC Drilling and Edging Machine]()
![Advanced Sanken Glass CNC Drilling and Edging Machine]()
![Advanced Sanken Glass CNC Drilling and Edging Machine]()
![Advanced Sanken Glass CNC Drilling and Edging Machine]()
![Advanced Sanken Glass CNC Drilling and Edging Machine]()
![Advanced Sanken Glass CNC Drilling and Edging Machine]()
![Advanced Sanken Glass CNC Drilling and Edging Machine]()
![Advanced Sanken Glass CNC Drilling and Edging Machine]()
| Model | Max. glass width | Min. size | Drilling Dia. | Power | Thickness | Weight | Machine size |
| SKD-CNC151A | 1500 mm | 300 x 800 mm | 4-50 mm | 20 KW | 4-19 mm | 3.0 Tons | 6500 x 3500 x 1800 mm |
| SKD-CNC152A | 1500 mm | 300 x 800 mm | 4-50 mm | 20 KW | 4-19 mm | 3.5 Tons | 6500 x 3500 x 1800 mm |
| SKD-CNC201A | 2000 mm | 300 x 800 mm | 4-50 mm | 20 KW | 4-19 mm | 3.3 Tons | 6500 x 4000 x 1800 mm |
| SKD-CNC202A | 2000 mm | 300 x 800 mm | 4-50 mm | 20 KW | 4-19 mm | 3.6 Tons | 6500 x 4000 x 1800 mm |
| SKD-CNC251A | 2500 mm | 300 x 800 mm | 4-50 mm | 20 KW | 4-19 mm | 3.8 Tons | 6500 x 4500 x 1800 mm |
| SKD-CNC252A | 2500 mm | 300 x 800 mm | 4-50 mm | 20 KW | 4-19 mm | 4.1 Tons | 6500 x 4500 x 1800 mm |
