Con más de 23 años de experiencia en servicio, un proveedor global de maquinaria profesional de procesamiento de vidrio.

Lavadora de vidrio horizontal

MAIN SPECIFICATION

◆ Mín. Tamaño del lavado de vidrio: 100 x 400mm

◆ Máx. Ancho de lavado de vidrio: 2500mm

◆ Espesor del lavado de vidrio: 3-19 milímetros

◆ Velocidad de lavado de vidrio: 0 ~ 10 m/min

◆ Cepillo especial: 3 pares/6 piezas, con un cepillo especial para

◆ Cuchillo de aire especial: 3 pares/6 piezas

◆ Soplador de alta presión: 1 unidad/22KW

◆ Tanque de agua SS: con 2 calentadores, 3KW/1pc

◆ Instalación de energía: 32KW

◆ Voltaje: 380 V/50 Hz trifásico

◆ Tamaño: Largo 6300 x Ancho 3600 x Alto 2100 mm

◆ Peso: 3.5 montones

◆ Lavado de vidrio de baja emisividad

Una variedad de tamaños pueden satisfacer las diferentes necesidades de procesamiento de los clientes, contáctenos para obtener más detalles.

consulta

Escribe una reseña

Thông Tin sản phẩm

SANKEN Horizontal High Pressure Wind Glass Washing Machine, is positioned at the highest end of the glass deep-processing industry, we manufactured this type of glass washing machine with the most advanced technology and made by the best materials. SANKEN glass washing machine has the advantages of perfect glass cleaning effect, with high stability, extremely low failure rate, and very much convenient maintenance.

SANKEN Glass Washing Machine is specially designed for glass deep-processing, such as Glass Edging, Glass Tempering Production Line, Laminating Line, IG Insulation Line, Silk-Screen Printing Line, etc.

Specification Drawing

图片1 (10)

图片4 (3)

图片3 (8)

图片2 (9)

이점

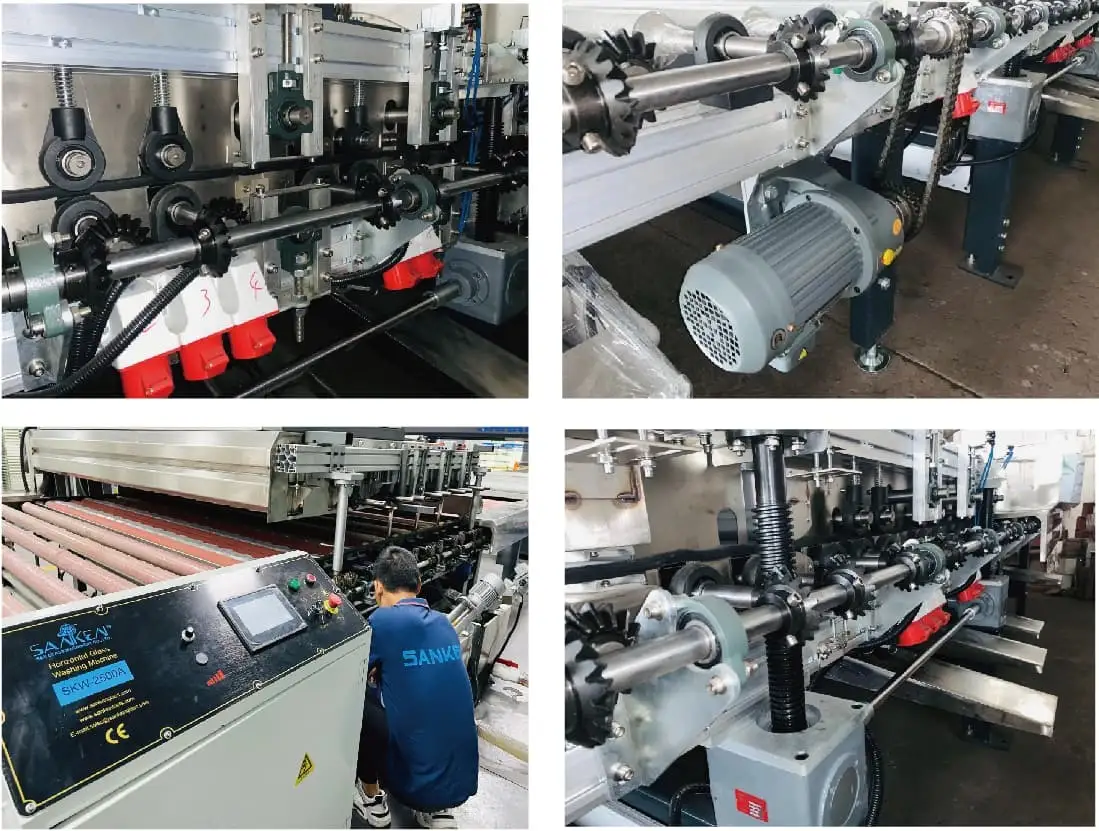

The main parts of the glass washing machine are combined with glass loading section, glass washing section and glass unloading section. The protective cover and structure framework are installed with stainless steel or other special treatment steel, with a special design for LOW-E glass washing. The operation is controlled by industrial grade PLC and touch screen, which is easy to wash different size of glasses.

And SANKEN's glass washing machine a frequency speed control system, the middle glass washing section has a lead screw lifting function which can lift up the whole washing upper section to be max. 250mm for easy maintenance, for example, when we lift up the whole glass washing section, we can easily clean or replace the brushes, it will be very helpful for themaintenance of customers in the future.

응용 프로그램

FAQ

About voltaje

Voltage can be customized

GUARANTEE / WARRANTY

The quality guarantee period for one year, any damages on the electric parts during the quality gaurantee period can be maintained or replaced free, (Except in the course of usage, damage due to human errors), and after guarantee period, SANKEN will continuously give good support and best after-sales service to customer.

About delivery time

30 WORKING DAYS AFTER RECEIVING 30% ADVANCE PAYMENT.

About payment terms

30% SHALL BE PAID BY T/T AS DOWN PAYMENT IN ADVANCE;
70% BALANCE SHALL BE PAID OFF BY T/T BEFORE SHIPMENT.
